Front Axle Hub Bolt: Components

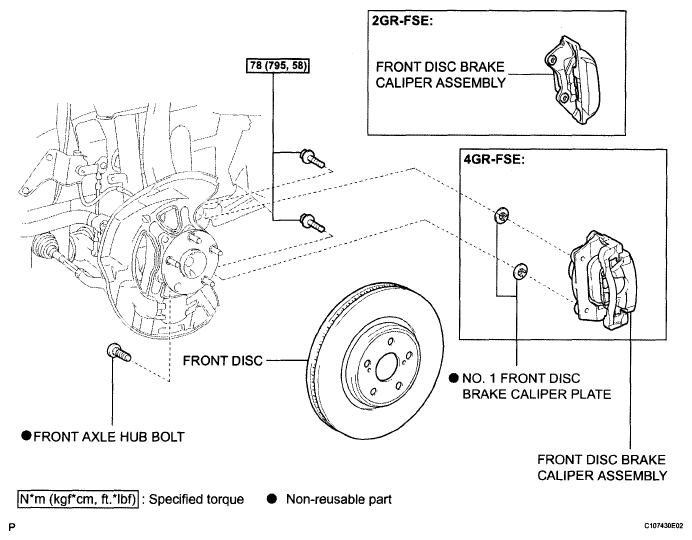

Fig 1: Identifying Front Axle Hub Bolt Replacement Components With Torque Specification

G05830335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
