Inspection Procedure

1. Disconnect the z17 display connector.
2. Disconnect the z16 receiver connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   z17-4 (VV-) - z16-2 (GND)	Below 1 Ω
   Z17-1 (VV+) -Z16-1 (NTSC)	Below 1 Ω
   z17-4 (VV-) - Body ground	10 kΩ or higher
   z17-1 (VV+) - Body ground	10 kΩ or higher
   z16-3 (SLD) - Body ground	10 kΩ or higher

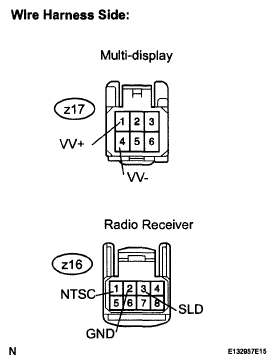

Fig 1: Identifying Z17 Multi-Display And Z16 Radio Receiver Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN  PROBLEM SYMPTOMS TABLE
