OEM System Circuits (1 Of 4): Taillight: Notes

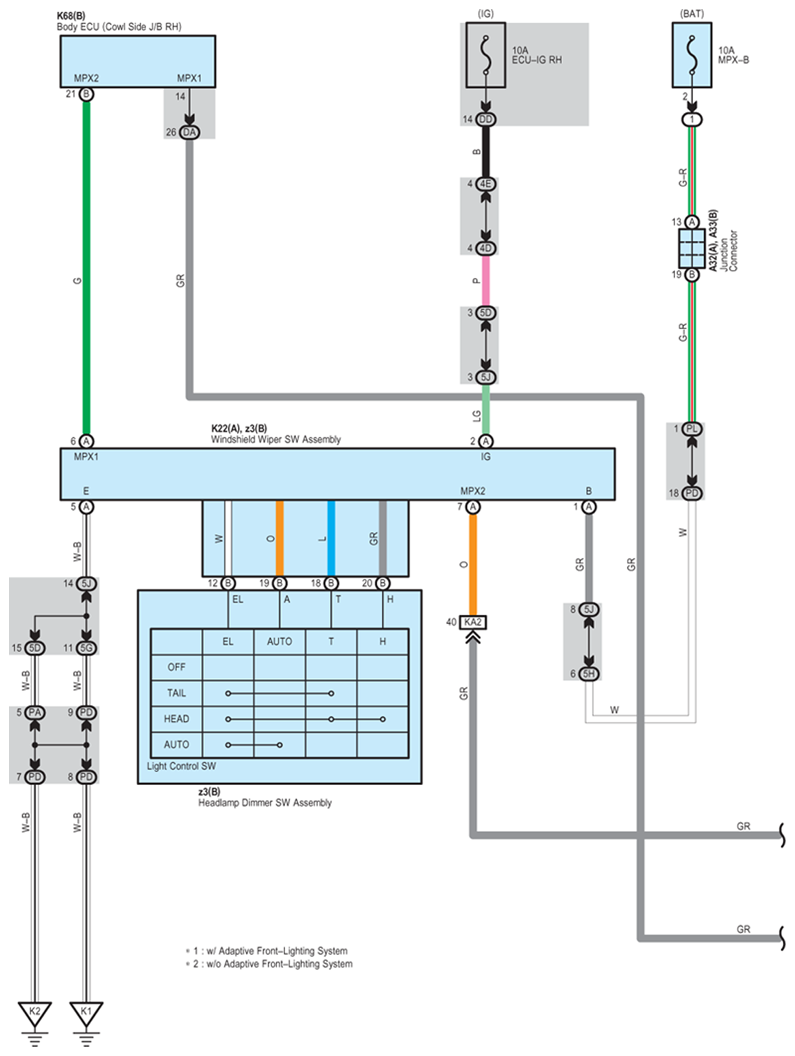

Fig 1: Taillight - Circuit Diagram (1 Of 7)

G07613053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

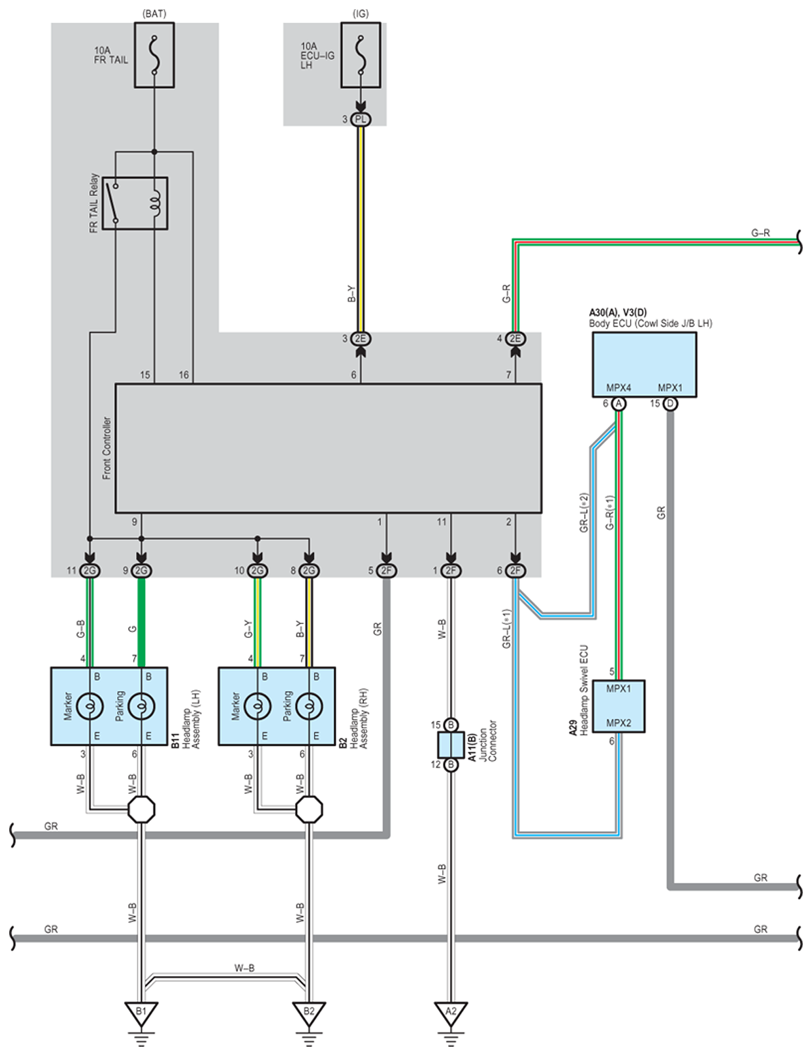

Fig 2: Taillight - Circuit Diagram (2 Of 7)

G07613054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

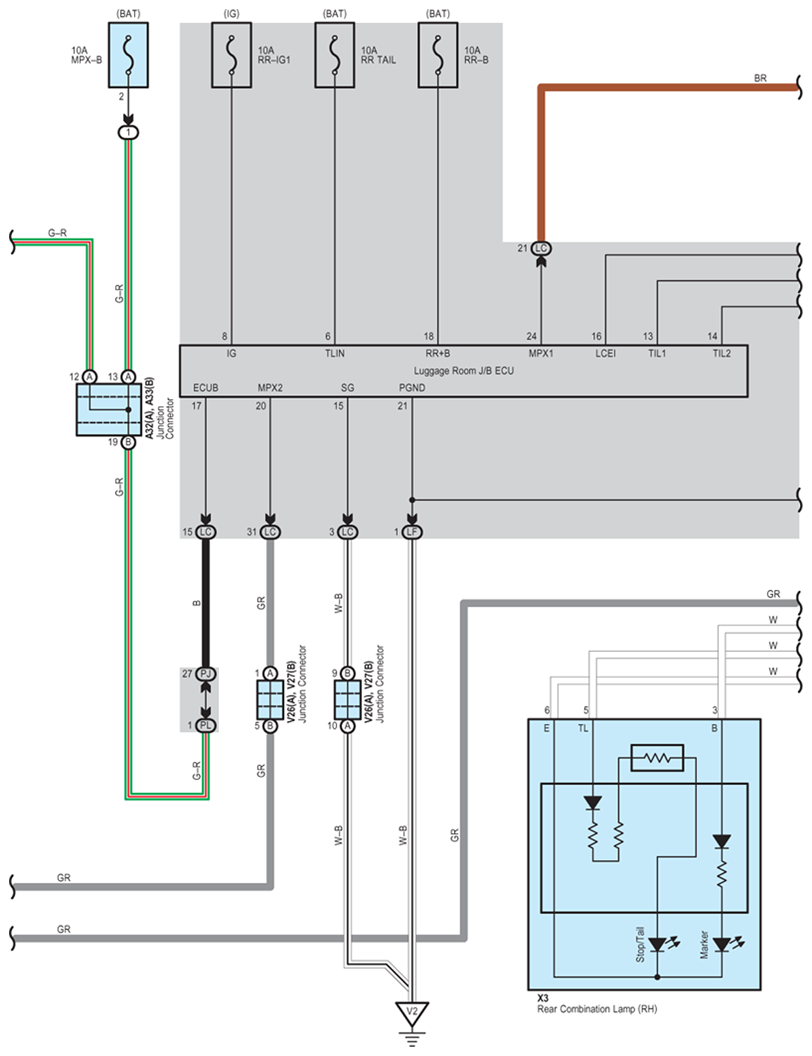

Fig 3: Taillight - Circuit Diagram (3 Of 7)

G07613055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

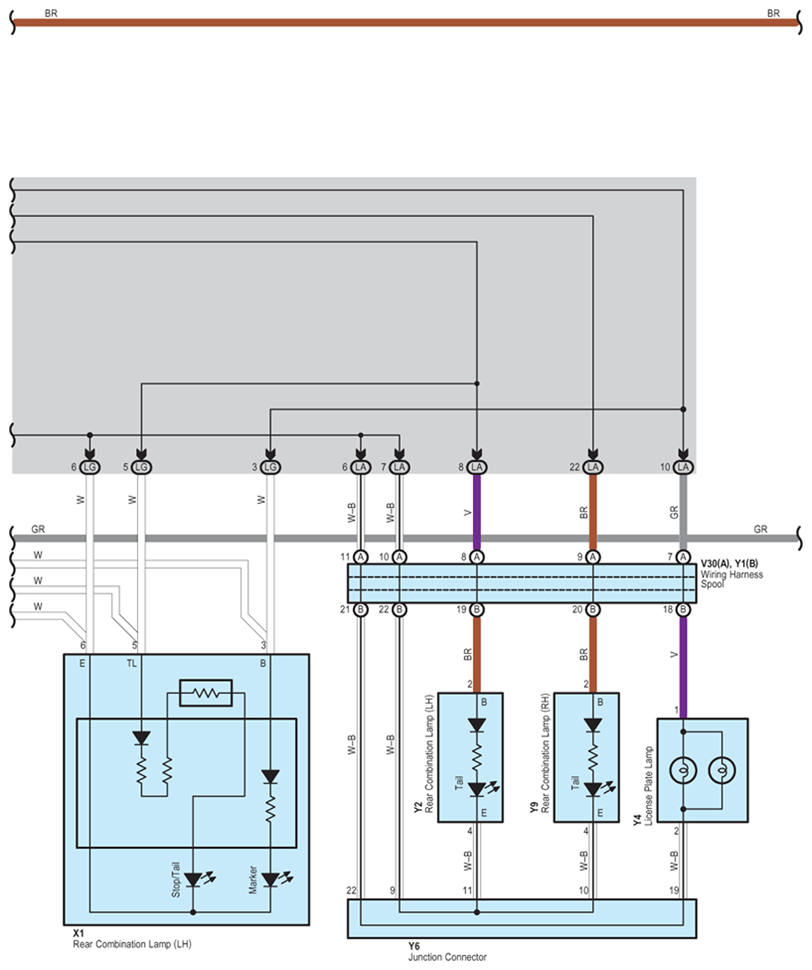

Fig 4: Taillight - Circuit Diagram (4 Of 7)

G07613056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

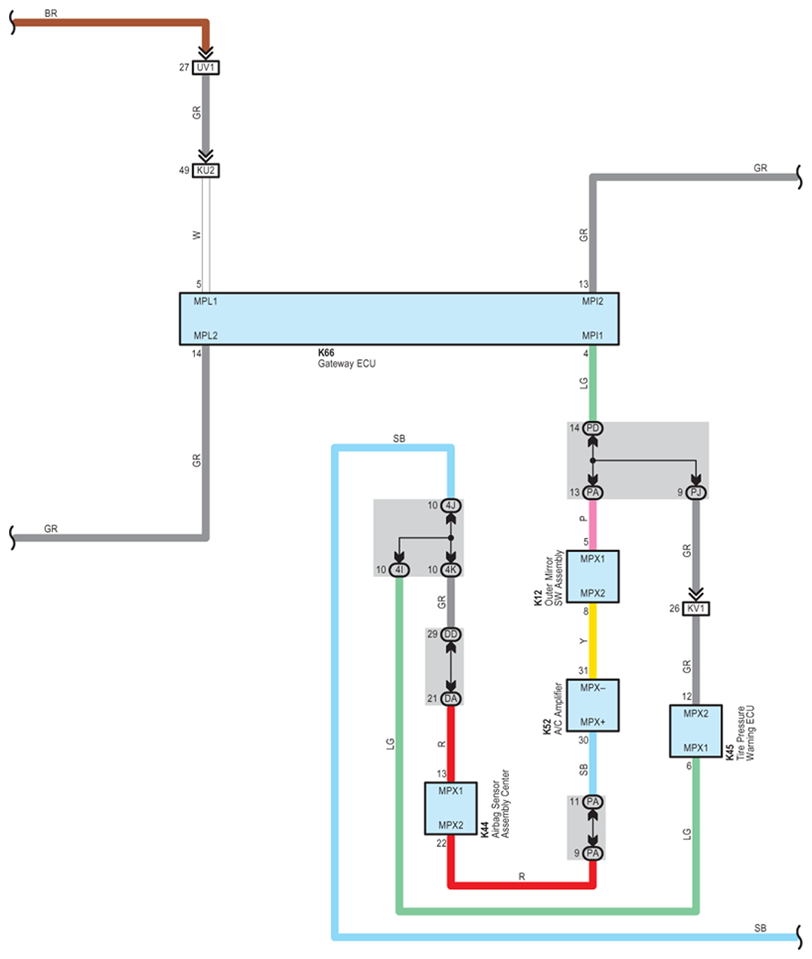

Fig 5: Taillight - Circuit Diagram (5 Of 7)

G07613057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

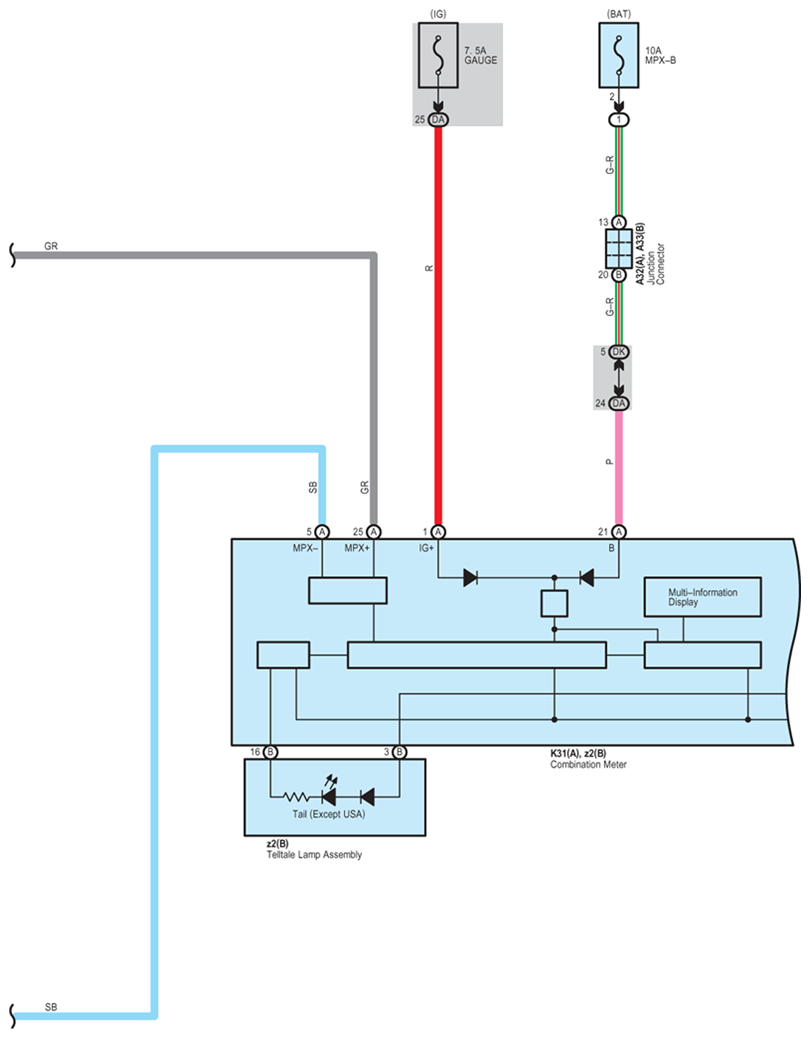

Fig 6: Taillight - Circuit Diagram (6 Of 7)

G07613058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

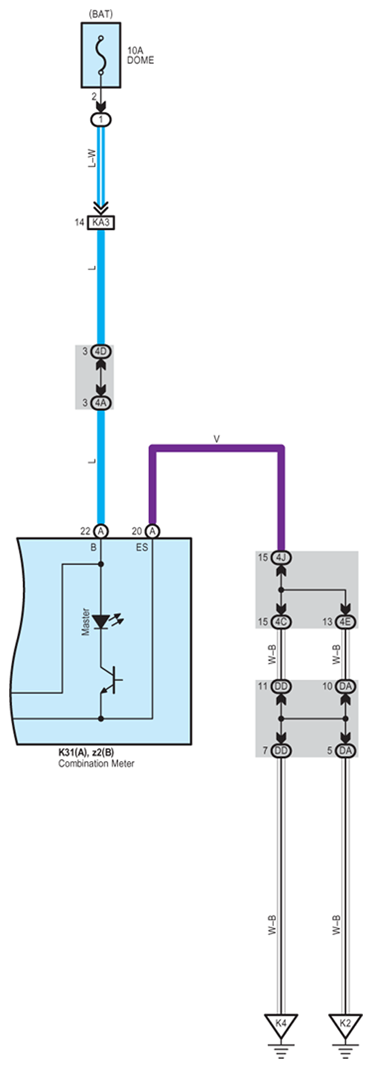

Fig 7: Taillight - Circuit Diagram (7 Of 7)

G07613059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
