OEM System Circuits (1 Of 4): Headlight: Notes

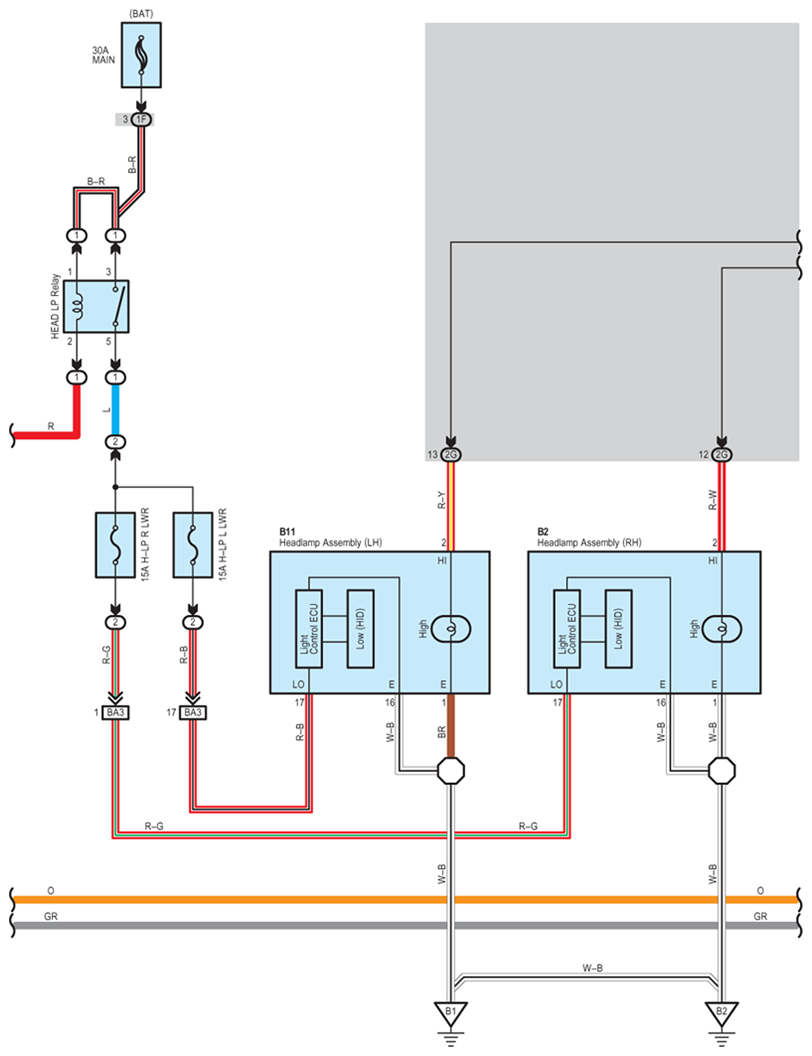

Fig 1: Headlight - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

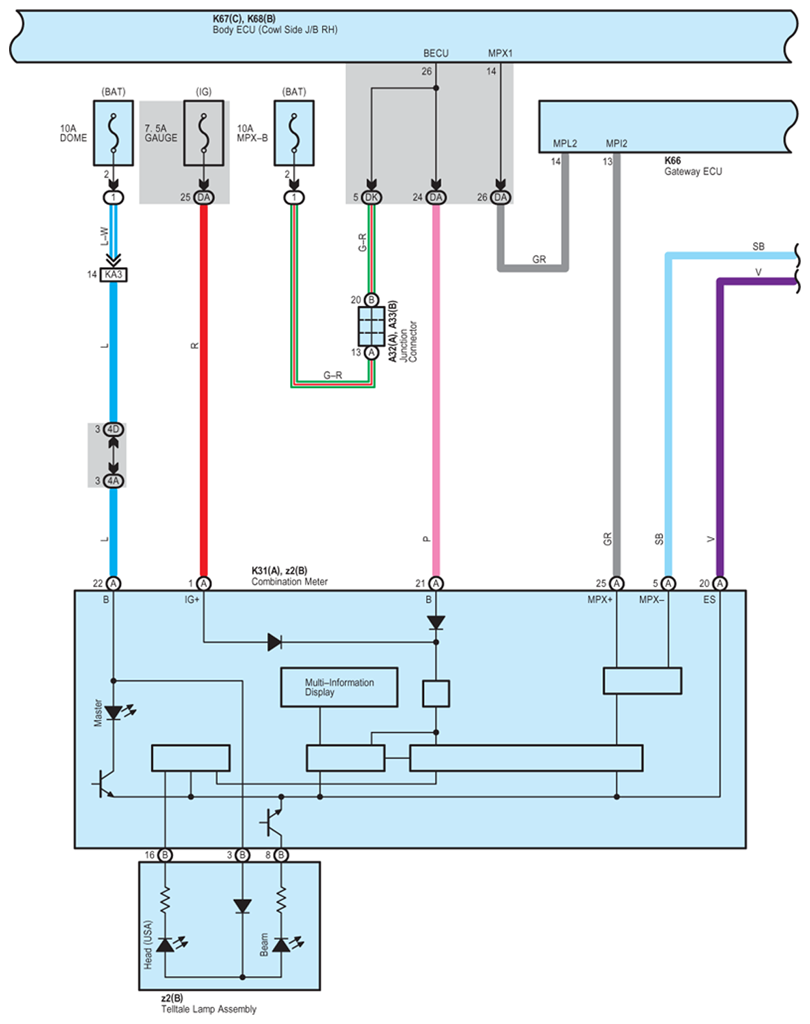

Fig 2: Headlight - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

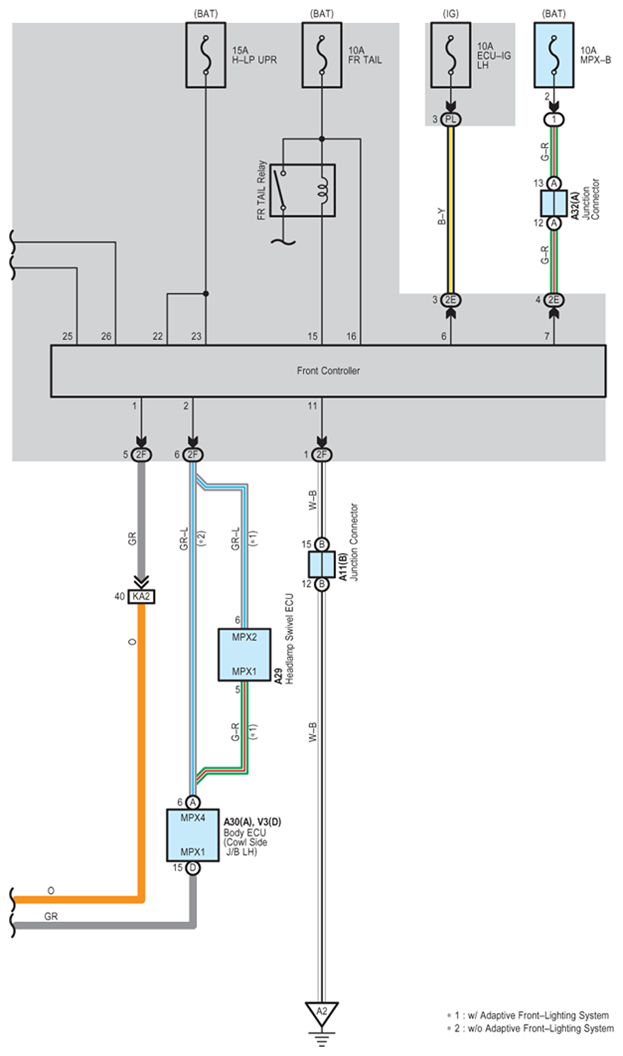

Fig 3: Headlight - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

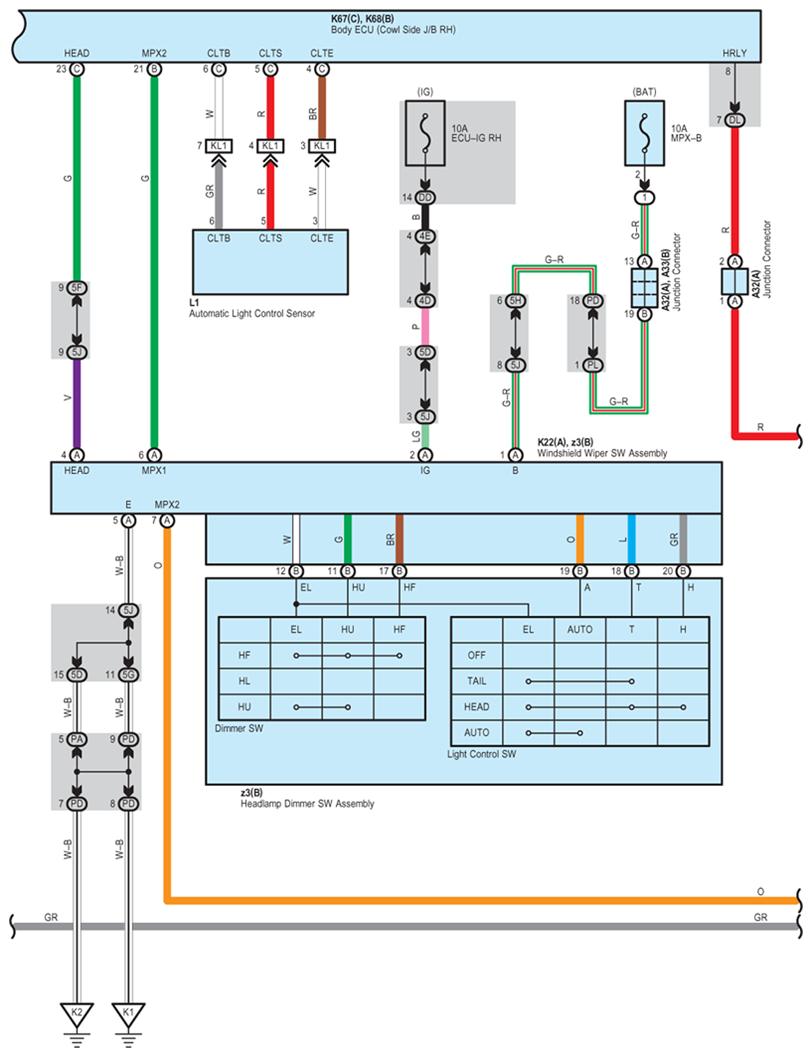

Fig 4: Headlight - Circuit Diagram (4 Of 6)

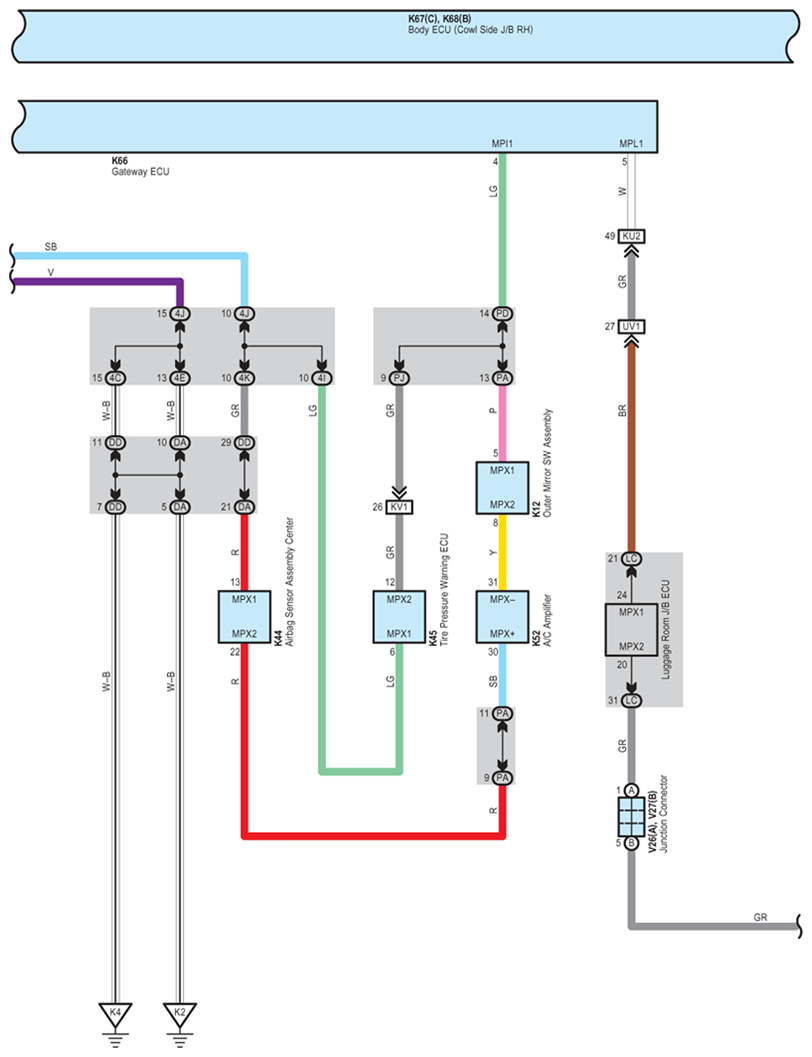

Fig 5: Headlight - Circuit Diagram (5 Of 6)

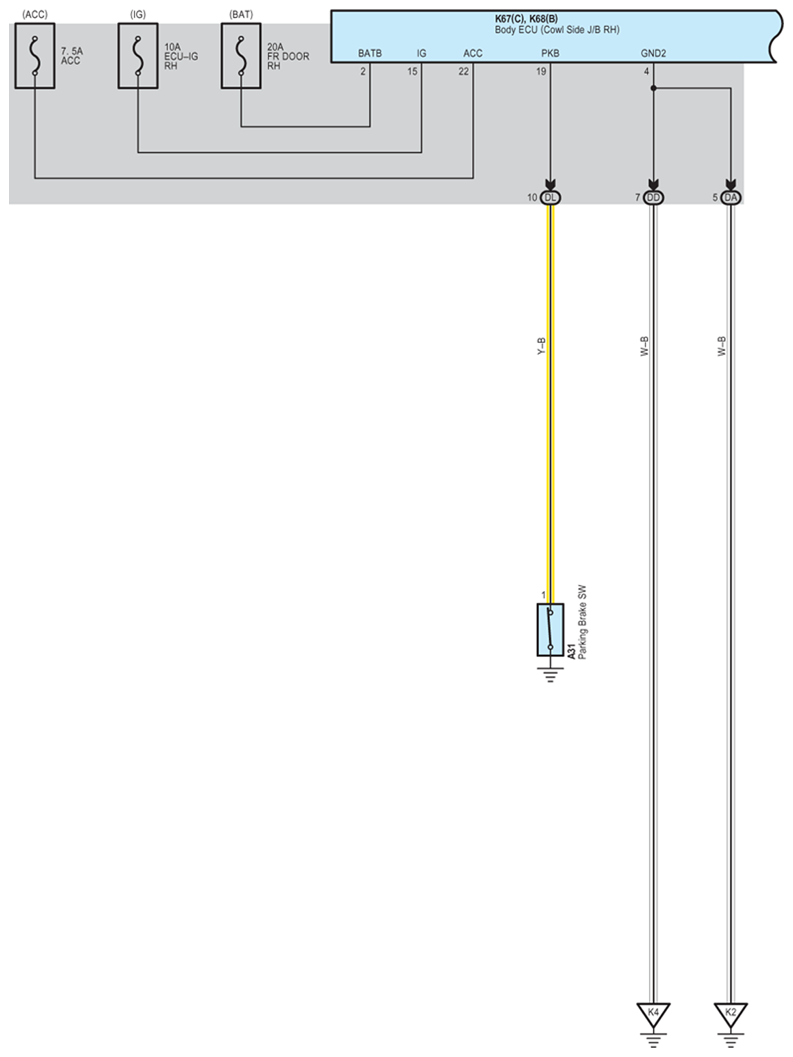

Fig 6: Headlight - Circuit Diagram (6 Of 6)
