Engine Control for 2GR-FSE: Notes

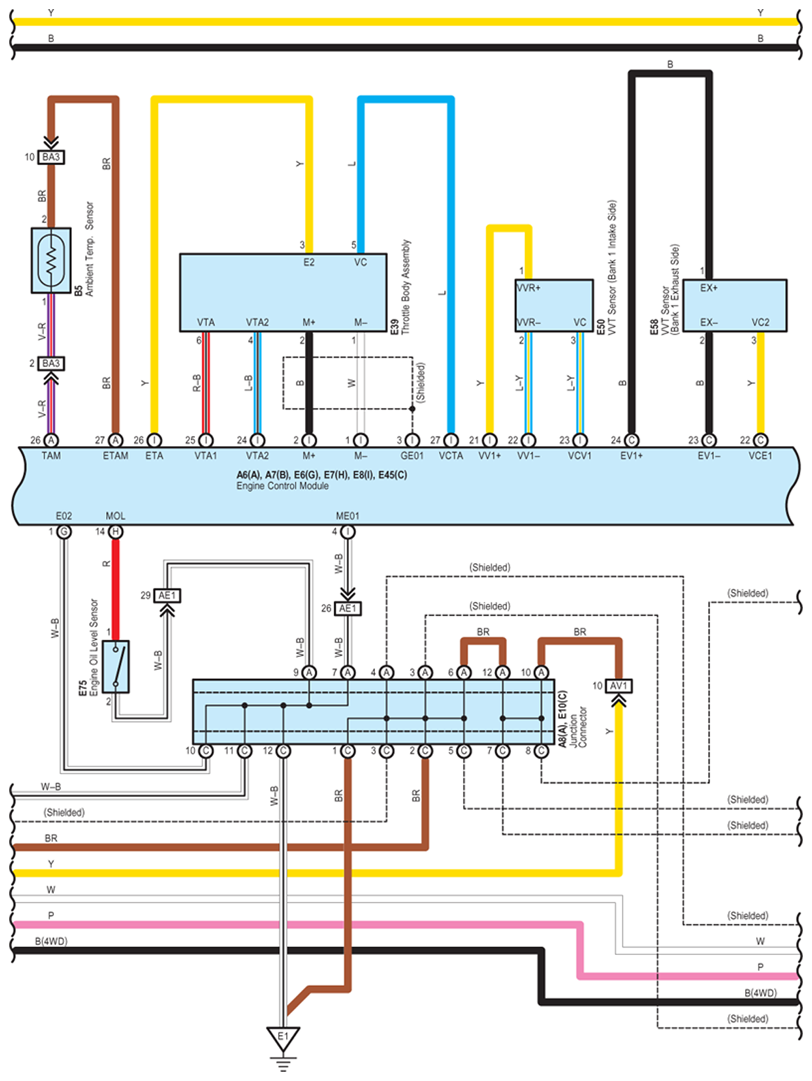

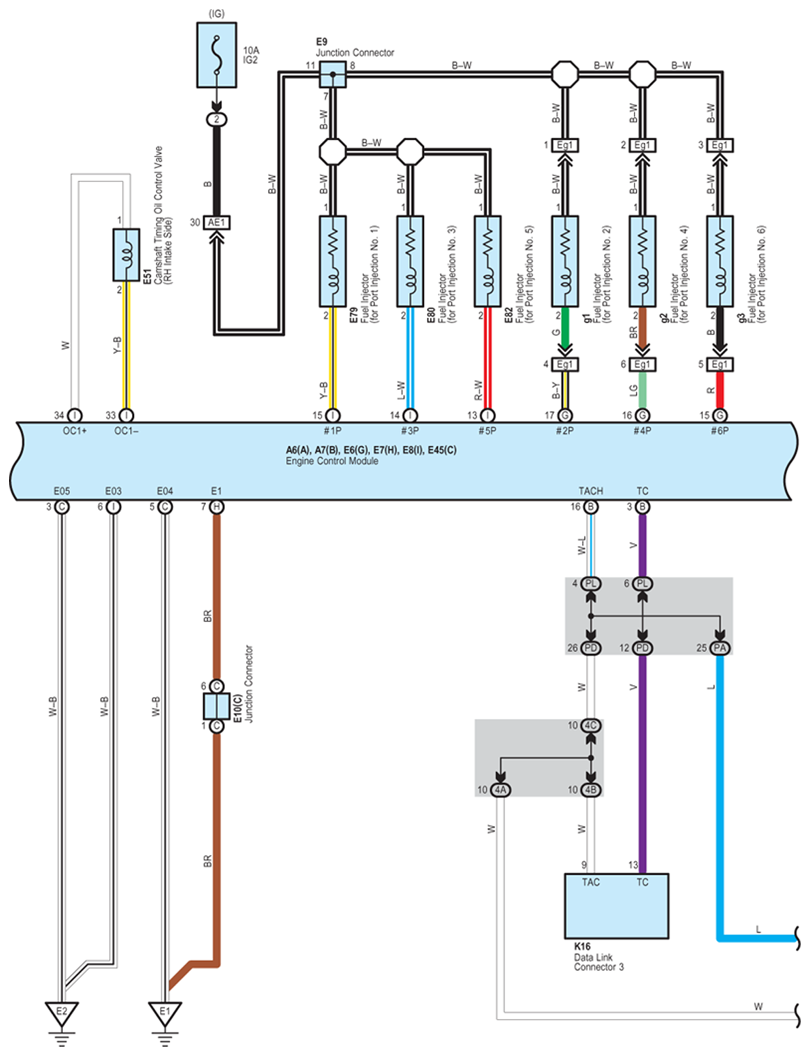

Fig 1: Engine Control For 2GR-FSE - Circuit Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

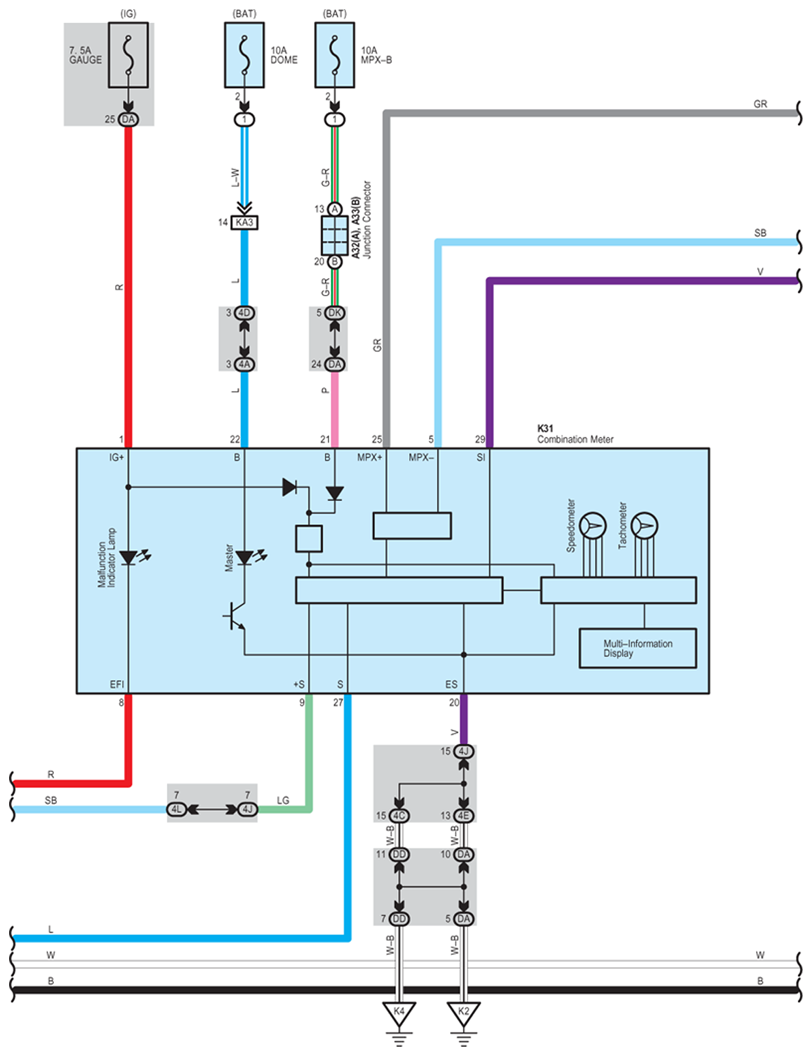

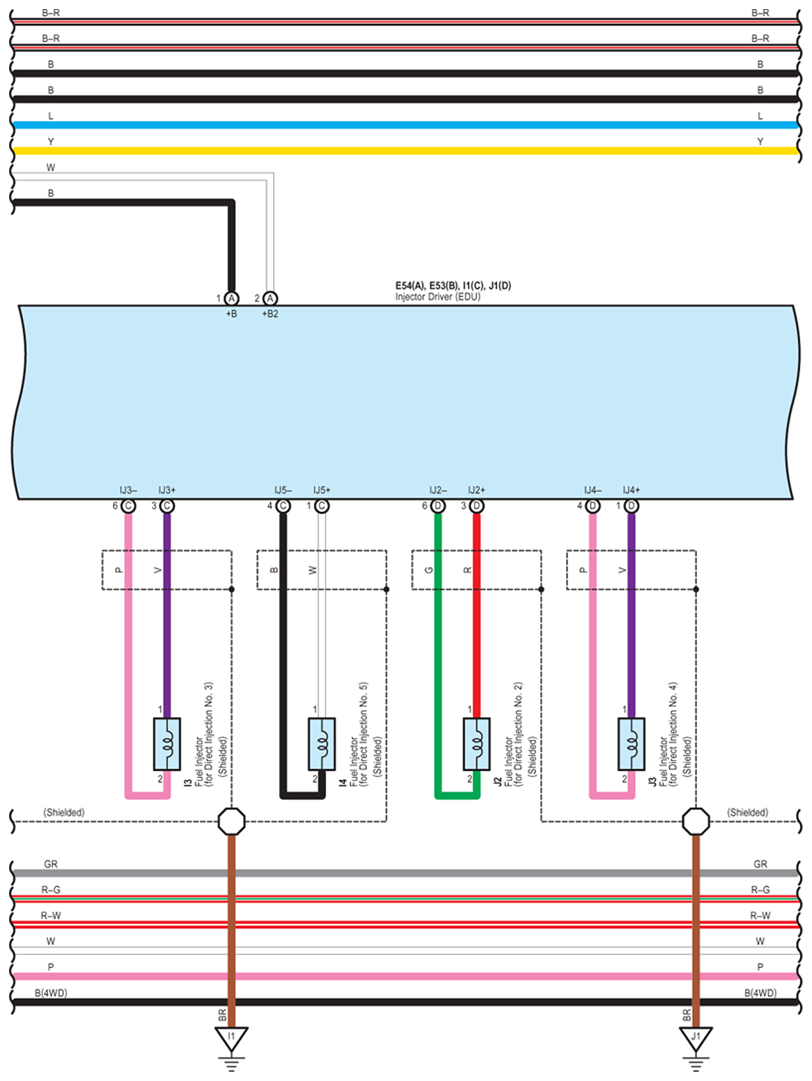

Fig 2: Engine Control For 2GR-FSE - Circuit Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

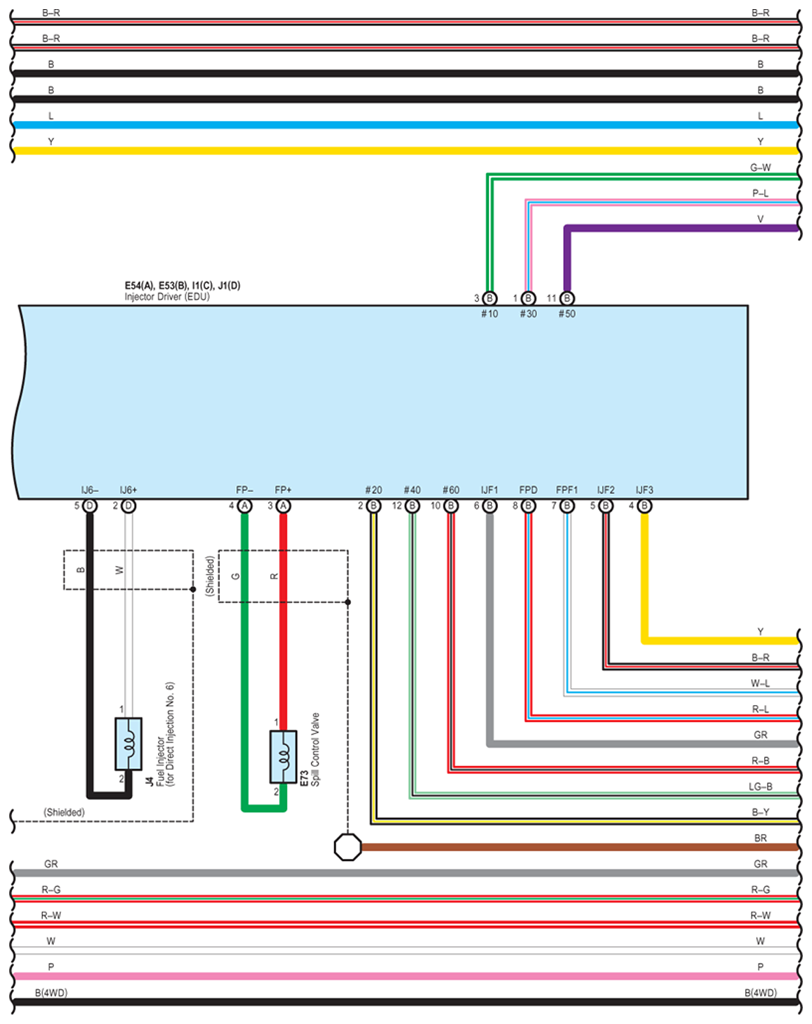

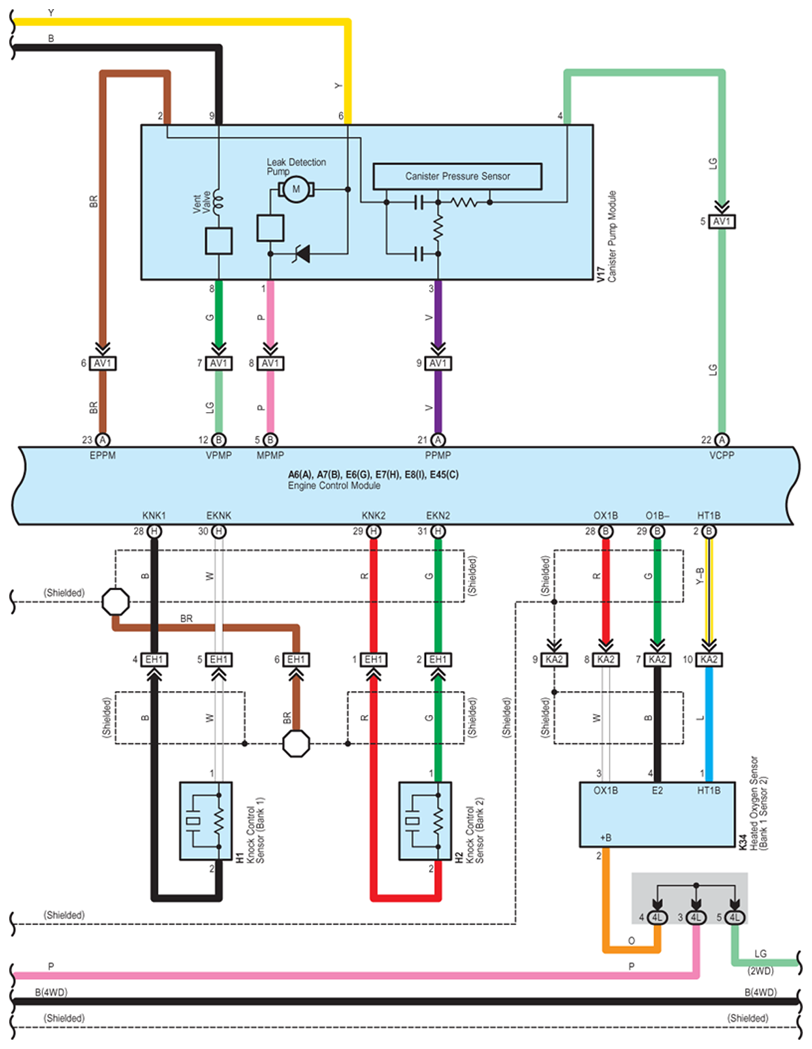

Fig 3: Engine Control For 2GR-FSE - Circuit Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

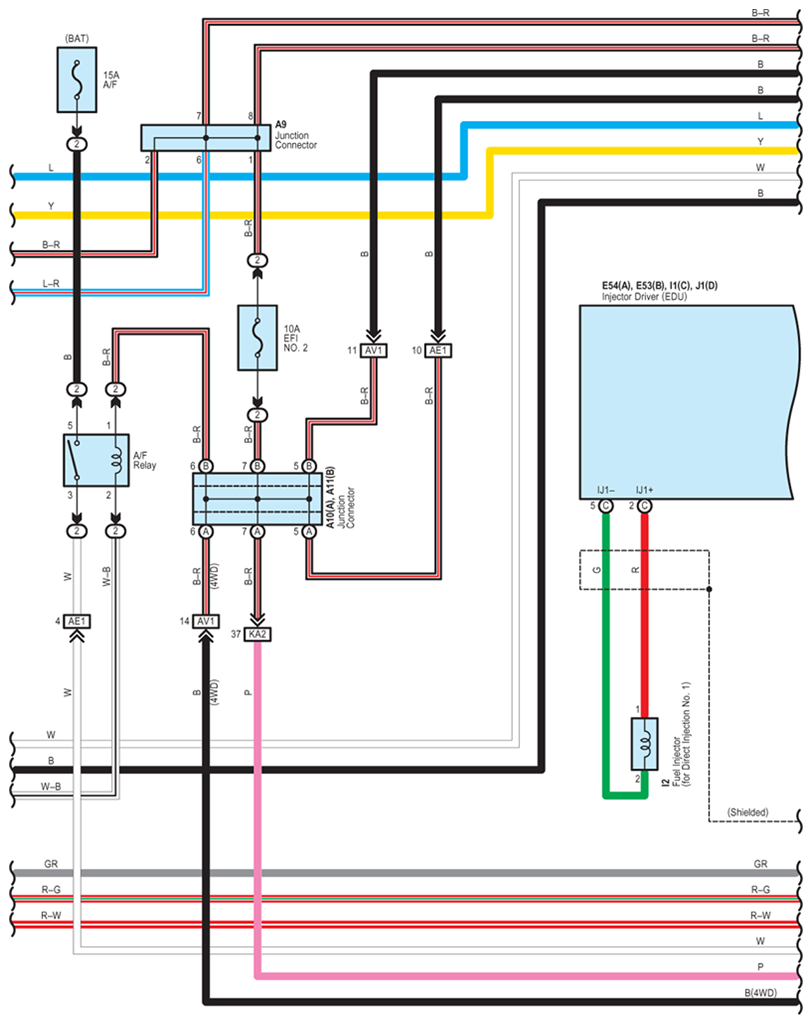

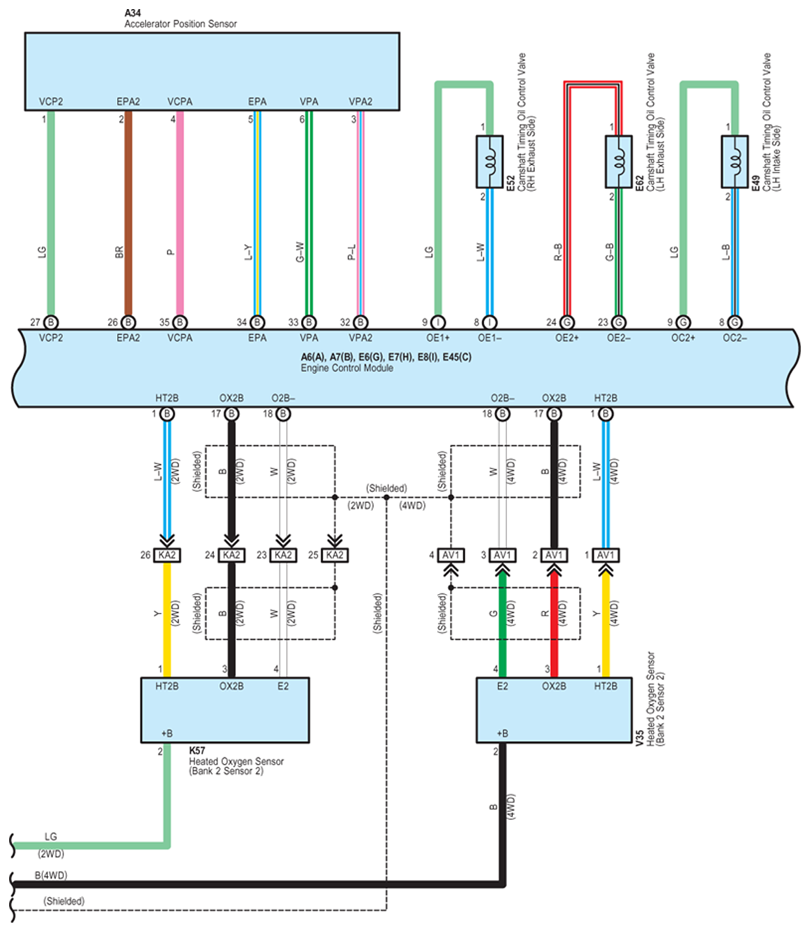

Fig 4: Engine Control For 2GR-FSE - Circuit Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

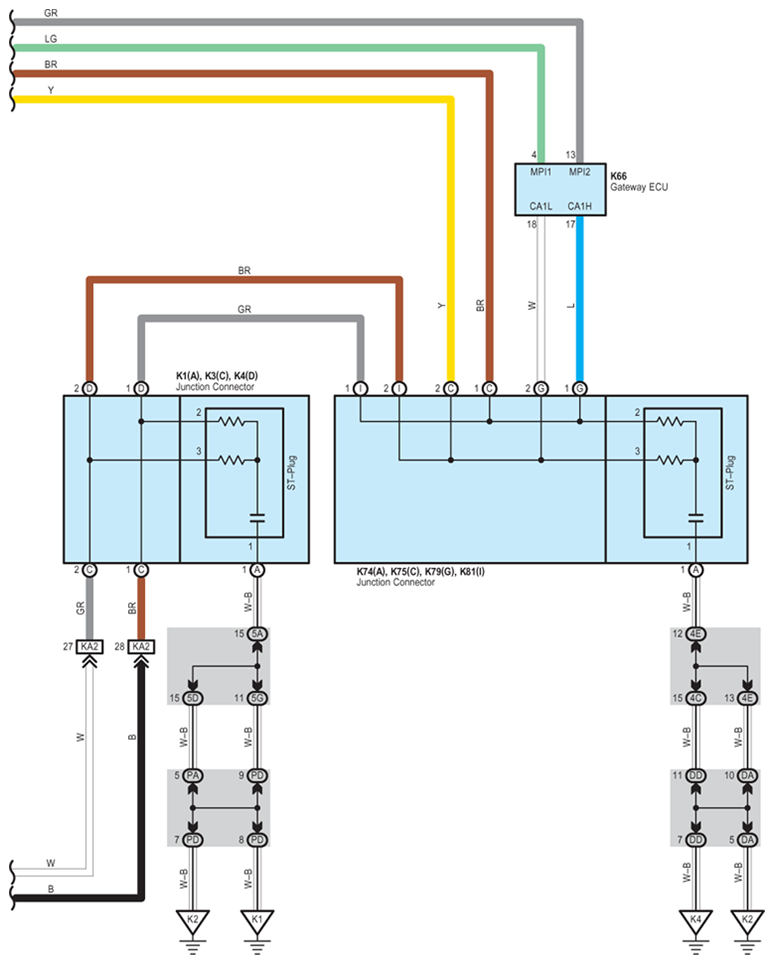

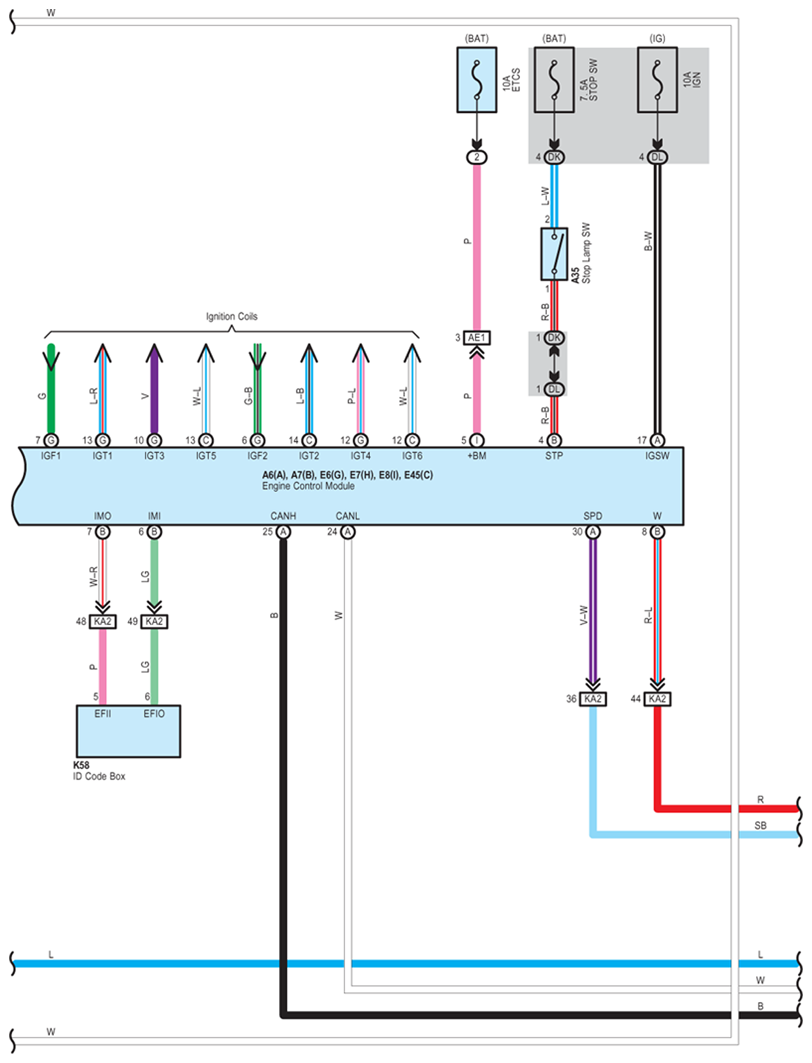

Fig 5: Engine Control For 2GR-FSE - Circuit Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

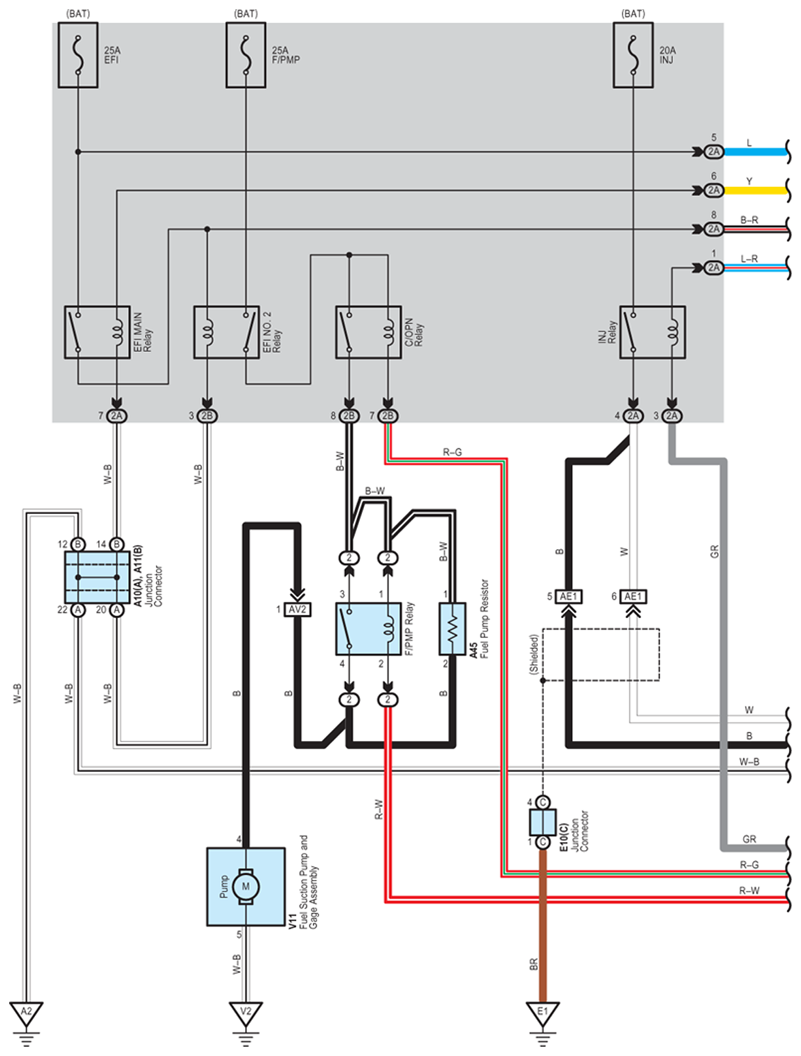

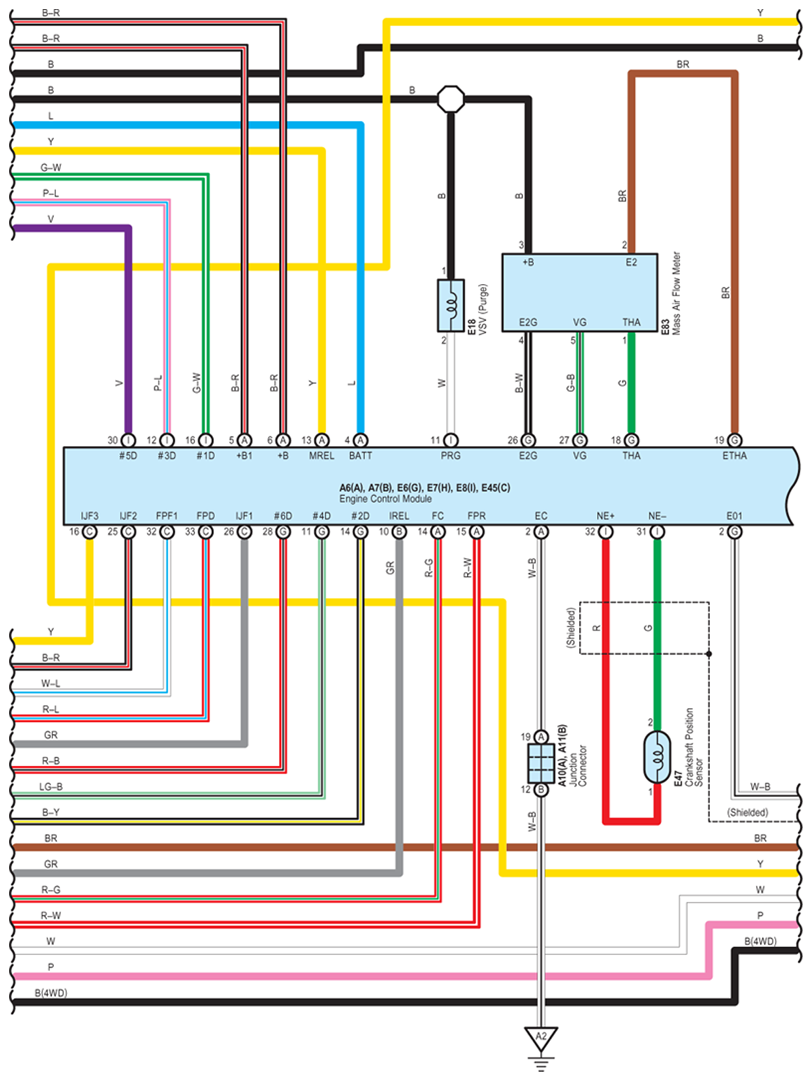

Fig 6: Engine Control For 2GR-FSE - Circuit Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

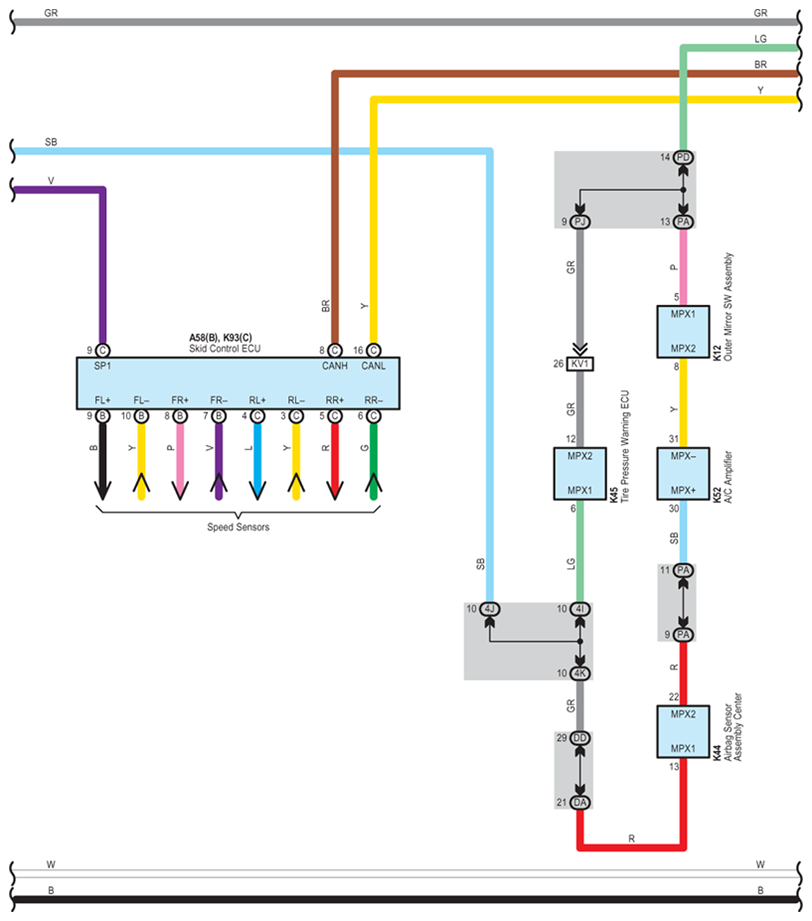

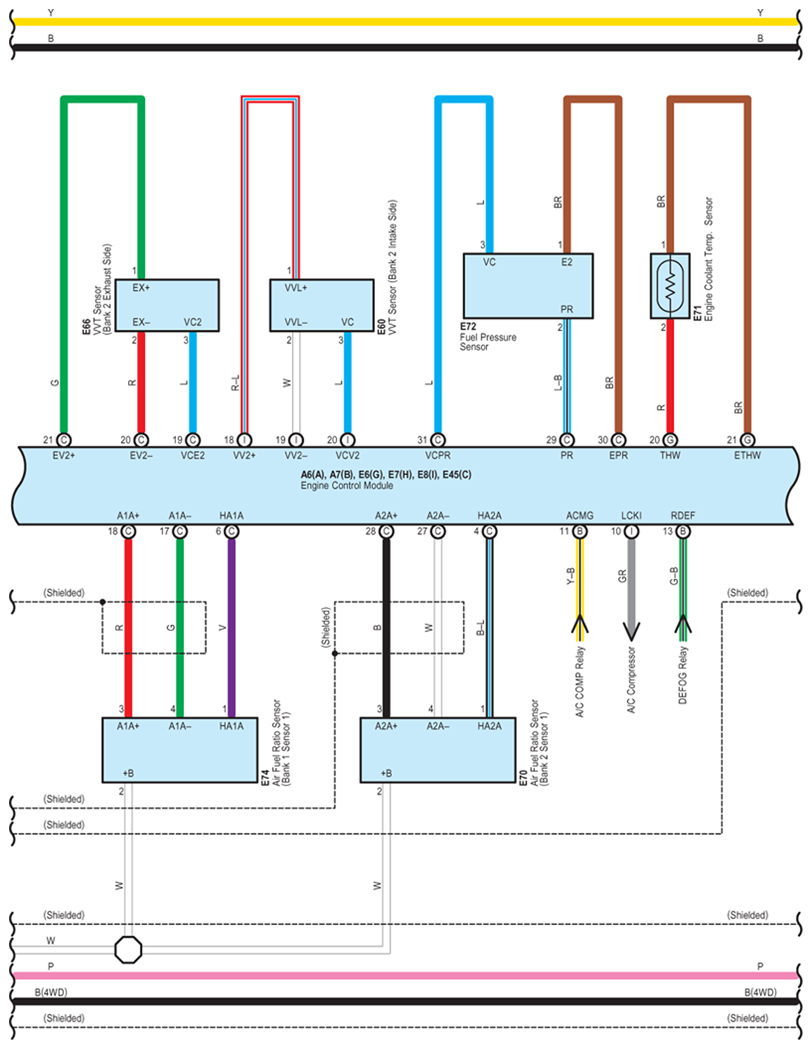

Fig 7: Engine Control For 2GR-FSE - Circuit Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

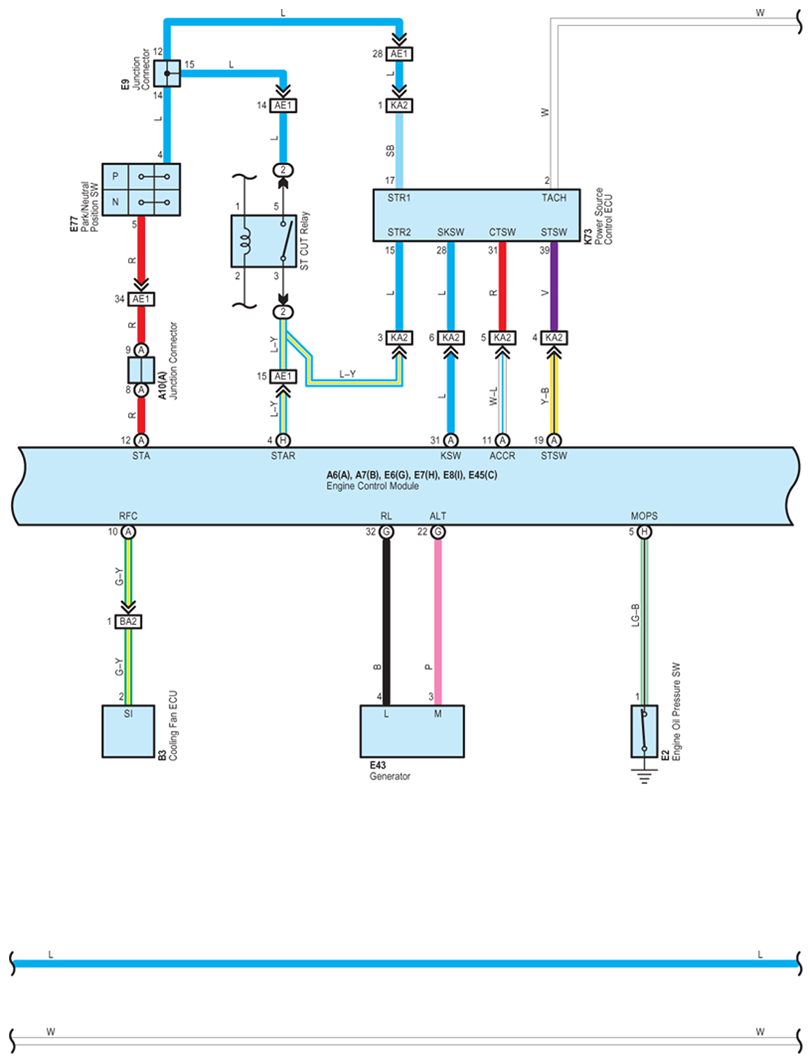

Fig 8: Engine Control For 2GR-FSE - Circuit Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Control For 2GR-FSE - Circuit Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Control For 2GR-FSE - Circuit Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Control For 2GR-FSE - Circuit Diagram (11 Of 15)

Fig 12: Engine Control For 2GR-FSE - Circuit Diagram (12 Of 15)

Fig 13: Engine Control For 2GR-FSE - Circuit Diagram (13 Of 15)

Fig 14: Engine Control For 2GR-FSE - Circuit Diagram (14 Of 15)

Fig 15: Engine Control For 2GR-FSE - Circuit Diagram (15 Of 15)
