Engine Control for 1UR-FSE: Notes

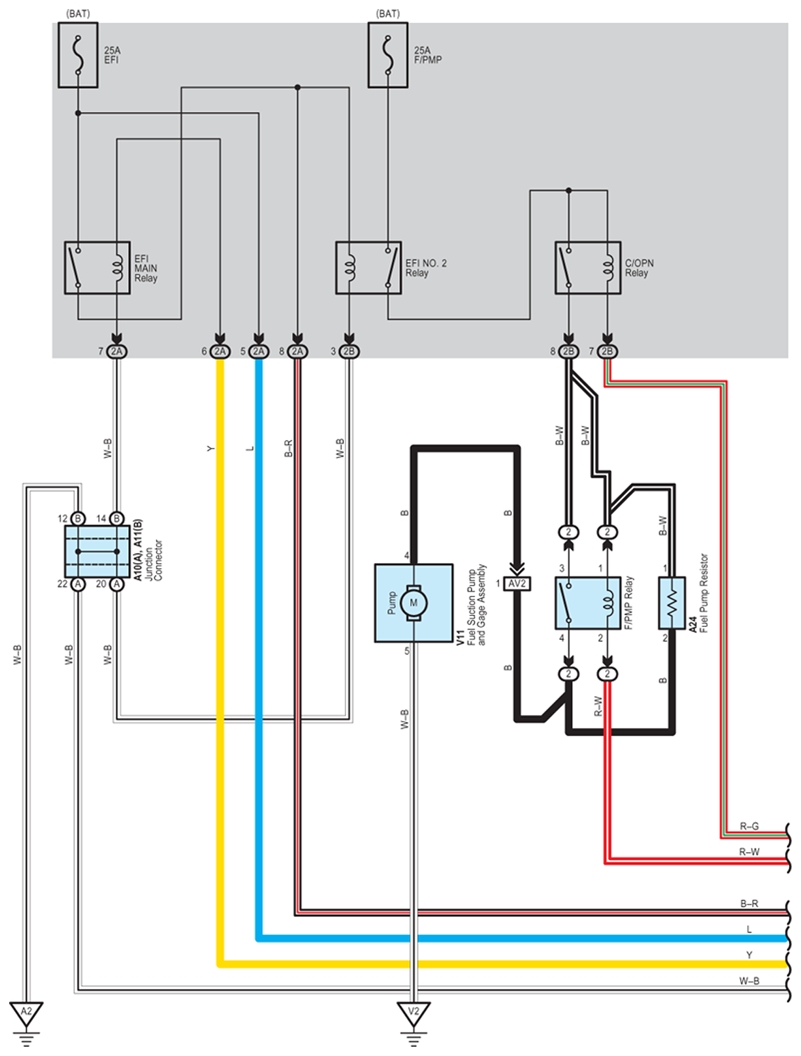

Fig 1: Engine Control For 1UR-FSE - Circuit Diagram (1 Of 28)

G07612962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

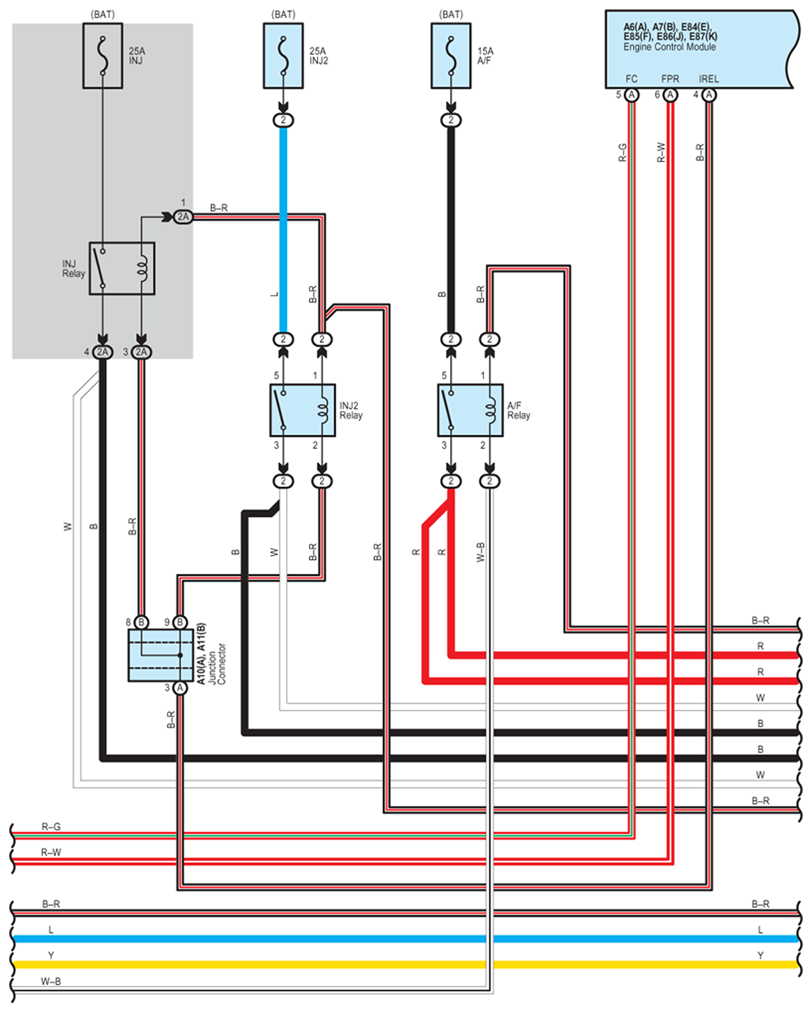

Fig 2: Engine Control For 1UR-FSE - Circuit Diagram (2 Of 28)

G07612963

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

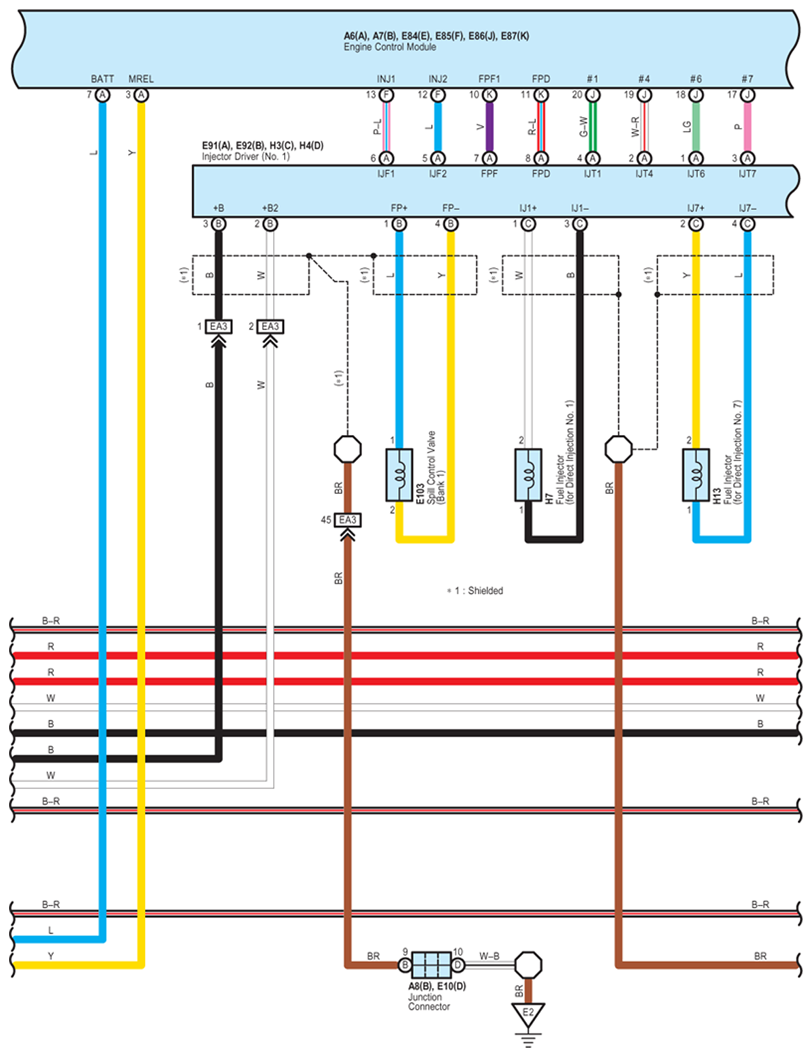

Fig 3: Engine Control For 1UR-FSE - Circuit Diagram (3 Of 28)

G07612964

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

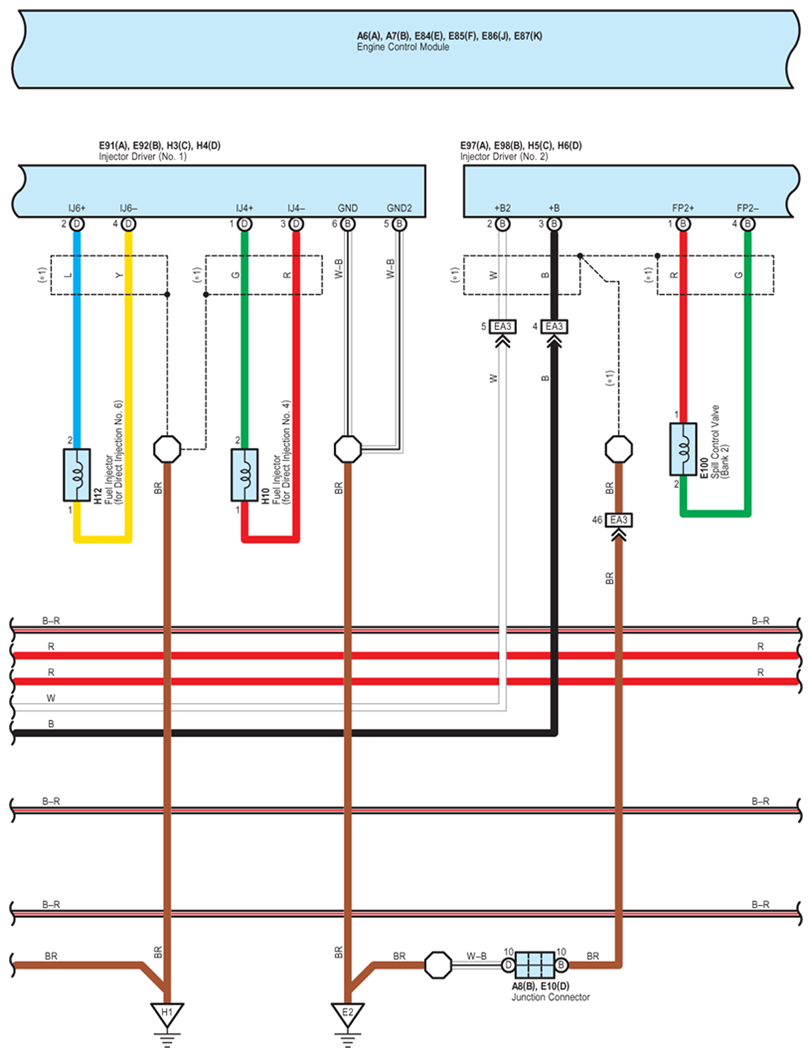

Fig 4: Engine Control For 1UR-FSE - Circuit Diagram (4 Of 28)

G07612965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

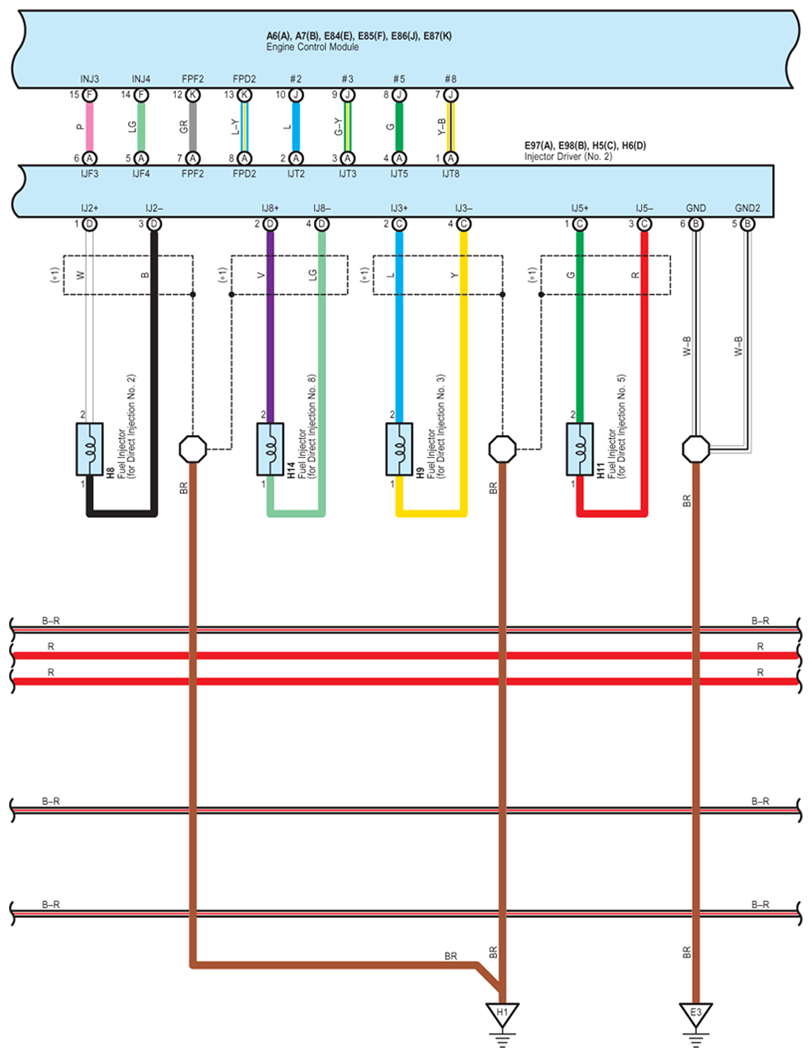

Fig 5: Engine Control For 1UR-FSE - Circuit Diagram (5 Of 28)

G07612966

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

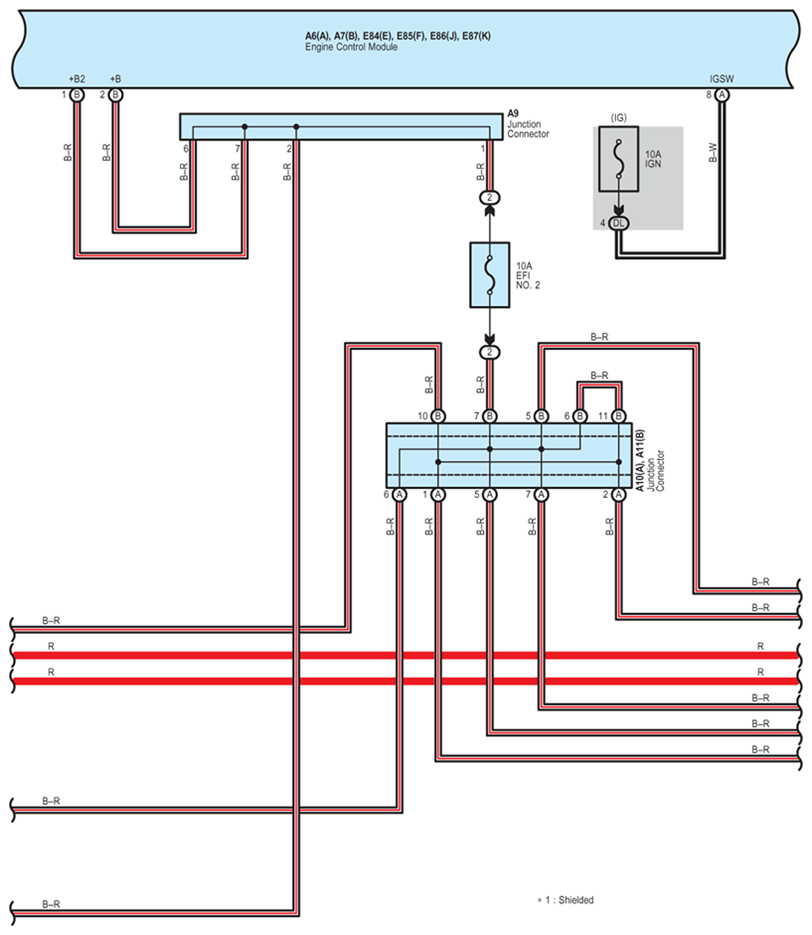

Fig 6: Engine Control For 1UR-FSE - Circuit Diagram (6 Of 28)

G07612967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

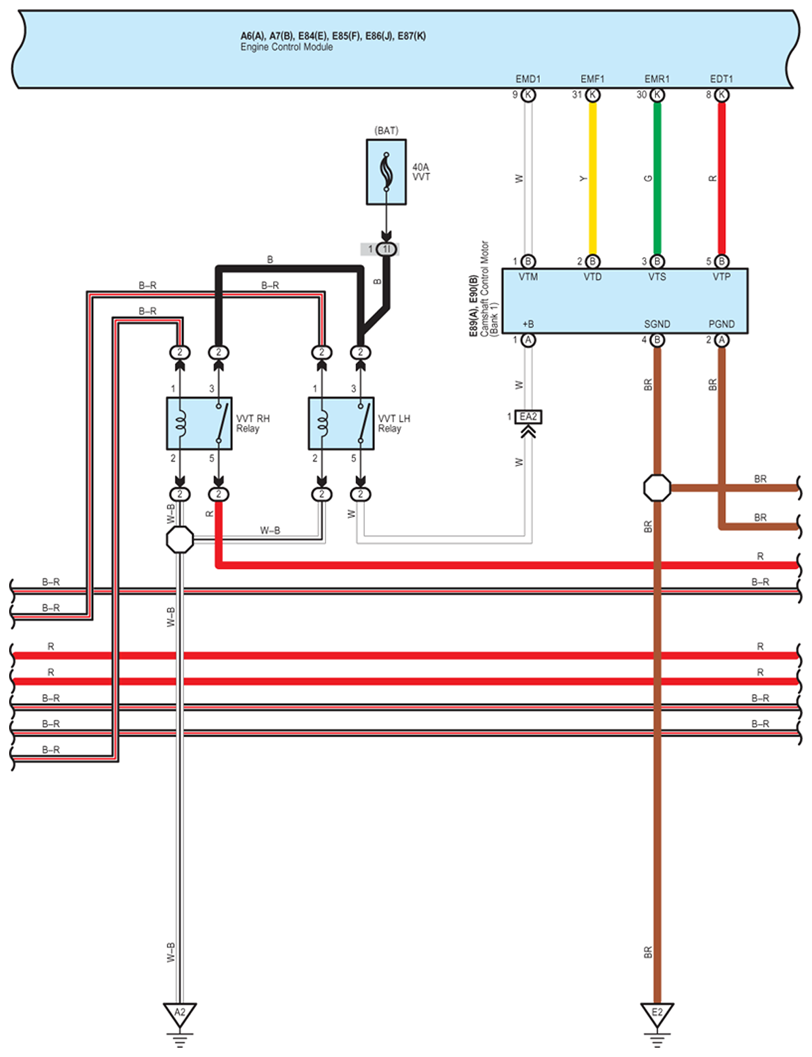

Fig 7: Engine Control For 1UR-FSE - Circuit Diagram (7 Of 28)

G07612968

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

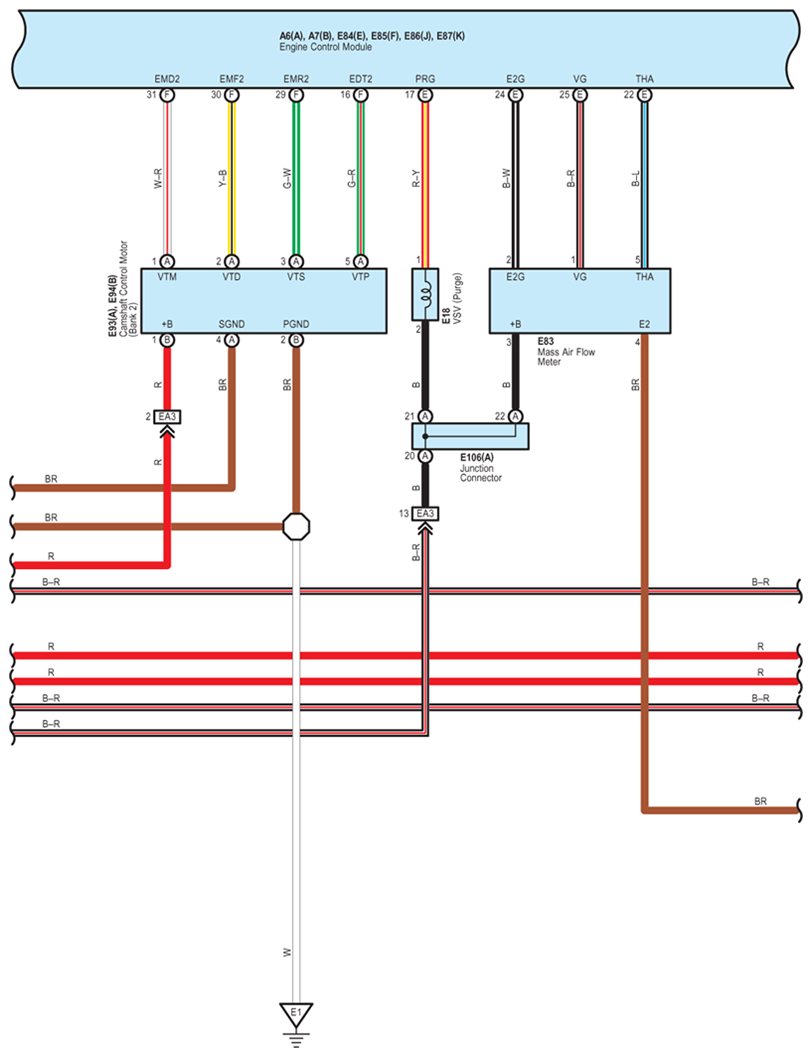

Fig 8: Engine Control For 1UR-FSE - Circuit Diagram (8 Of 28)

G07612969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

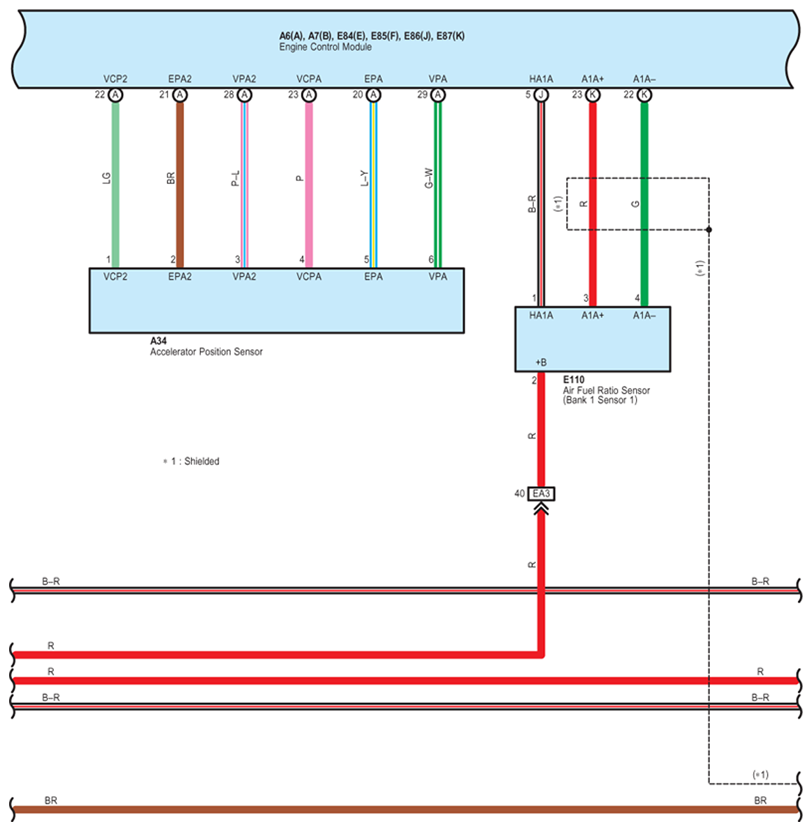

Fig 9: Engine Control For 1UR-FSE - Circuit Diagram (9 Of 28)

G07612970

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

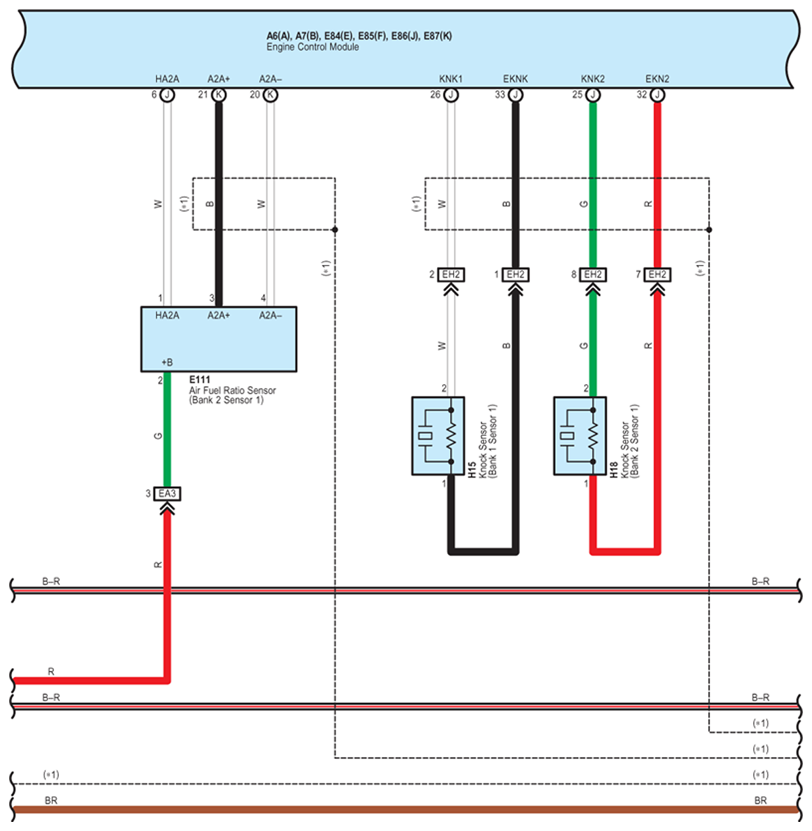

Fig 10: Engine Control For 1UR-FSE - Circuit Diagram (10 Of 28)

G07612971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

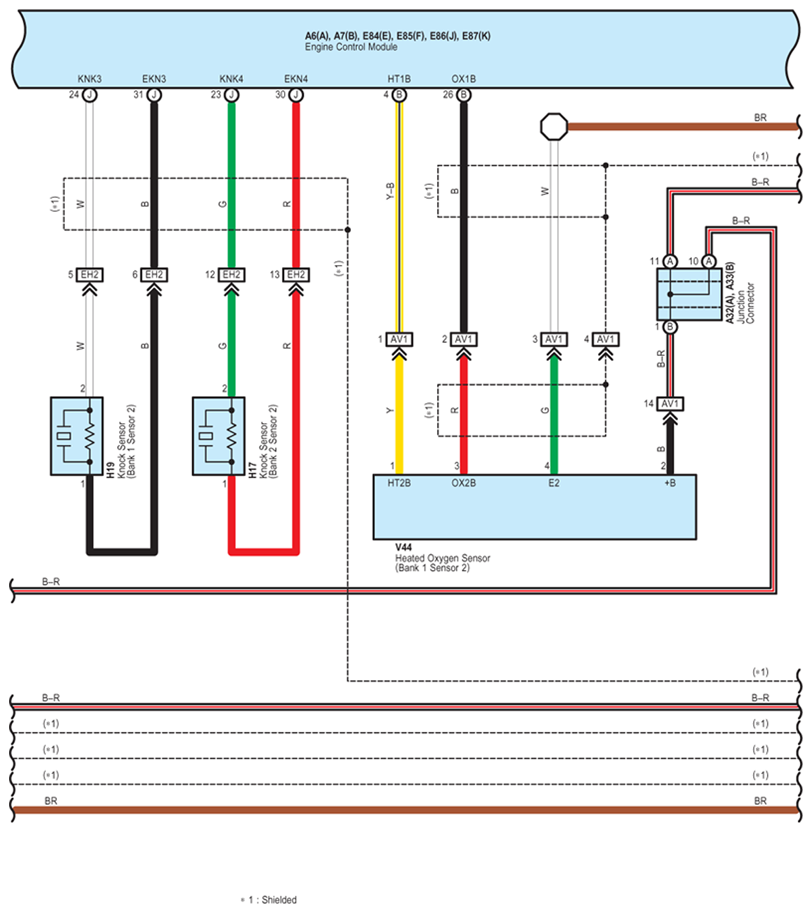

Fig 11: Engine Control For 1UR-FSE - Circuit Diagram (11 Of 28)

G07612972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

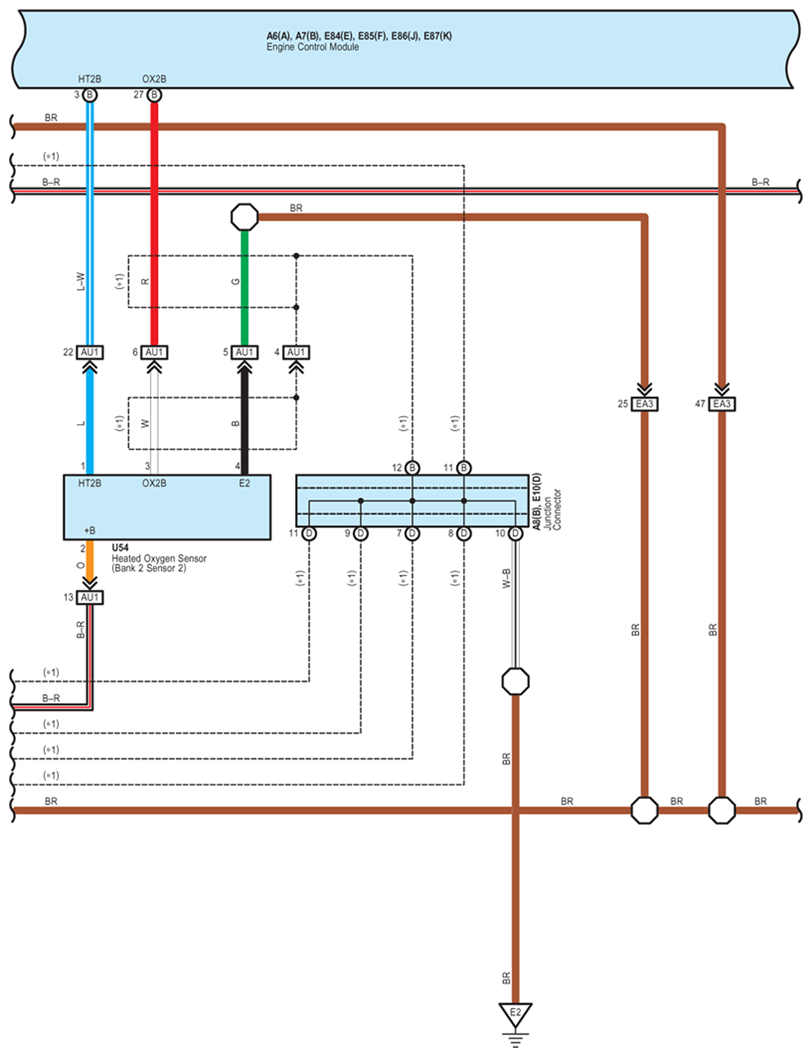

Fig 12: Engine Control For 1UR-FSE - Circuit Diagram (12 Of 28)

G07612973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

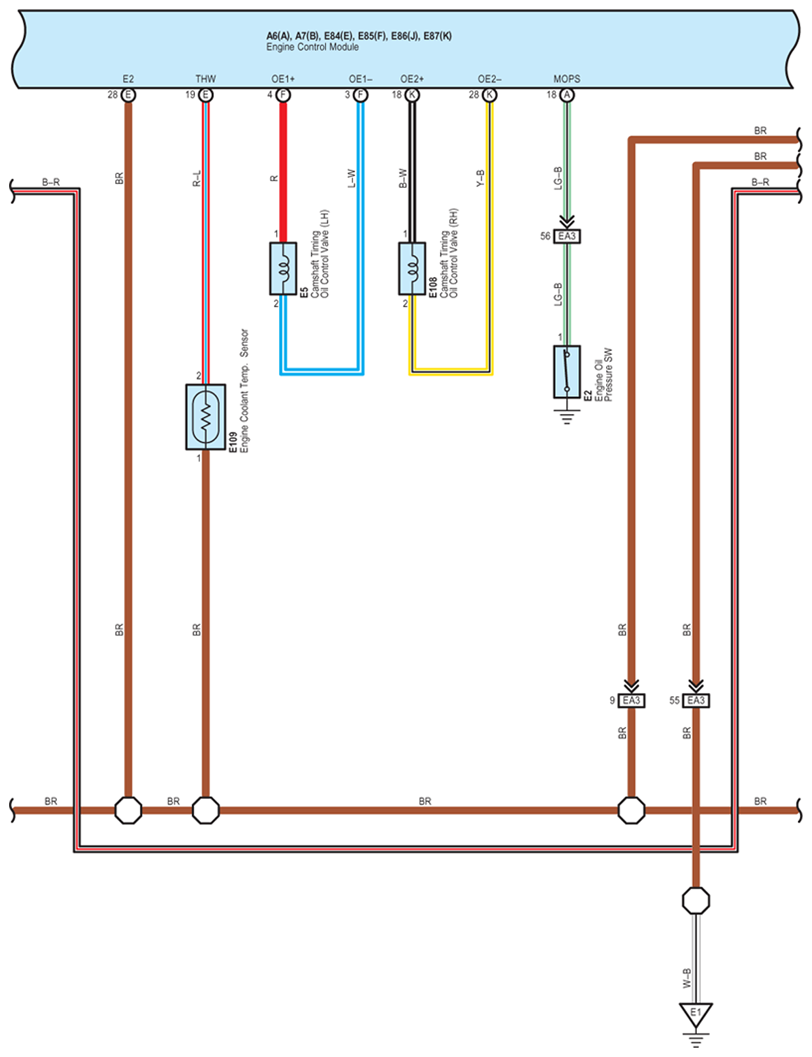

Fig 13: Engine Control For 1UR-FSE - Circuit Diagram (13 Of 28)

G07612974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

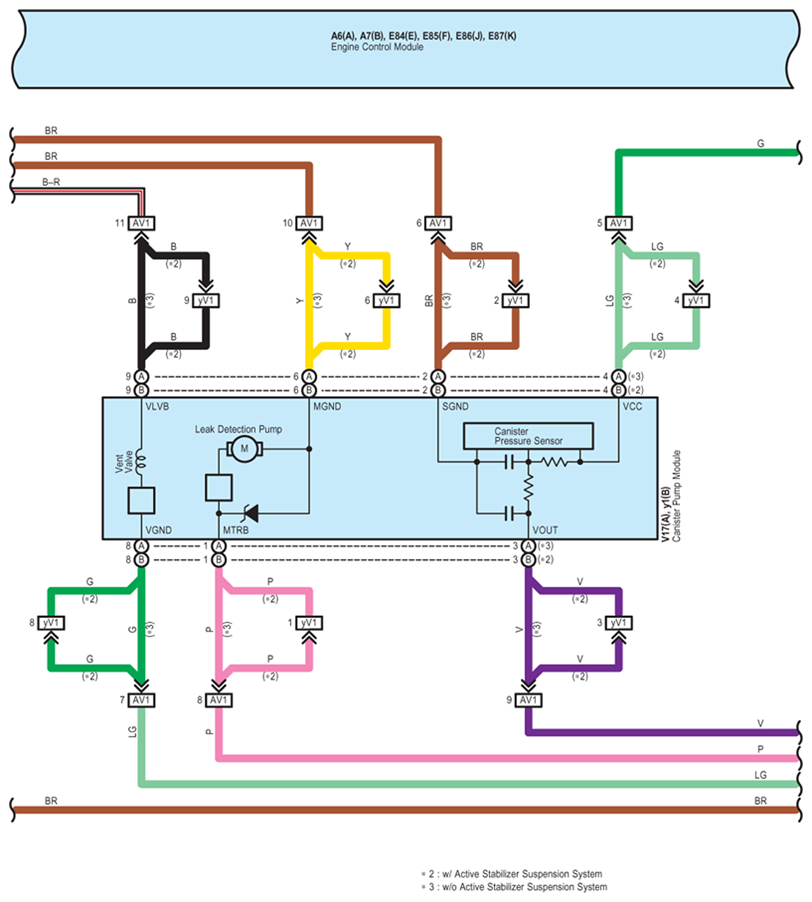

Fig 14: Engine Control For 1UR-FSE - Circuit Diagram (14 Of 28)

G07612975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

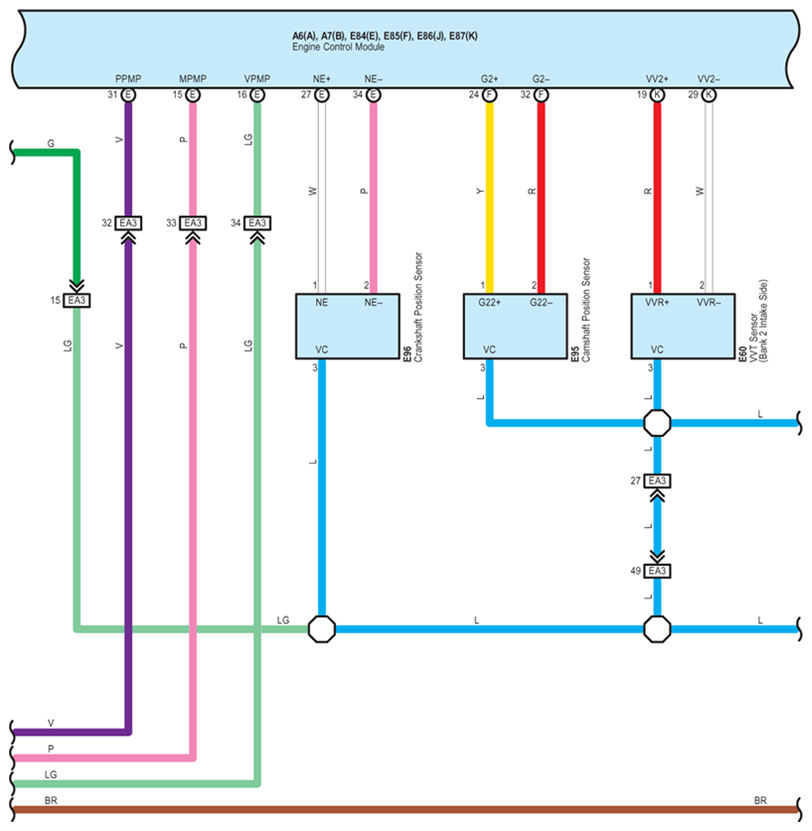

Fig 15: Engine Control For 1UR-FSE - Circuit Diagram (15 Of 28)

G07612976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

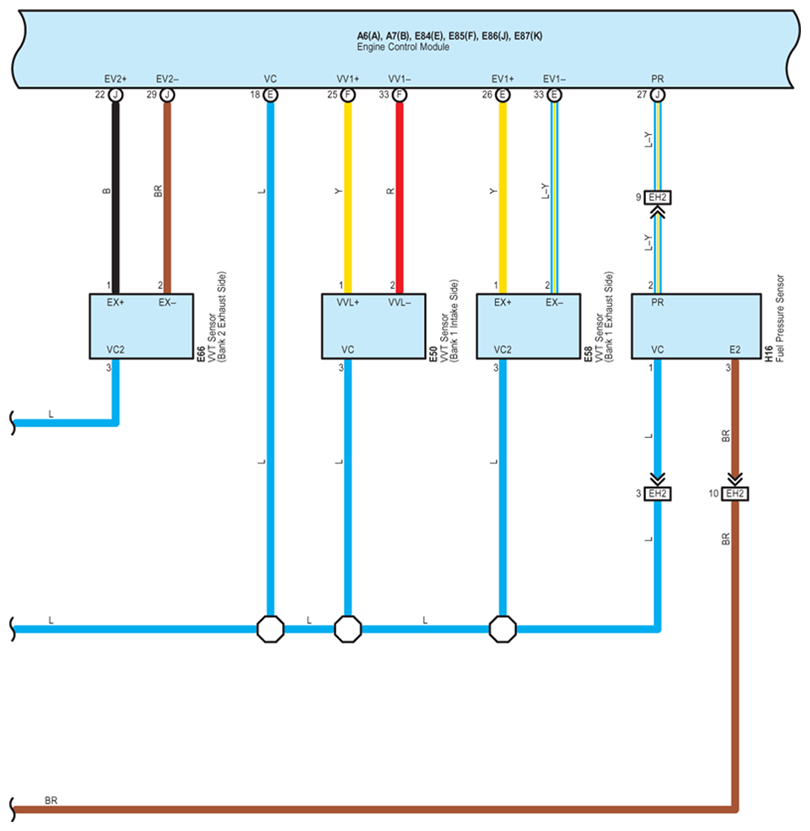

Fig 16: Engine Control For 1UR-FSE - Circuit Diagram (16 Of 28)

G07612977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

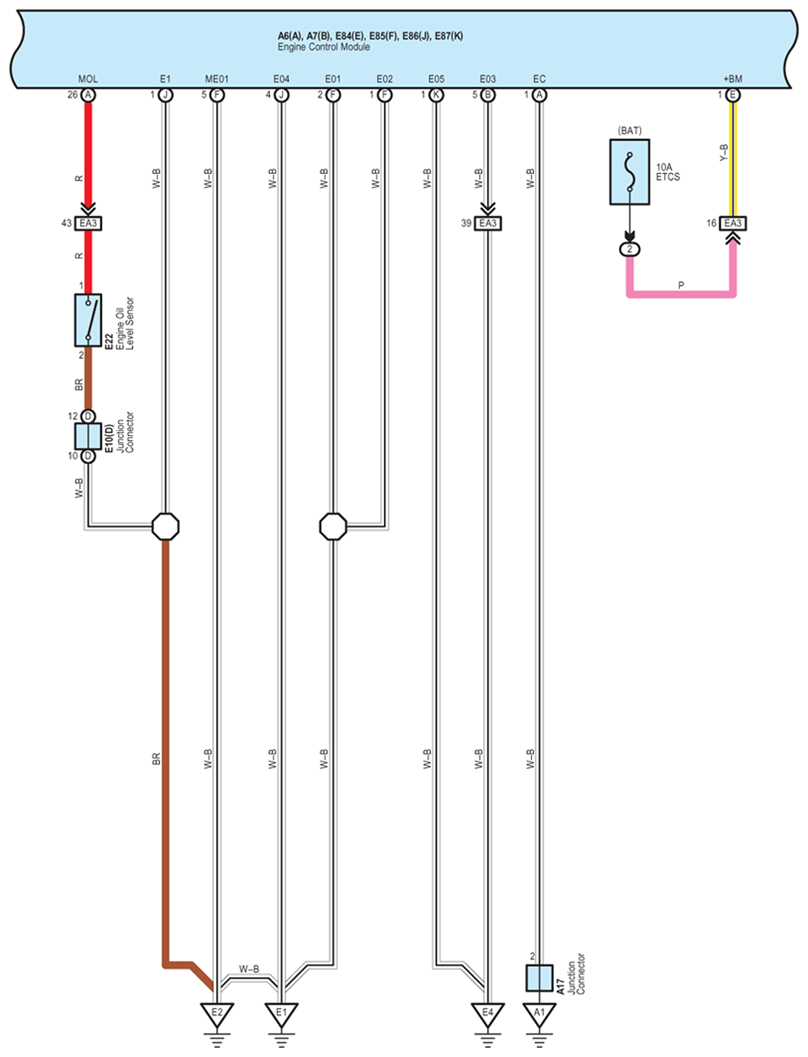

Fig 17: Engine Control For 1UR-FSE - Circuit Diagram (17 Of 28)

G07612978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

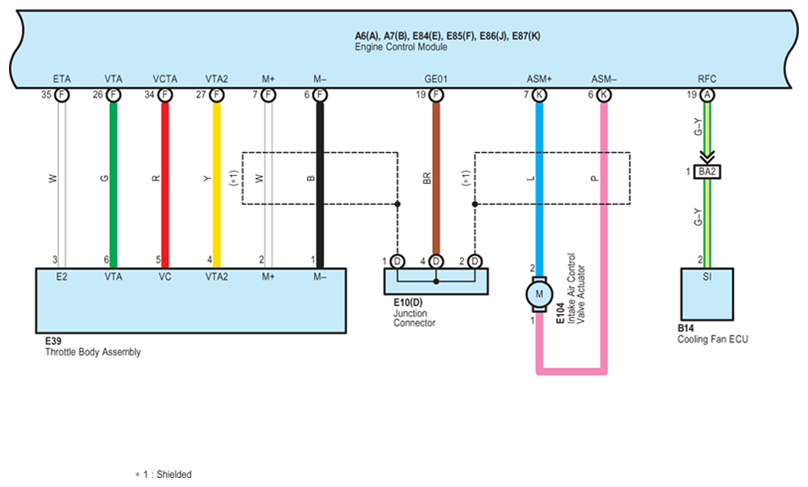

Fig 18: Engine Control For 1UR-FSE - Circuit Diagram (18 Of 28)

G07612979

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

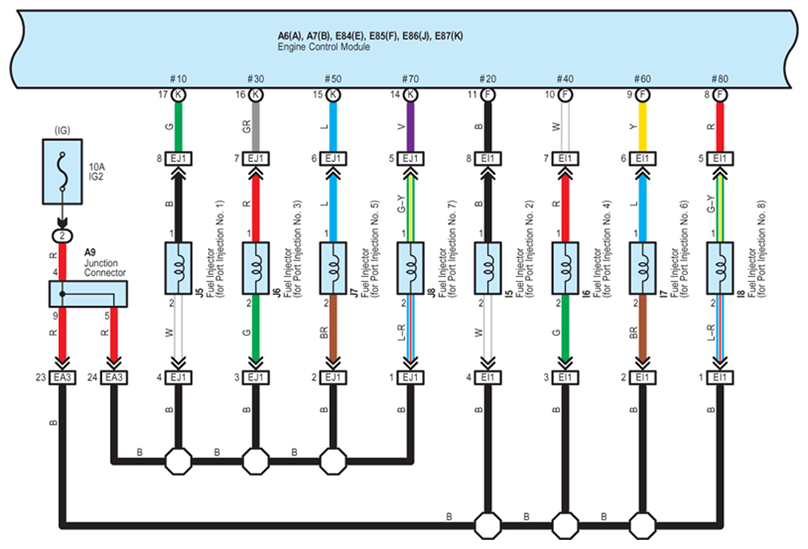

Fig 19: Engine Control For 1UR-FSE - Circuit Diagram (19 Of 28)

G07612980

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

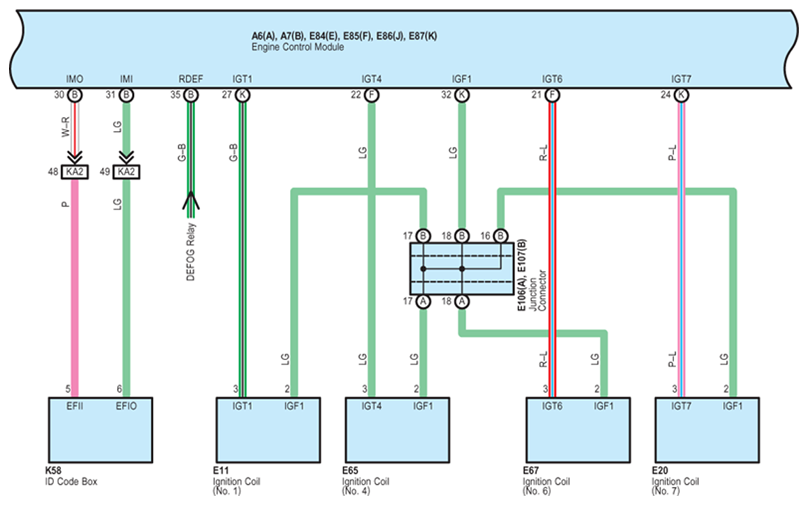

Fig 20: Engine Control For 1UR-FSE - Circuit Diagram (20 Of 28)

G07612981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

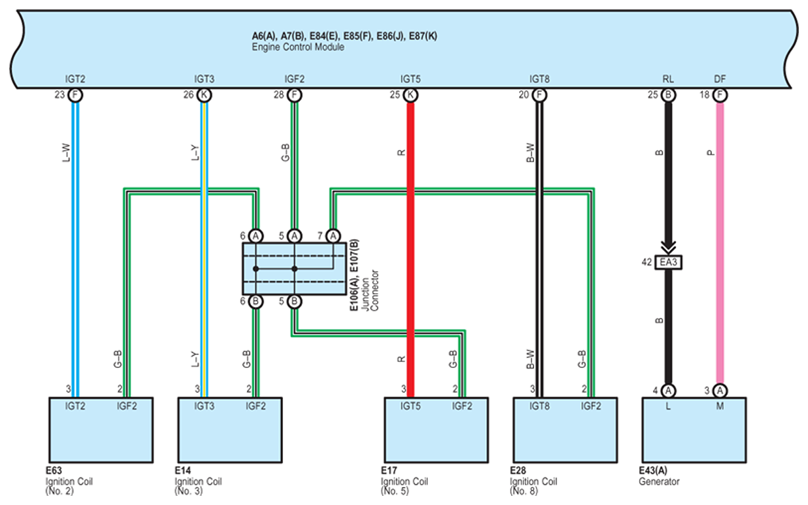

Fig 21: Engine Control For 1UR-FSE - Circuit Diagram (21 Of 28)

G07612982

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

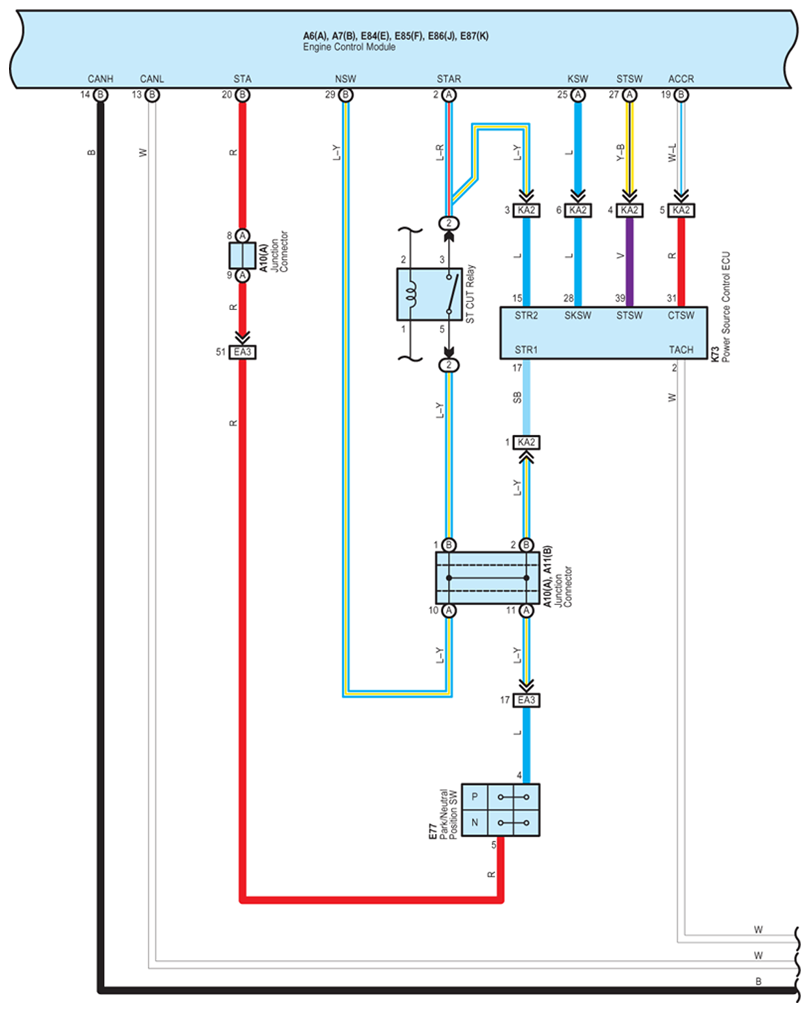

Fig 22: Engine Control For 1UR-FSE - Circuit Diagram (22 Of 28)

G07612983

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

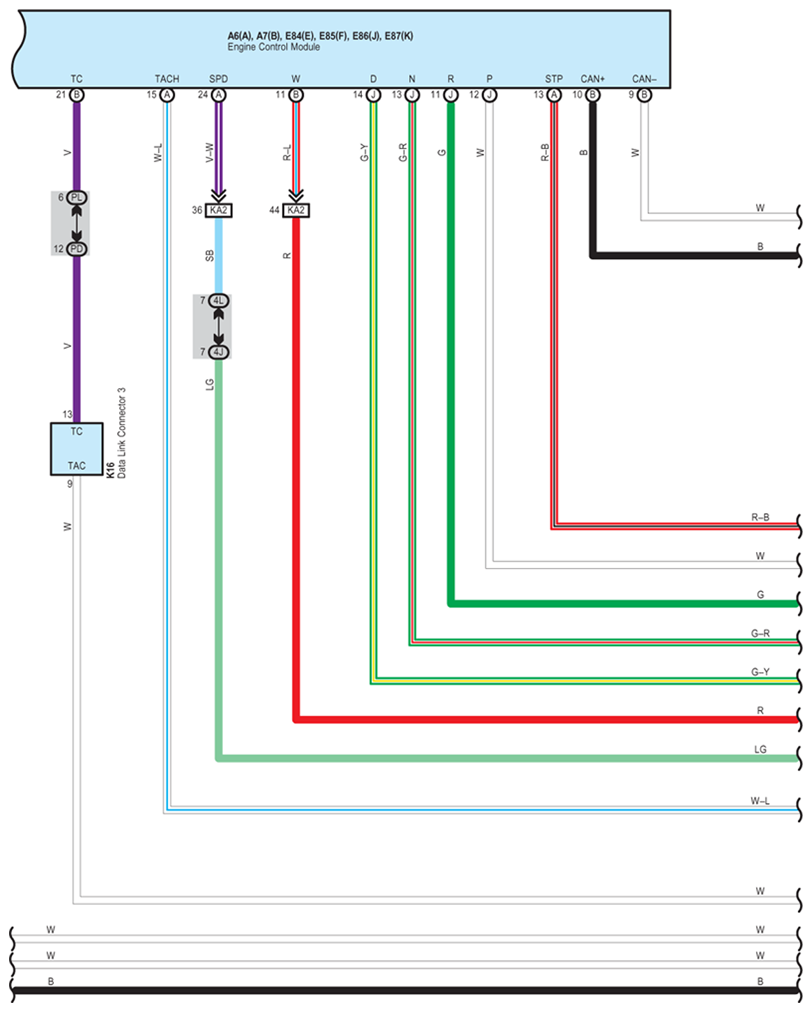

Fig 23: Engine Control For 1UR-FSE - Circuit Diagram (23 Of 28)

G07612984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

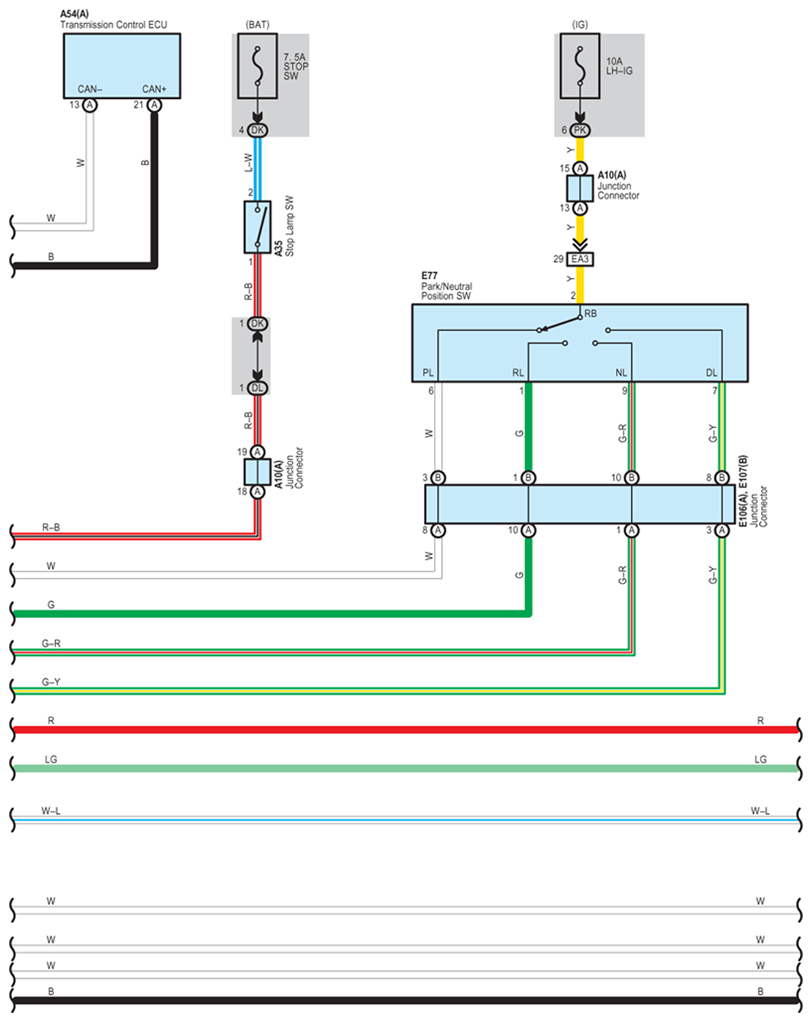

Fig 24: Engine Control For 1UR-FSE - Circuit Diagram (24 Of 28)

G07612985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

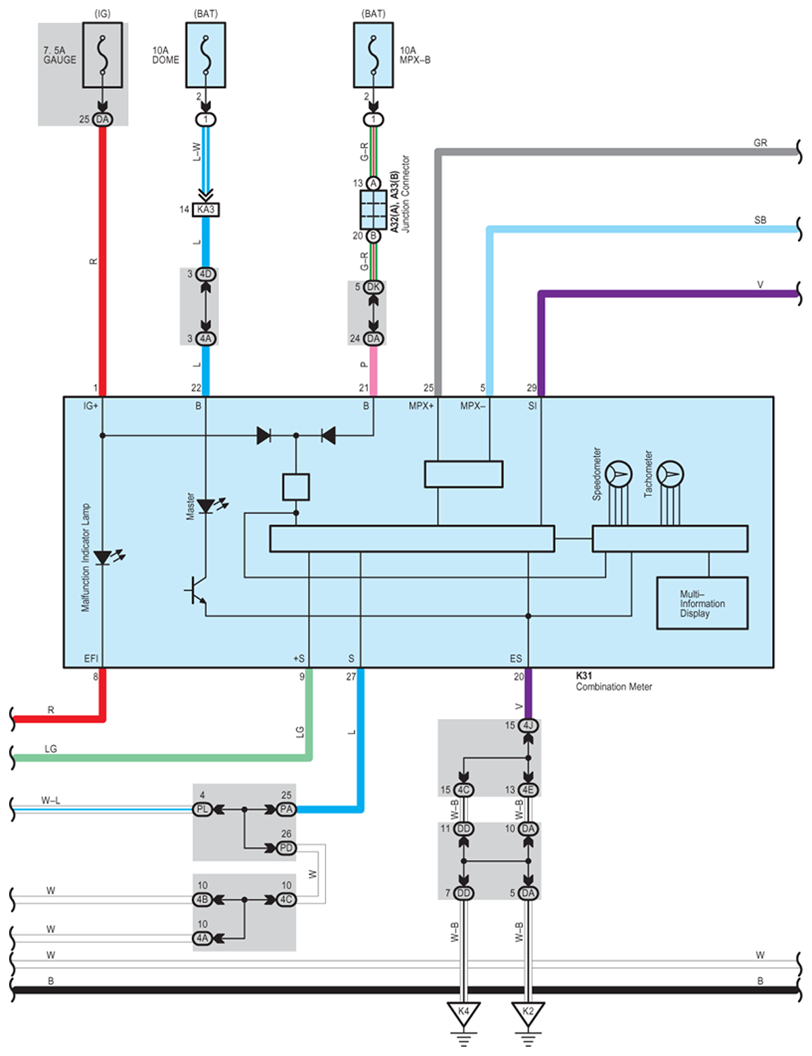

Fig 25: Engine Control For 1UR-FSE - Circuit Diagram (25 Of 28)

G07612986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

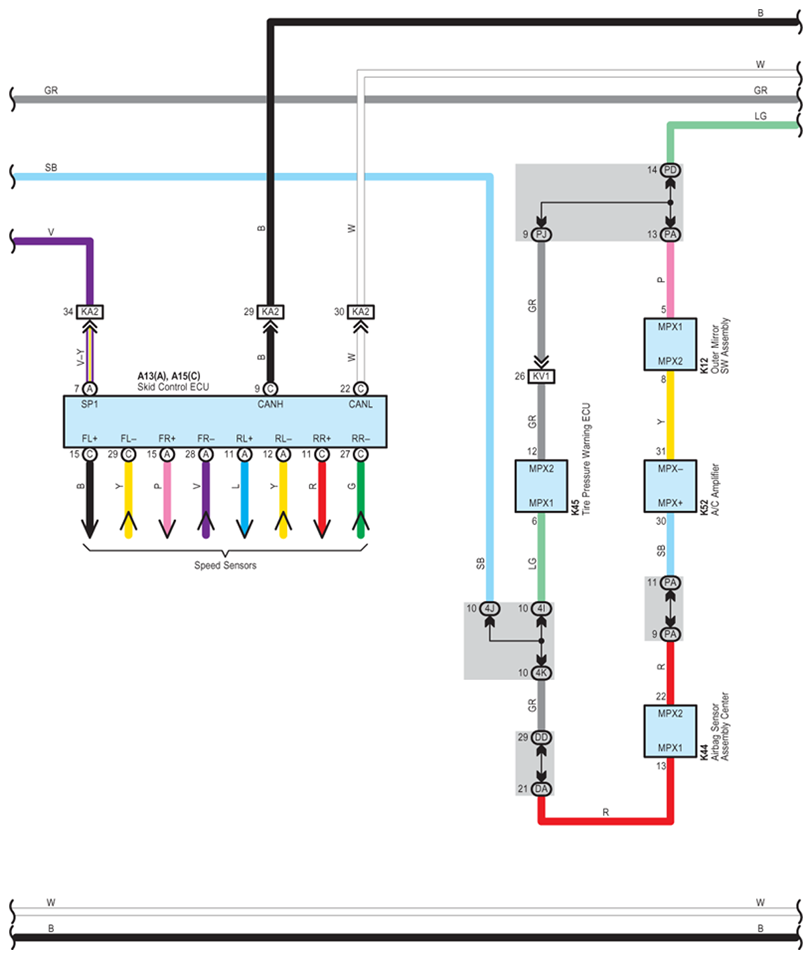

Fig 26: Engine Control For 1UR-FSE - Circuit Diagram (26 Of 28)

G07612987

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

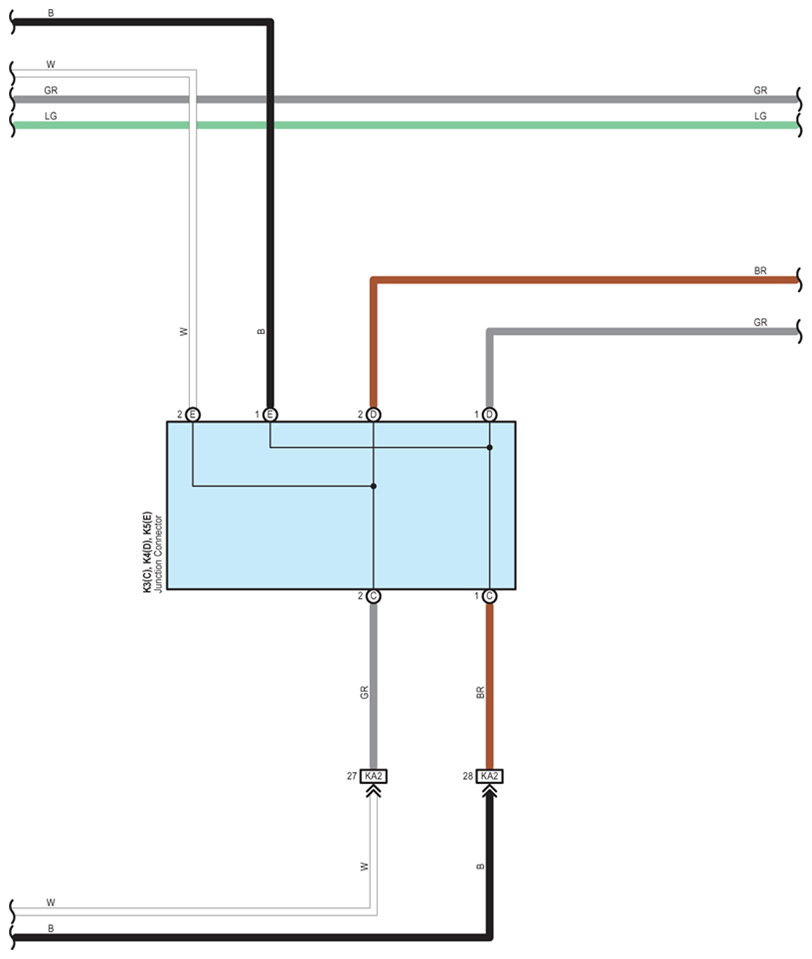

Fig 27: Engine Control For 1UR-FSE - Circuit Diagram (27 Of 28)

G07612988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

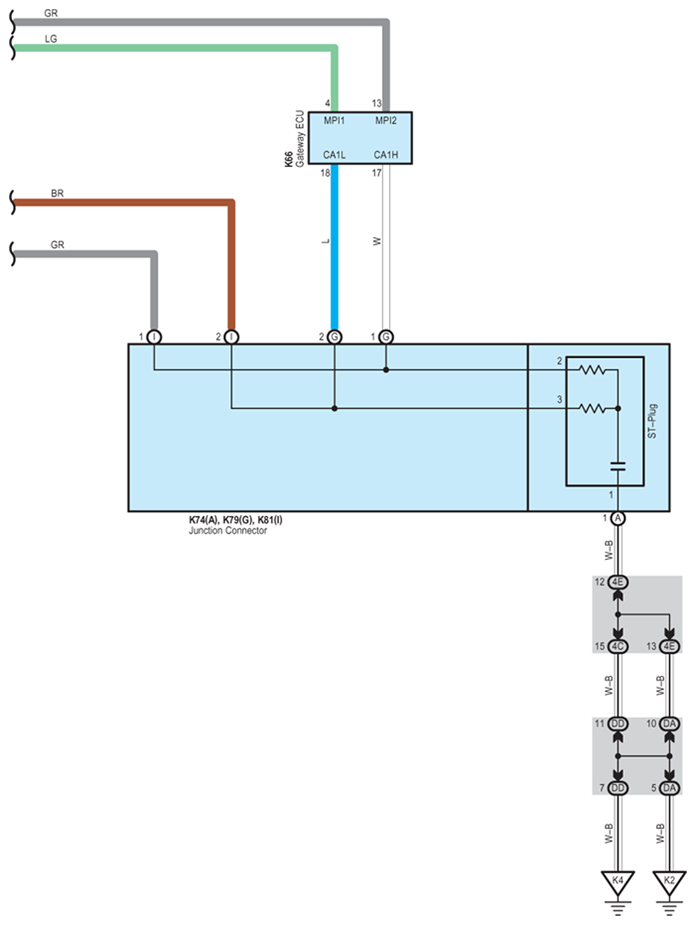

Fig 28: Engine Control For 1UR-FSE - Circuit Diagram (28 Of 28)

G07612989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
