TC and CG Terminal Circuit: Wiring Diagram

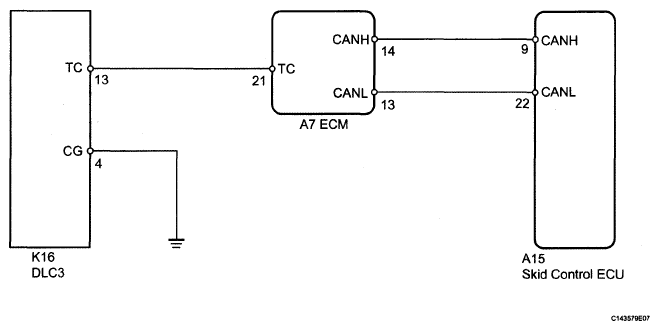

Fig 1: TC And CG Terminal Wiring Diagram

G05807229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
