Rear Strut Rod: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

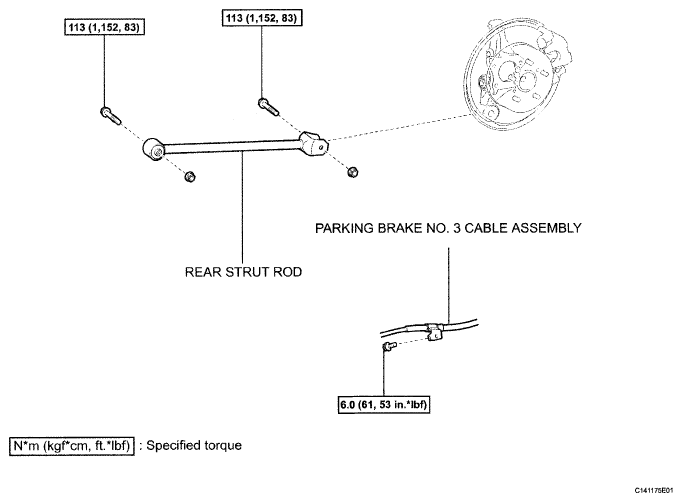

Fig 1: Rear Strut Rod Replacement Components With Torque Specifications
G05010649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
