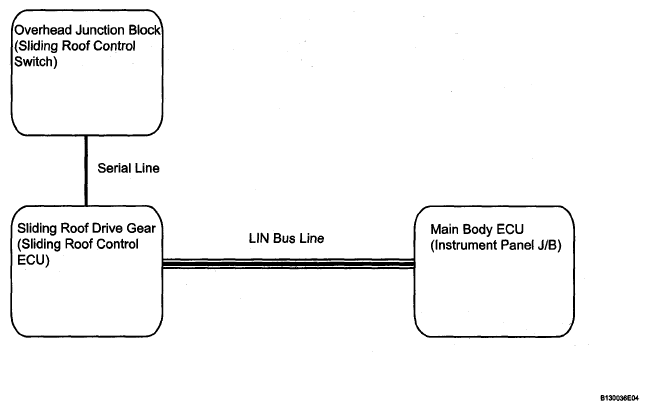

System Diagram
WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication table
COMMUNICATION CHART
| Sender |
Receiver |
Signal |
Line |
| Main Body ECU (Instrument Panel J/B) |
Sliding Roof Control ECU |
Key-off operation signal |
LIN |
