Inspection Procedure

  1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC U0101)
    1. Connect Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the tester on.
    4. Enter the following menus: Powertrain / Engine / Trouble Code.
    5. Read the DTCs.

      Result

      RESULT CHART

      Display (DTC output) Proceed to
      U0101 A
      U0101 and other DTCs B

    B: GO TO DTC CHART  (See DIAGNOSTIC TROUBLE CODE CHART )

    A: Go to next step.

  2. CHECK TCM TERMINAL VOLTAGE (+B AND E1 TERMINALS)
    1. Disconnect the TCM connector.
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      B40-18 (+B) - B40-8 (E1) 9 to 14 V
      Fig 1: Identifying Terminals Of B40 TCM Connector
      G05247812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the engine switch off.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      B40-8 (E1) - Body ground Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  3. CHECK HARNESS AND CONNECTOR
    1. Disconnect the B40 TCM connector.
    2. Disconnect the B12 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      B40-6 (CAN+) - B12-2 (CAN+) Below 1 Ω
      B40-7 (CAN-) - B12-1 (CAN-) Below 1 Ω
      B40-6 (CAN+) or B12-2 (CAN+) - Body ground 1 MΩ or more
      B40-7 (CAN-) or B12-1 (CAN-) - Body ground 1 MΩ or more

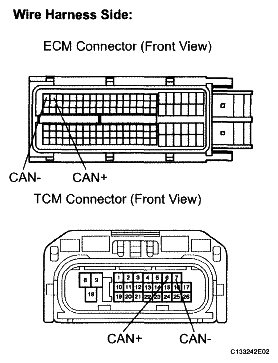

      Fig 2: Identifying Terminals Of B40 TCM And B12 Connectors
      G04973750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  4. REPLACE ECM
    1. Replace the ECM (See REMOVAL ).
      NOTE: Replace the ECM with an ECM from a normally functioning vehicle of the same model.
  5. CHECK IF DTC RECURS
    1. Connect Techstream to the DLC3.
    2. Clear the DTC.
    3. Start the engine.
    4. Read the DTCs.

      Result

      RESULT CHART

      Display (DTC Output) Proceed to
      U0101 A
      No DTC B

    B: REPLACE ECM (See  REMOVAL  )

    A: REPLACE TCM (See  REMOVAL  )
