On-Vehicle Inspection

INSPECT VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)

Measure the resistance of the VSV.

Standard resistance

RESISTANCE REFERENCE

Tester Connection	Condition	Specified Condition
1 - 2	20°C (68°F)	33 to 39 Ω
1 - Body ground 2 - Body ground	-	1 MΩ or higher

If the result is not as specified, replace the VSV assembly.

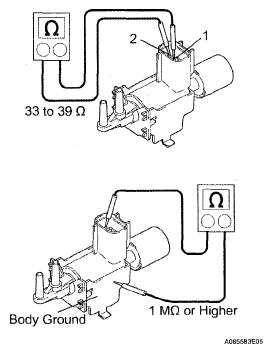

Fig 1: Measuring Resistance Of VSV

G05289289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the VSV operation.
1. Check that air flows from port E to the filter.
  If the result is not as specified, replace the VSV assembly.
2. Apply battery voltage across the terminals.

  Fig 2: Checking VSV Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that air flows from port E to F.
  If the result is not as specified, replace the VSV assembly.

  Fig 3: Checking Air Flows From Port E To F
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
