Rear Differential Carrier Assembly: Components

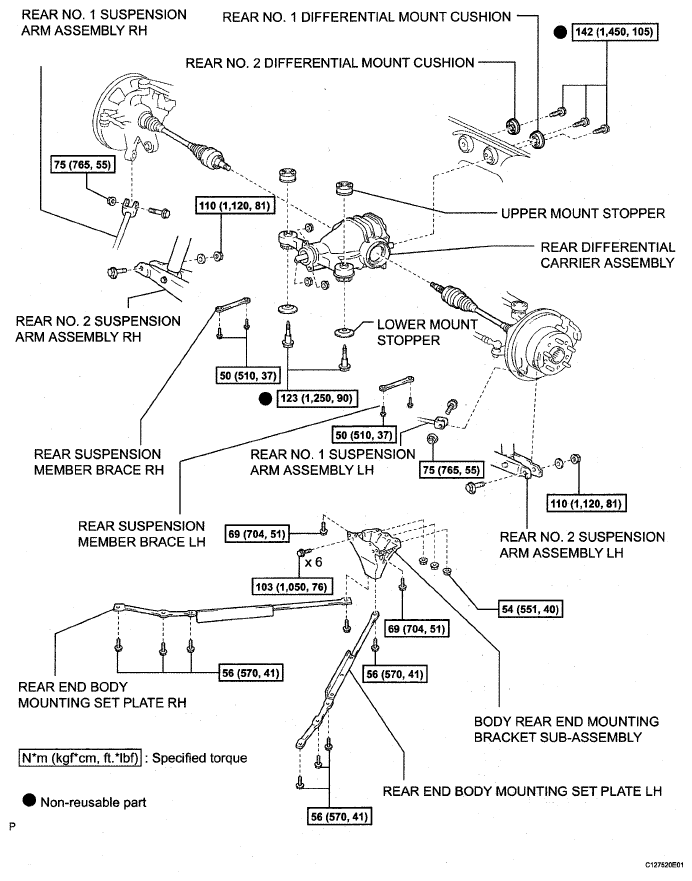

Fig 1: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

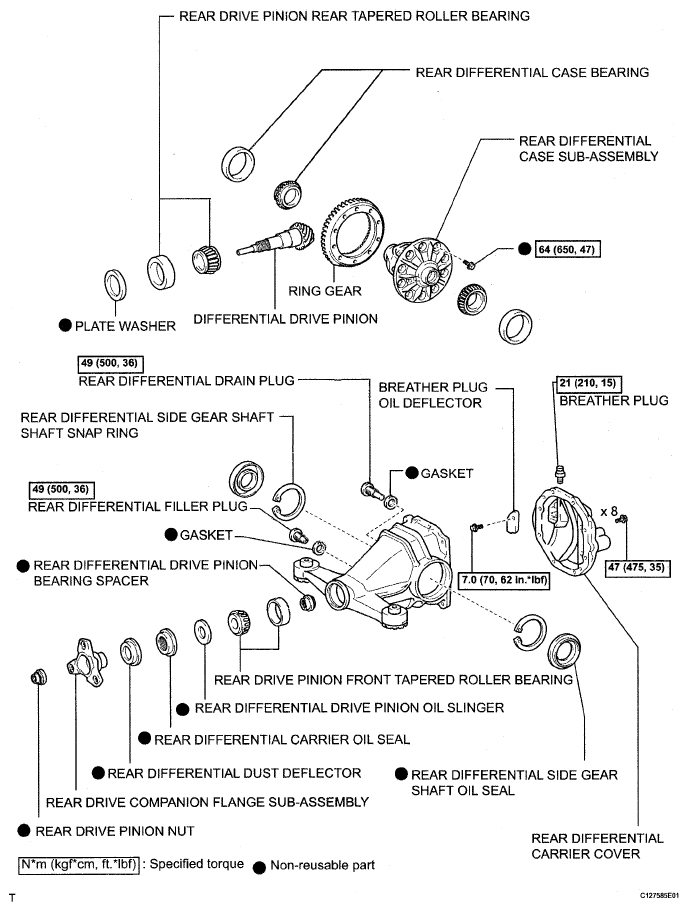

Fig 3: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
