Rear Combination Light Assembly: Installation: Installation

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

INSTALL REAR COMBINATION LIGHT ASSEMBLY

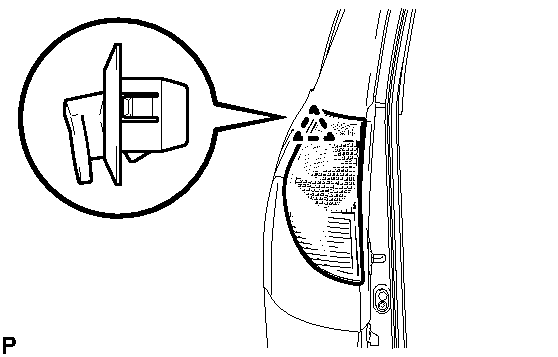

1. Attach the clip to install the light.

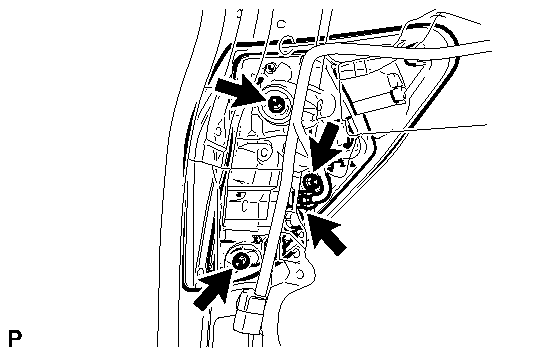

2. Install the 3 nuts and connect the connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
