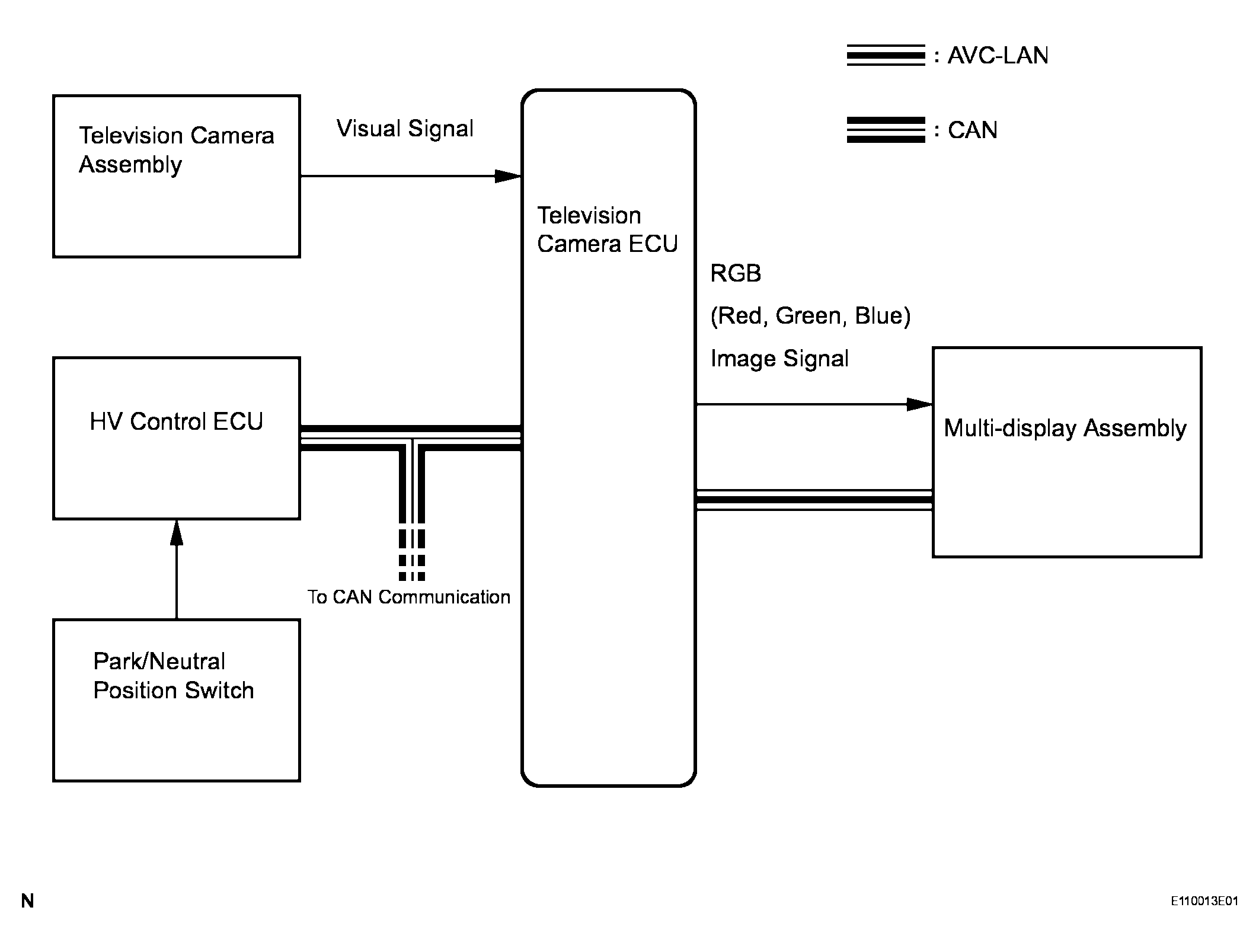

System Diagram
WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Input and output signals of each ECU.
INPUT AND OUTPUT SIGNALS OF EACH ECU
| Transmitting ECU (transmitter) |
Receiving ECU |
Signals |
Communication method |
| HV Control ECU |
Television Camera ECU |
Shift R position signal |
CAN |
