Transponder Key Ecu: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

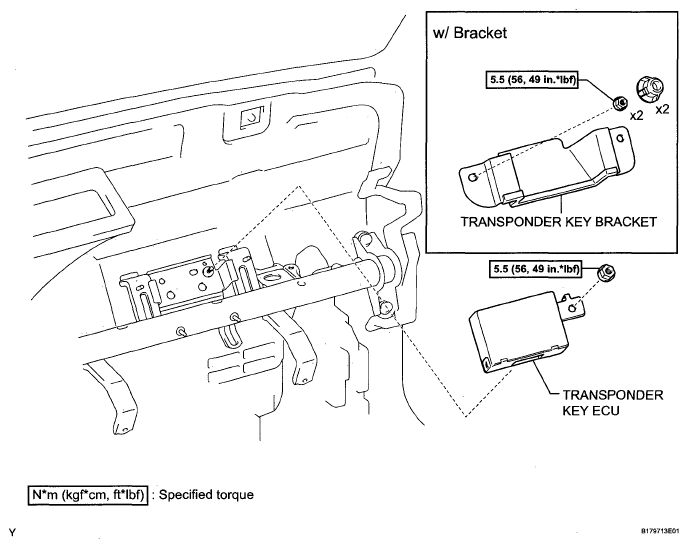

Fig 1: Identifying Transponder Key ECU Replacement Components With Torque Specification (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

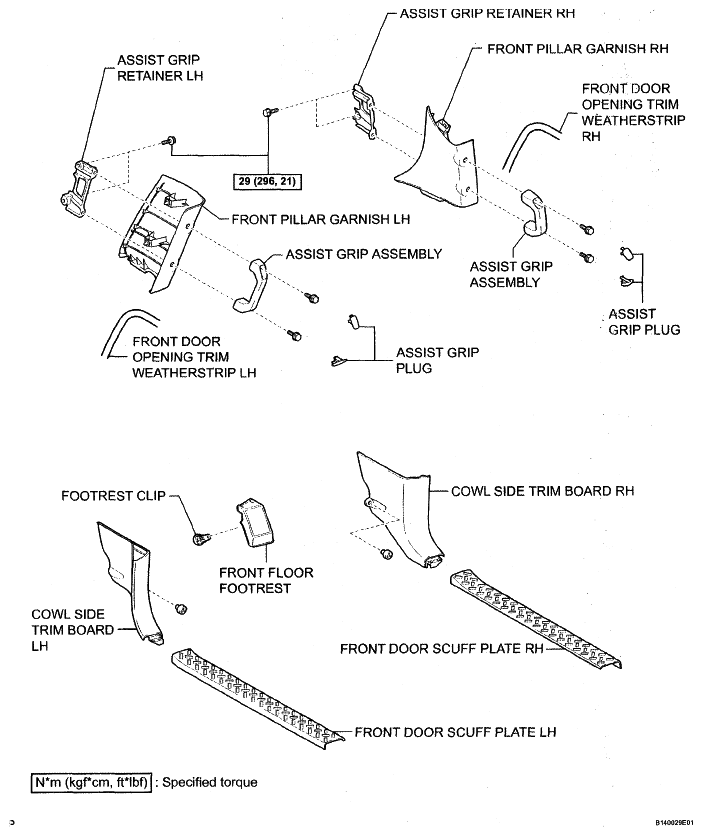

Fig 2: Identifying Transponder Key ECU Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

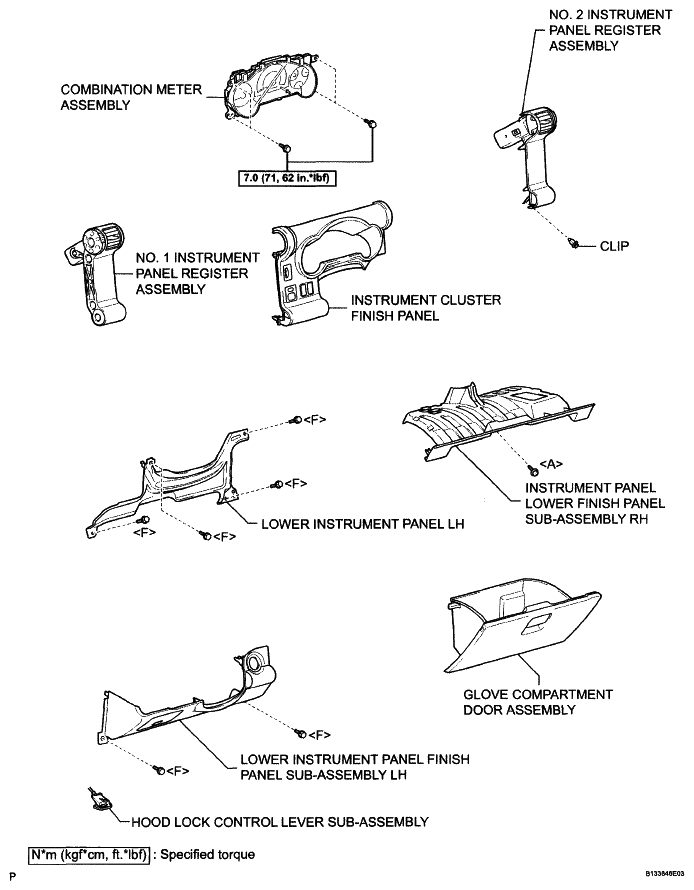

Fig 3: Identifying Transponder Key ECU Replacement Components With Torque Specification (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Transponder Key ECU Replacement Components With Torque Specification (4 Of 6)

Fig 5: Identifying Transponder Key ECU Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Identifying Transponder Key ECU Replacement Components With Torque Specifications (6 Of 6)
