Section 270 (Engine Cooling System): Fan: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

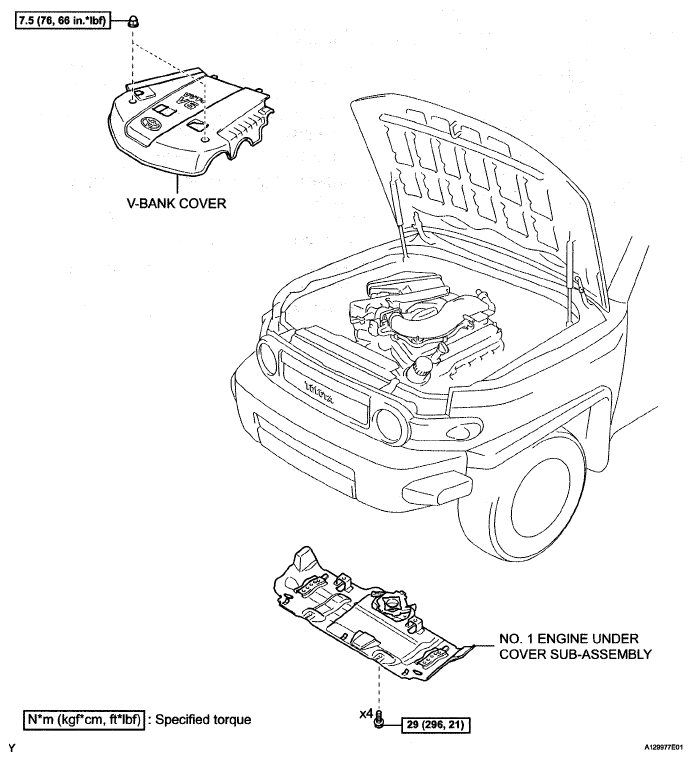

Fig 2: Fan Replacement Components With Torque Specifications (2 Of 3)

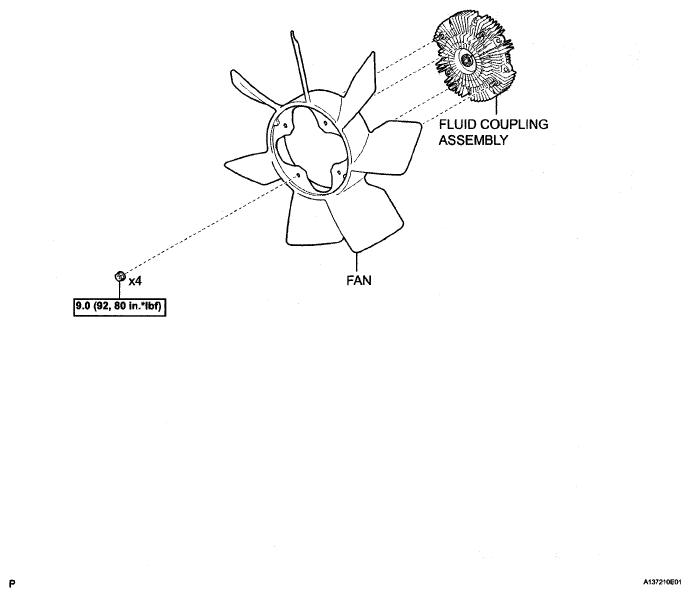

Fig 3: Fan Replacement Components With Torque Specifications (3 Of 3)
