Front Axle Hub: Removal

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL
  2. REMOVE FRONT AXLE HUB NUT
    1. Using SST and a hammer, release the staked part of the front axle hub nut.

      SST 09930-00010

    2. Using a socket wrench (30 mm), remove the axle hub nut.
      NOTE: Loosen the staked part of the nut completely, otherwise the screw of the drive shaft may be damaged.

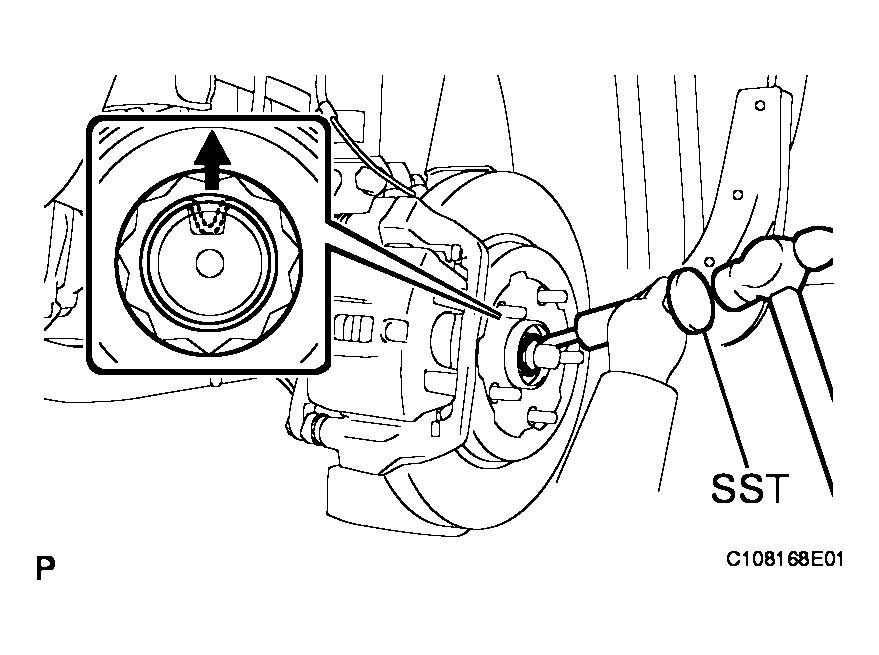

      Fig 1: Removing Front Axle Hub Nut
      G04112924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. SEPARATE FRONT SPEED SENSOR (See  REMOVAL  )
  4. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY
    1. Remove the 2 bolts, and separate the brake caliper assembly.
      NOTE: Use a wire or an equivalent to keep the brake caliper from hanging down by the flexible hose.

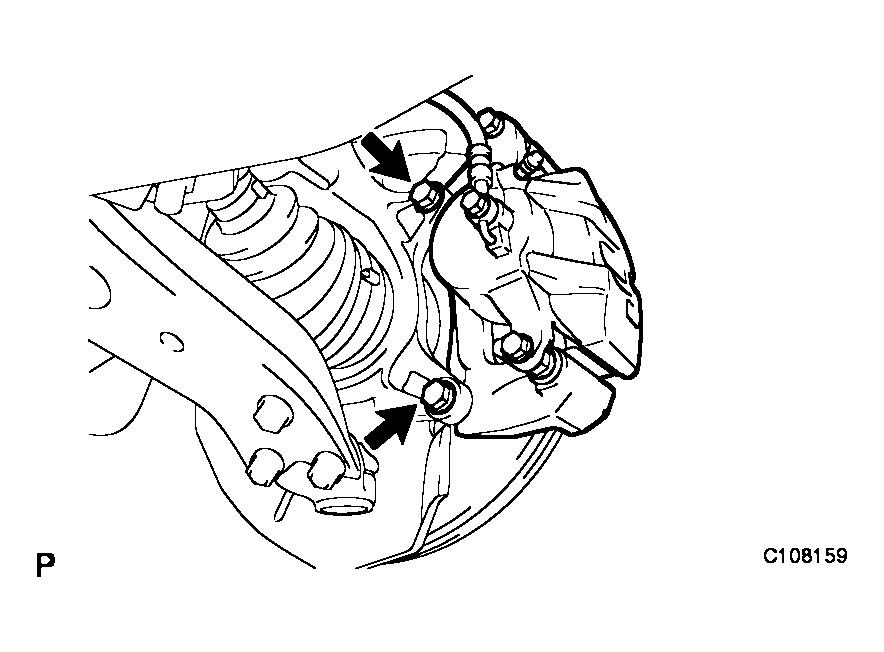

    Fig 2: Identifying Front Disc Brake Caliper Assembly Bolts
    G04112925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT DISC (See  DISASSEMBLY  )
  6. SEPARATE TIE ROD ASSEMBLY
    1. Remove the cotter pin and nut.
    2. Using SST, separate the tie rod end from the steering knuckle.

      SST 09628-00011

      NOTE:
      • Make sure that the string of the SST is securely tied to the vehicle.
      • Be careful not to damage the ball joint dust cover.
      • Be careful not to damage the steering knuckle.
      • Be careful not to damage the front disc brake dust cover.

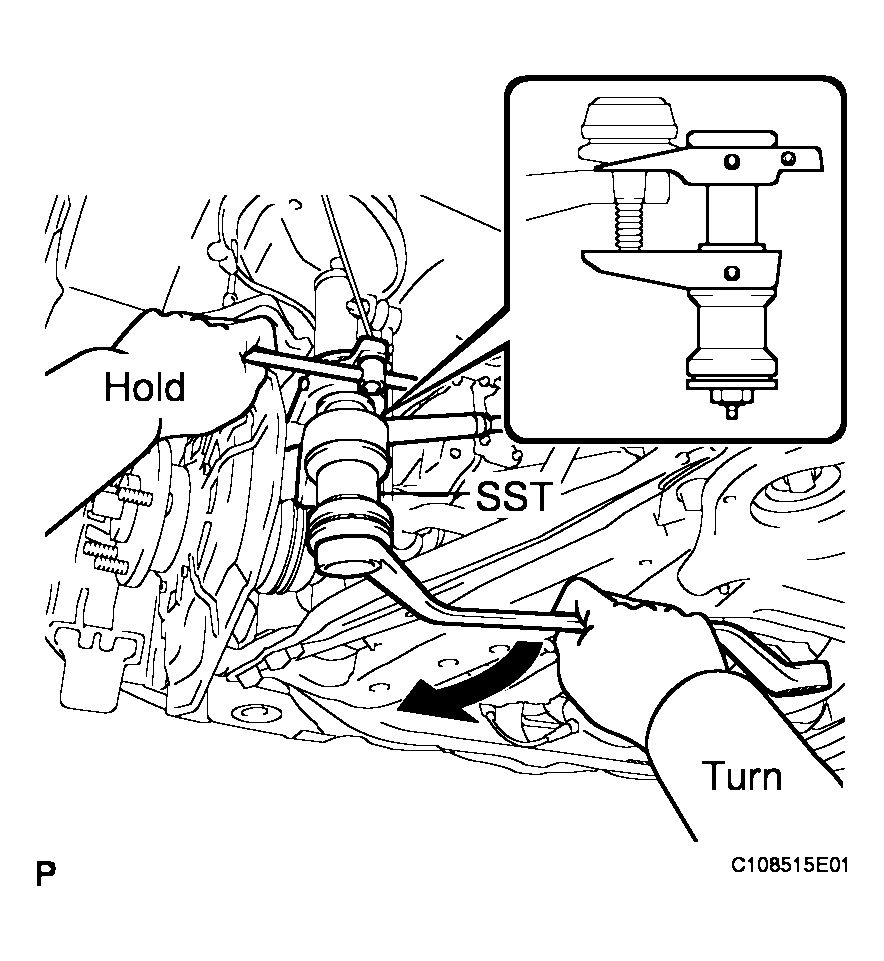

      Fig 3: Separating Tie Rod Assembly Using SST
      G04112926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. SEPARATE FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO. 1 (See  REMOVAL  )
  8. REMOVE FRONT AXLE ASSEMBLY
    1. Using a plastic hammer, separate the drive shaft from the axle hub.
    2. Remove the 2 bolts, nuts and steering knuckle.
      NOTE: Be careful not to damage the boot and speed sensor rotor.

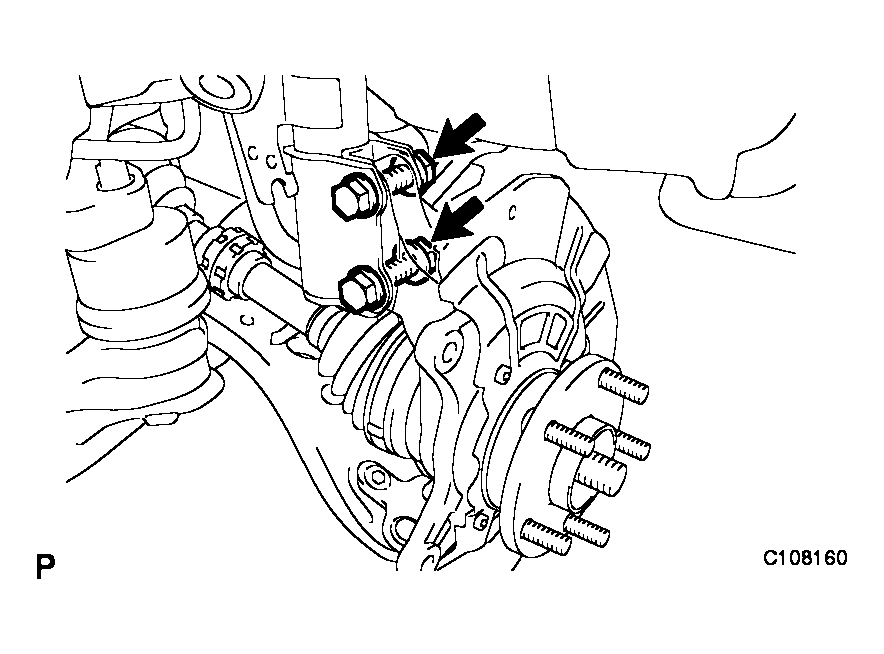

      Fig 4: Identifying Steering Knuckle Bolts And Nuts
      G04112927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT WHEEL BEARING DUST DEFLECTOR NO. 1
    1. Using a screwdriver with its tip wrapped with vinyl tape, remove the bearing dust deflector No. 1.
      NOTE: Be careful not to damage the steering knuckle.

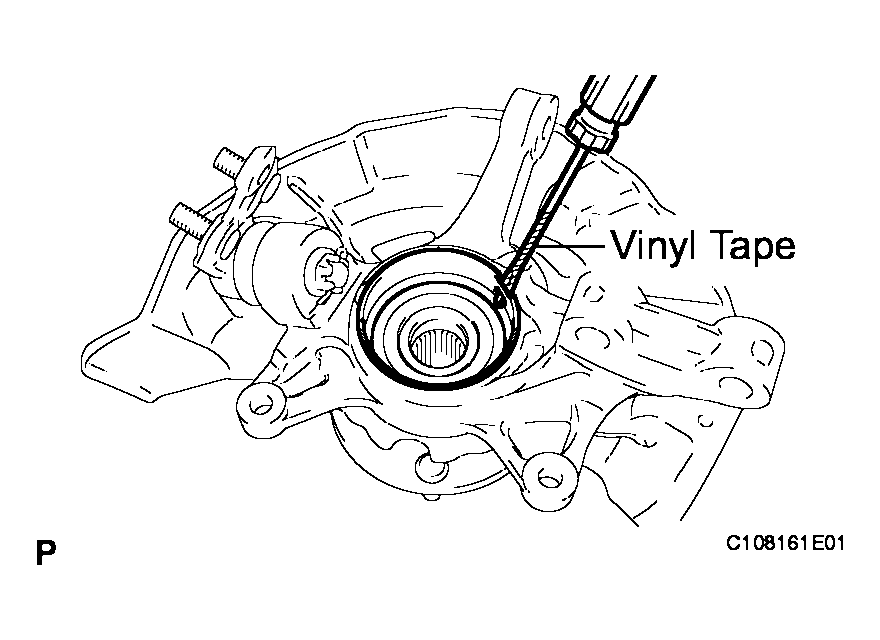

      Fig 5: Removing Front Wheel Bearing Dust Deflector No. 1
      G04112928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT AXLE HUB HOLE SNAP RING
    1. Using snap ring pliers, remove the front axle hub hole snap ring.

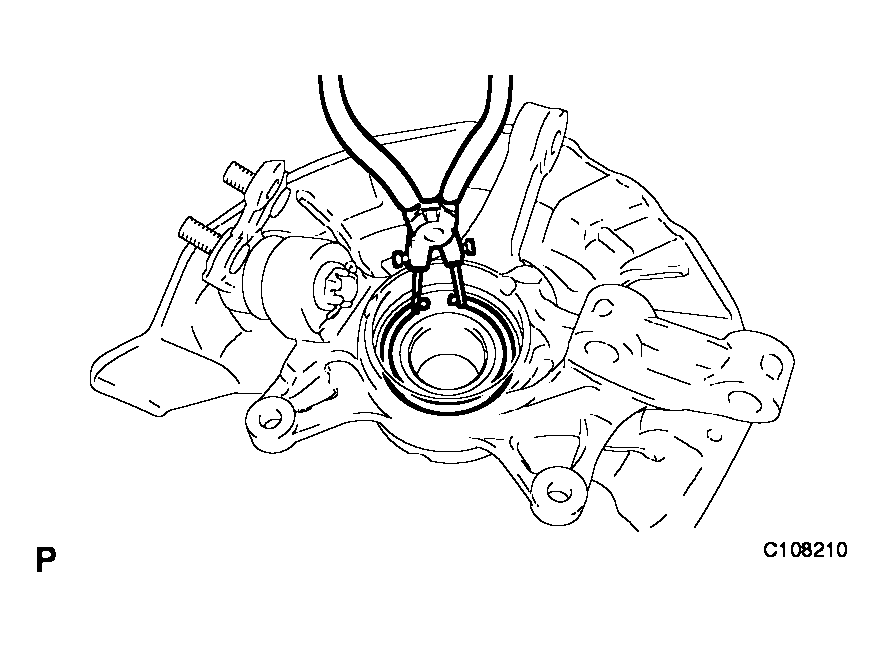

    Fig 6: Removing Front Axle Hub Hole Snap Ring
    G04112929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT AXLE HUB SUB-ASSEMBLY
    1. Hold the front axle assembly between aluminum plates in a vise.
      NOTE: Do not overtighten the vise.
    2. Using SST, remove the front axle hub sub-assembly.

      SST 09520-00031

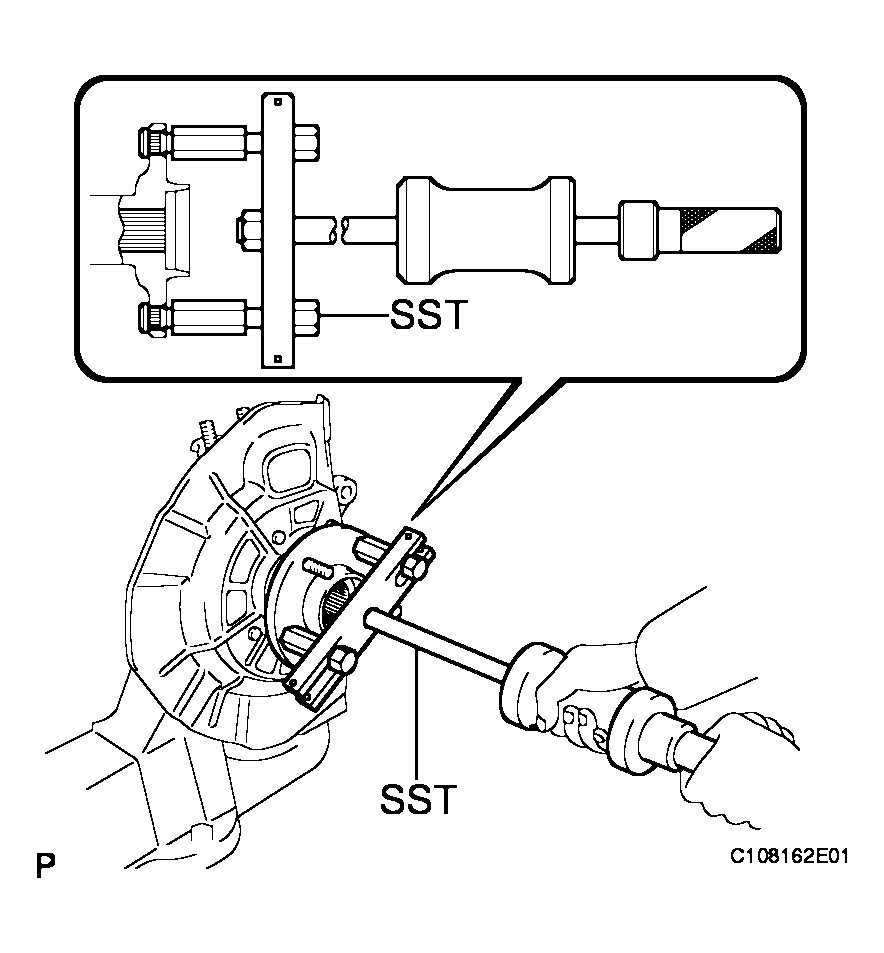

      Fig 7: Removing Front Axle Hub Sub-Assembly
      G04112930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST and a press, remove the bearing inner race (outside) from the front axle hub sub-assembly.

      SST 09950-60010 (09951-00430), 09950-70010 (09951-07100), 09555-55010

      NOTE: Be careful not to drop the front axle hub sub-assembly.

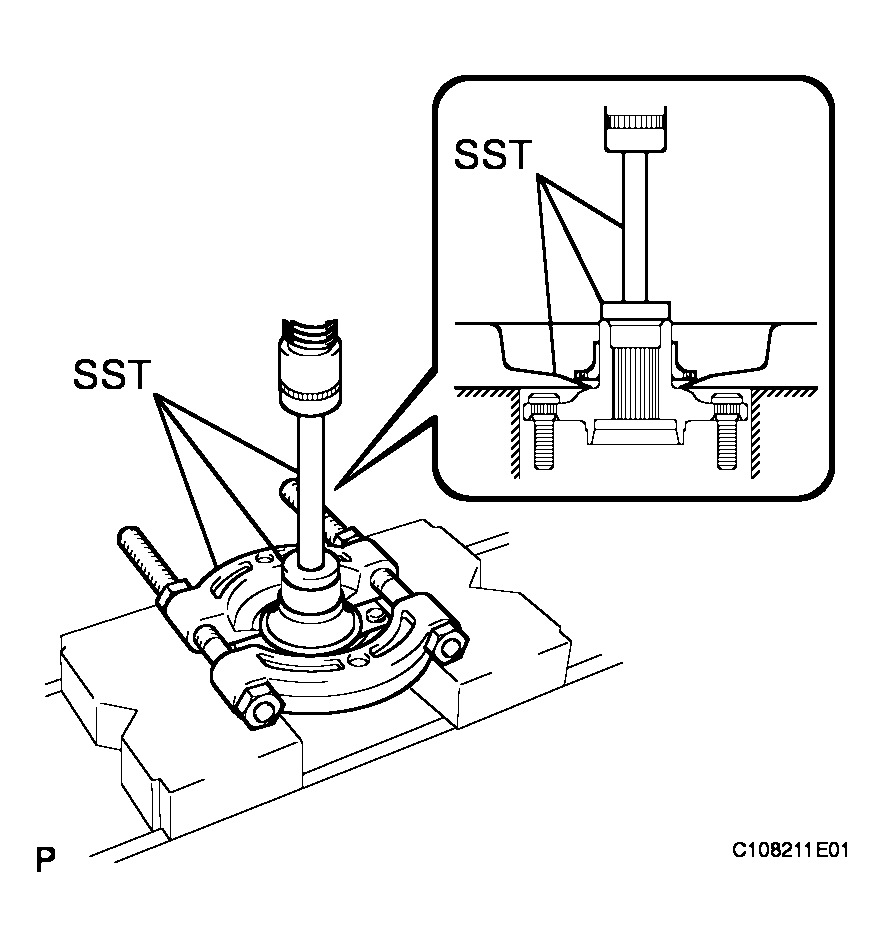

      Fig 8: Removing Bearing Inner Race (Outside)
      G04112931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT DISC BRAKE DUST COVER
    1. Remove the 4 bolts and disc brake dust cover from steering knuckle.
  13. REMOVE FRONT LOWER BALL JOINT ASSEMBLY (See  REMOVAL  )
  14. REMOVE FRONT AXLE HUB BEARING
    1. Place the bearing inner race (outside) on the front axle hub bearing.
    2. Using SST and a press, press the front axle hub bearing until it contacts the SST.

      SST 09527-17011, 09950-60010 (09951-00600, 09951-00400, 09952-06010), 09950-70010 (09951-07100)

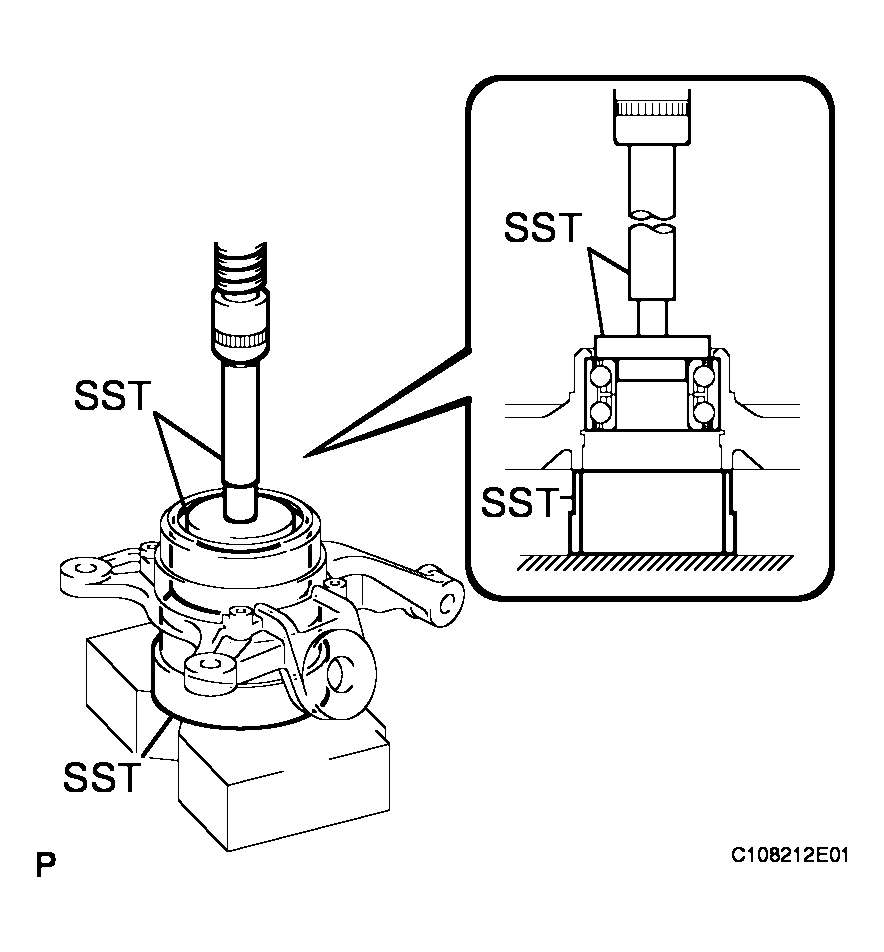

      Fig 9: Placing Bearing Inner Race (Outside) On Front Axle Hub Bearing
      G04112932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST to make the steering knuckle horizontal, fix it to the V-block, as shown in the illustration.
    4. Using SST and a press, remove a front axle hub bearing to the steering knuckle.

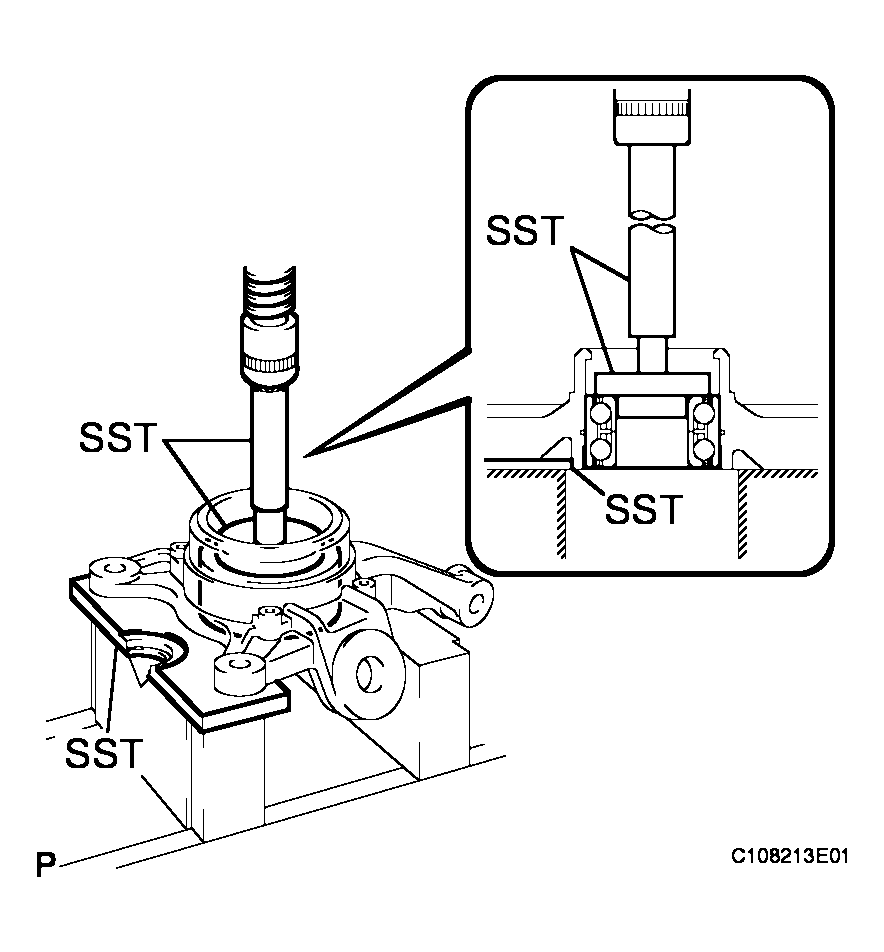

      Fig 10: Removing Front Axle Hub Bearing To Steering Knuckle
      G04112933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-60010 (09951-00600, 09951-00400, 09952-06010), 09950-70010 (09951- 07100), 09527-20011
