Front Wiper Rubber: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

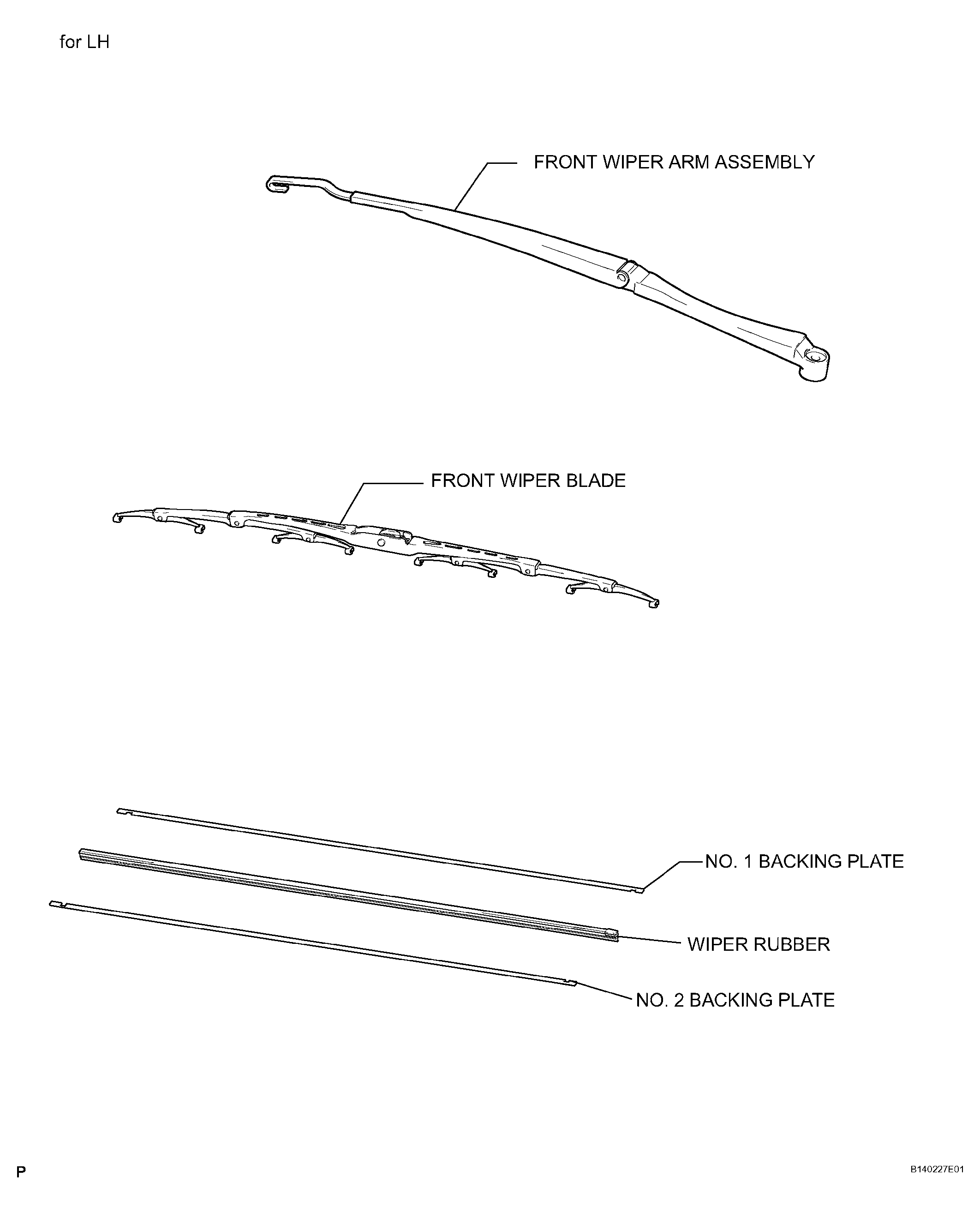

Fig 1: Identifying Front Wiper Rubber Components (LH)
G04490954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

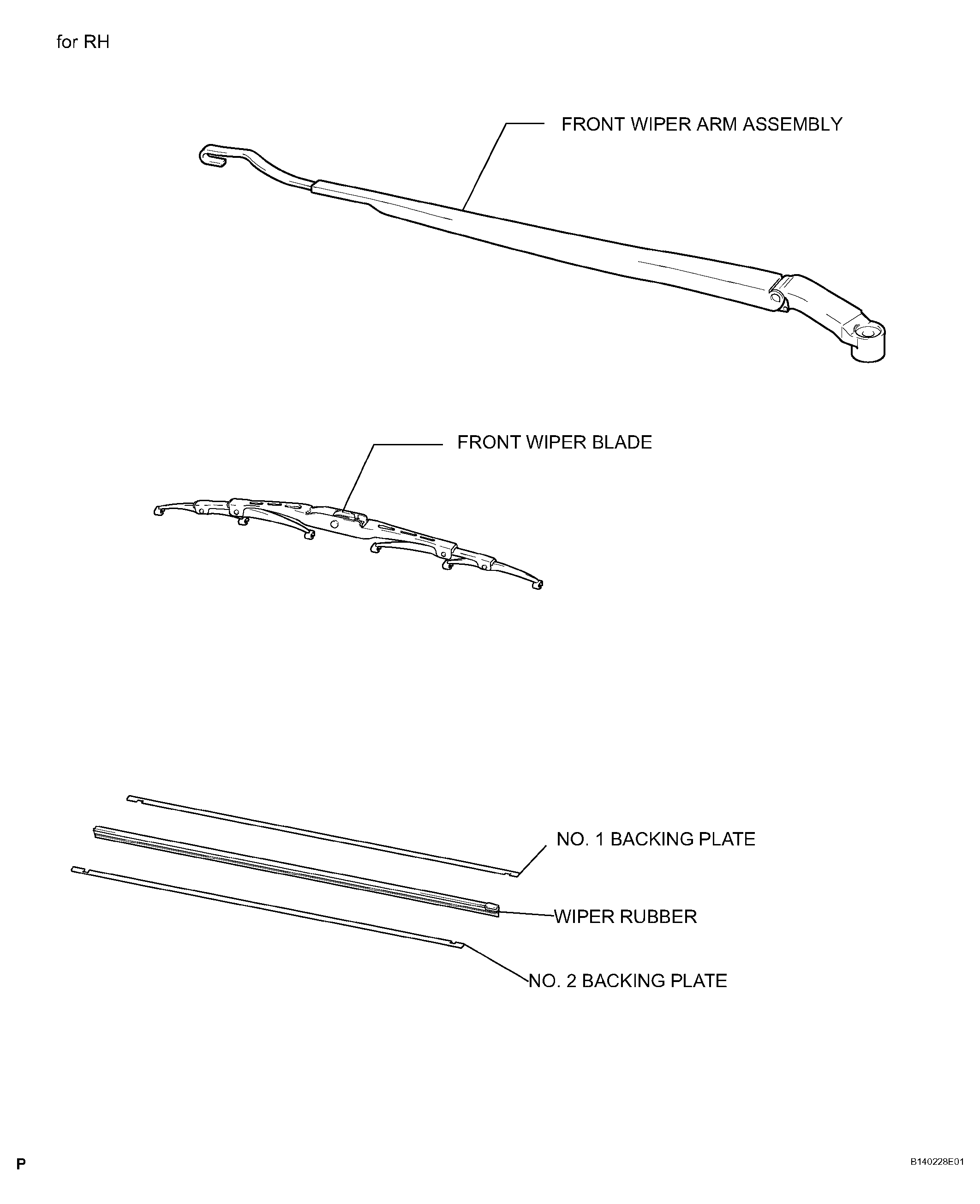

Fig 2: Identifying Front Wiper Rubber Components (RH)
G04490955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
