Evaporator Temperature Sensor: Components

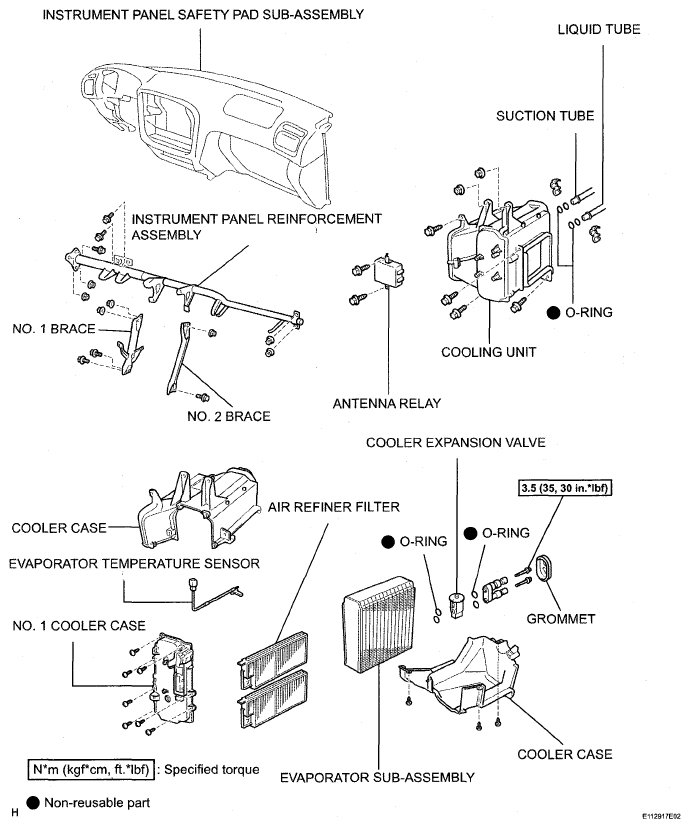

Fig 1: Identifying Evaporator Temperature Sensor Component

G05284329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
