Air Conditioning Control Assembly: Components

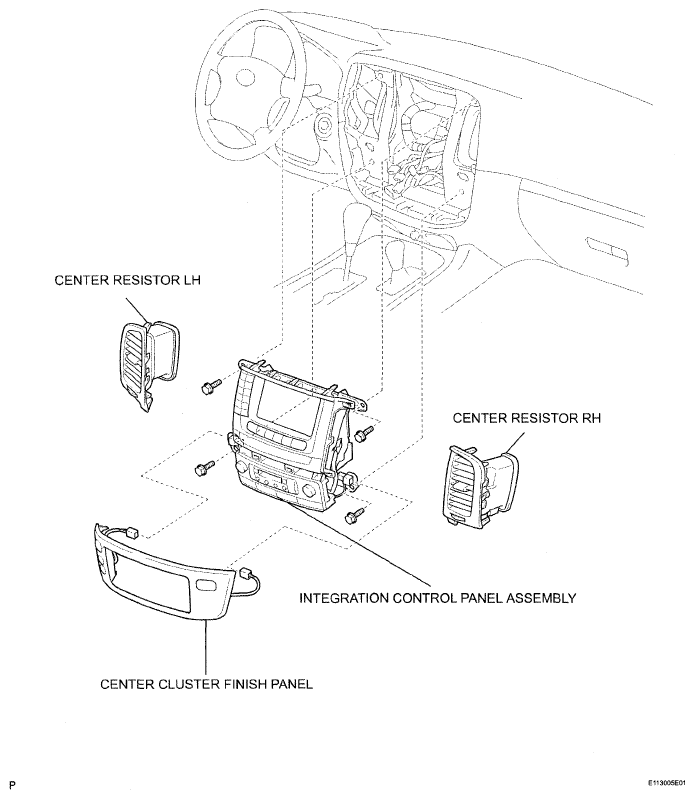

Fig 1: Identifying Air Conditioning Control Assembly Components (1 Of 3)
G05284346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

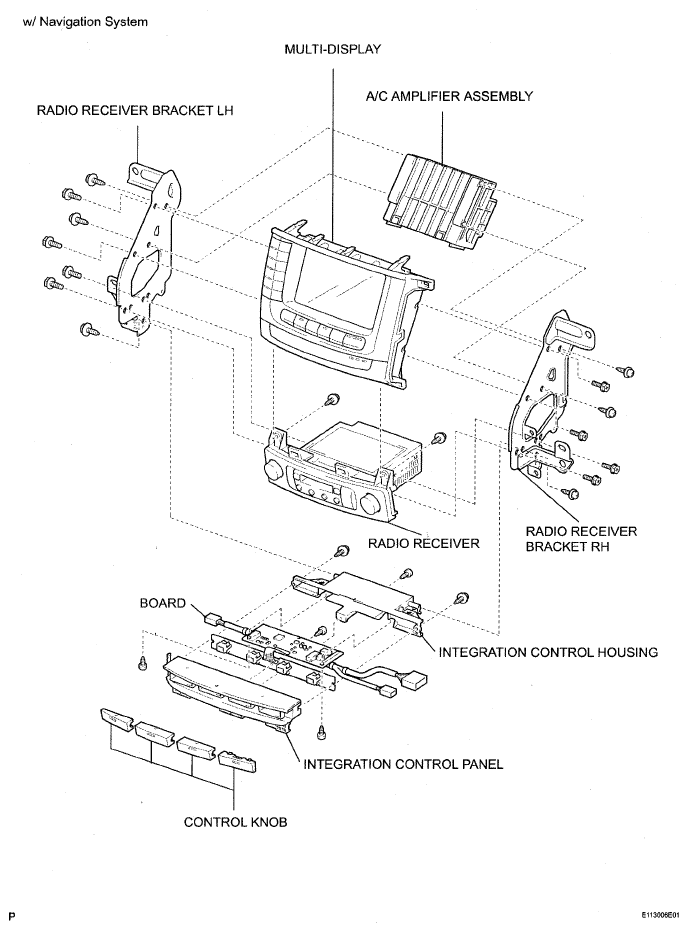

Fig 2: Identifying Air Conditioning Control Assembly Components (2 Of 3)
G05284347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

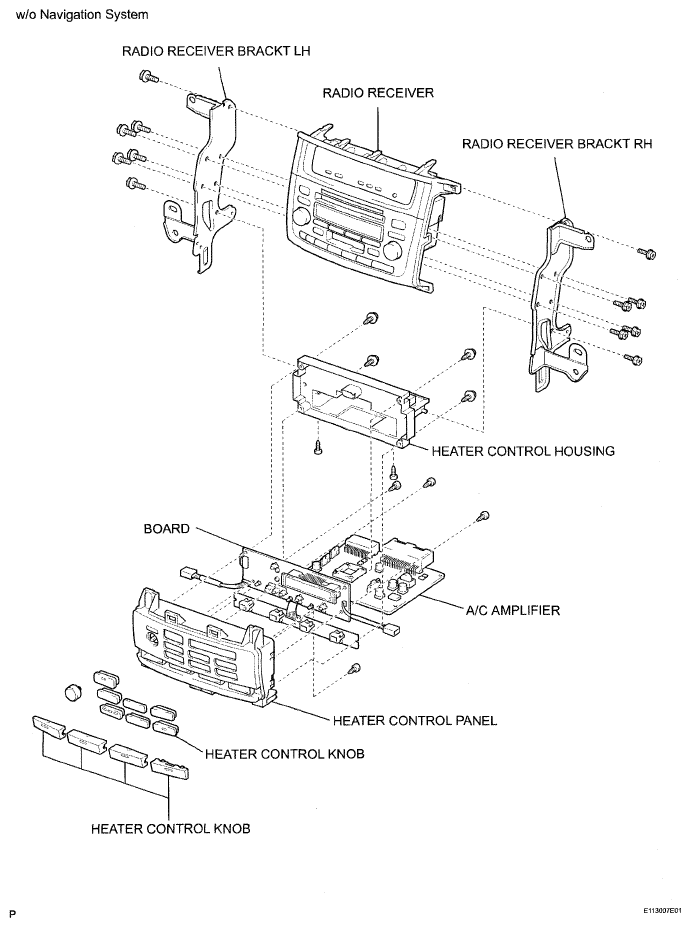

Fig 3: Identifying Air Conditioning Control Assembly Components (3 Of 3)
G05284348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
