System Diagram

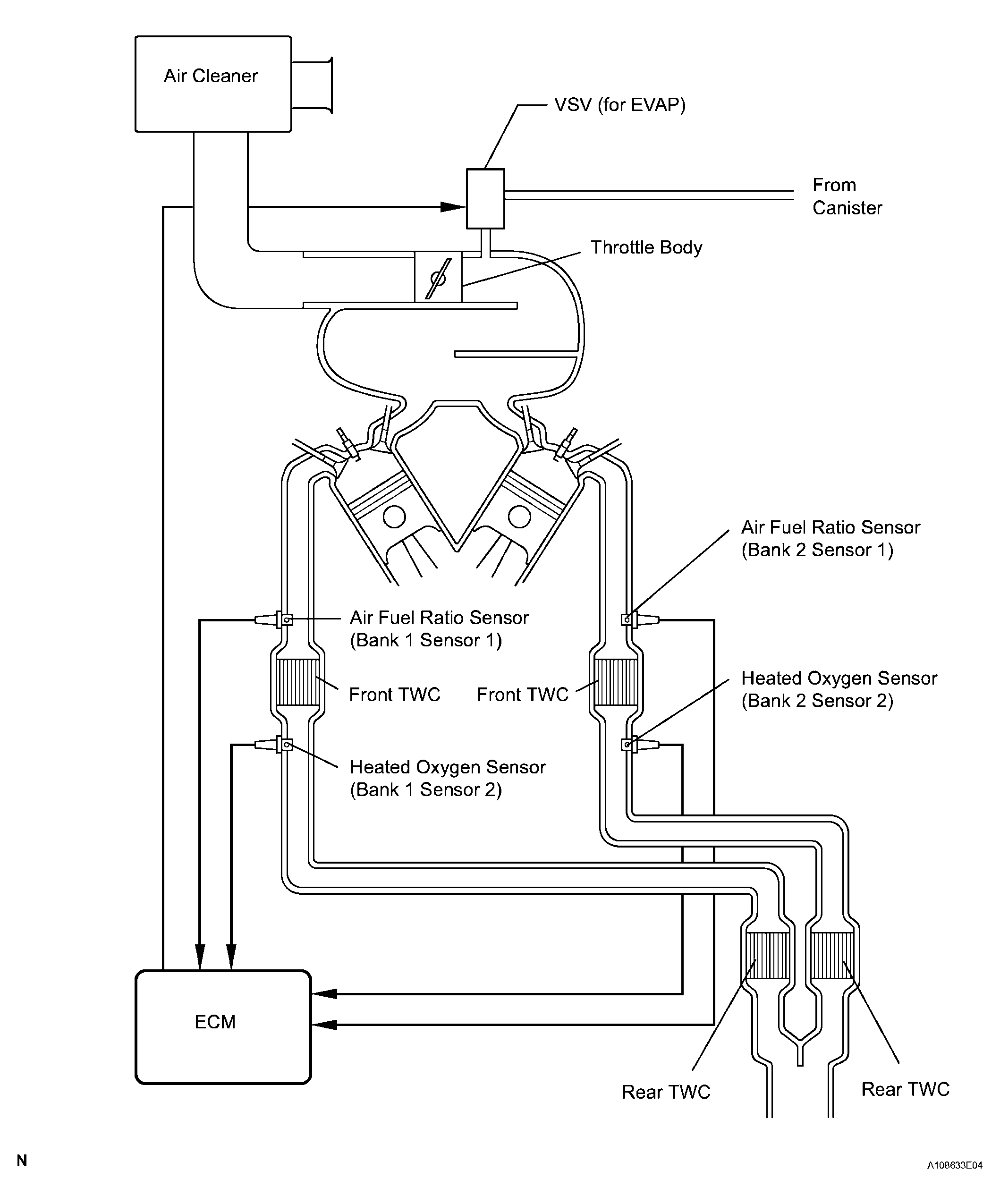

  1. EMISSION CONTROL SYSTEM DIAGRAM
    Fig 1: System Diagram - Emission Control System
    G04057689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

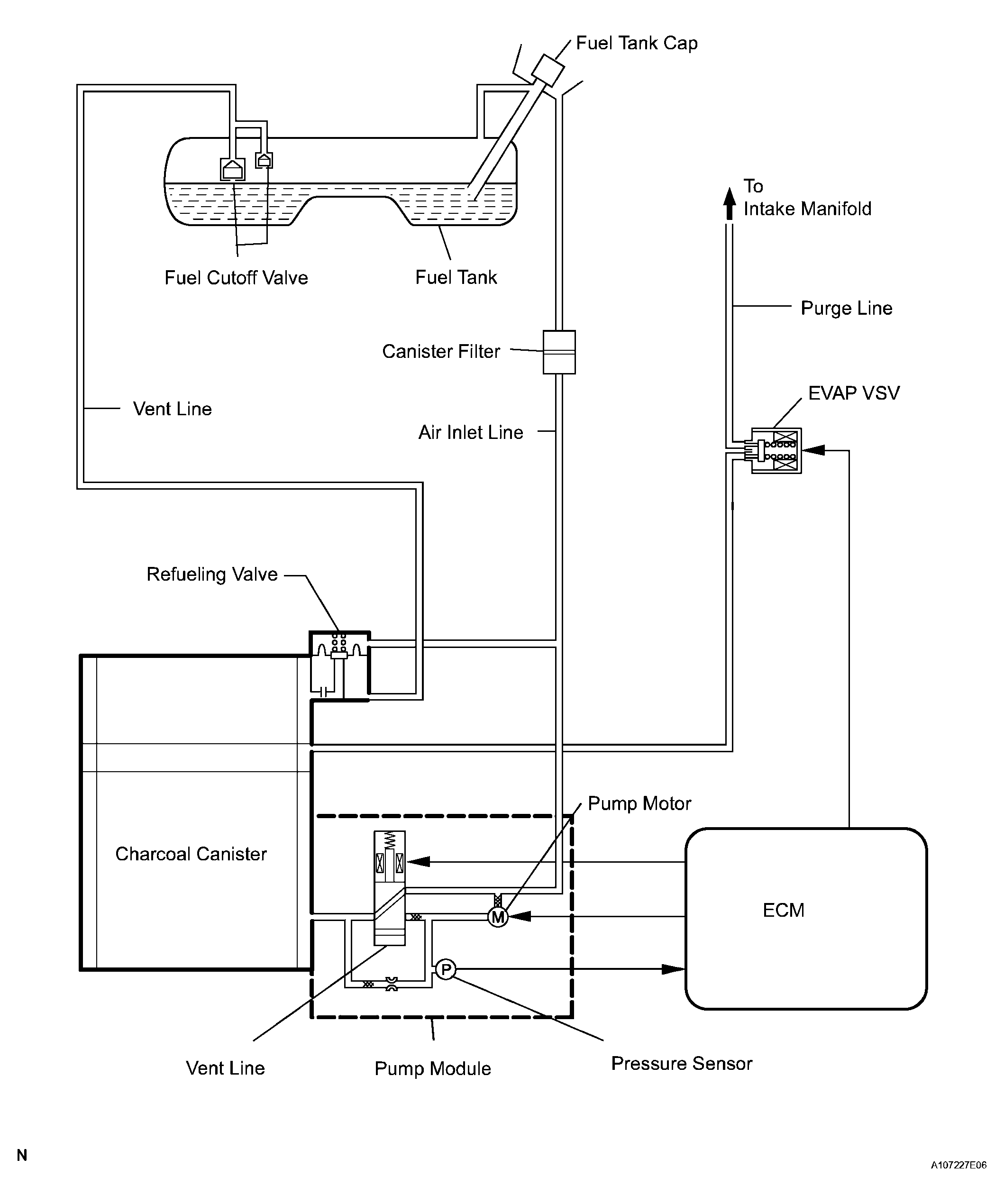

  2. EVAP CONTROL SYSTEM DIAGRAM
    Fig 2: EVAP Control System Diagram
    G04057690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

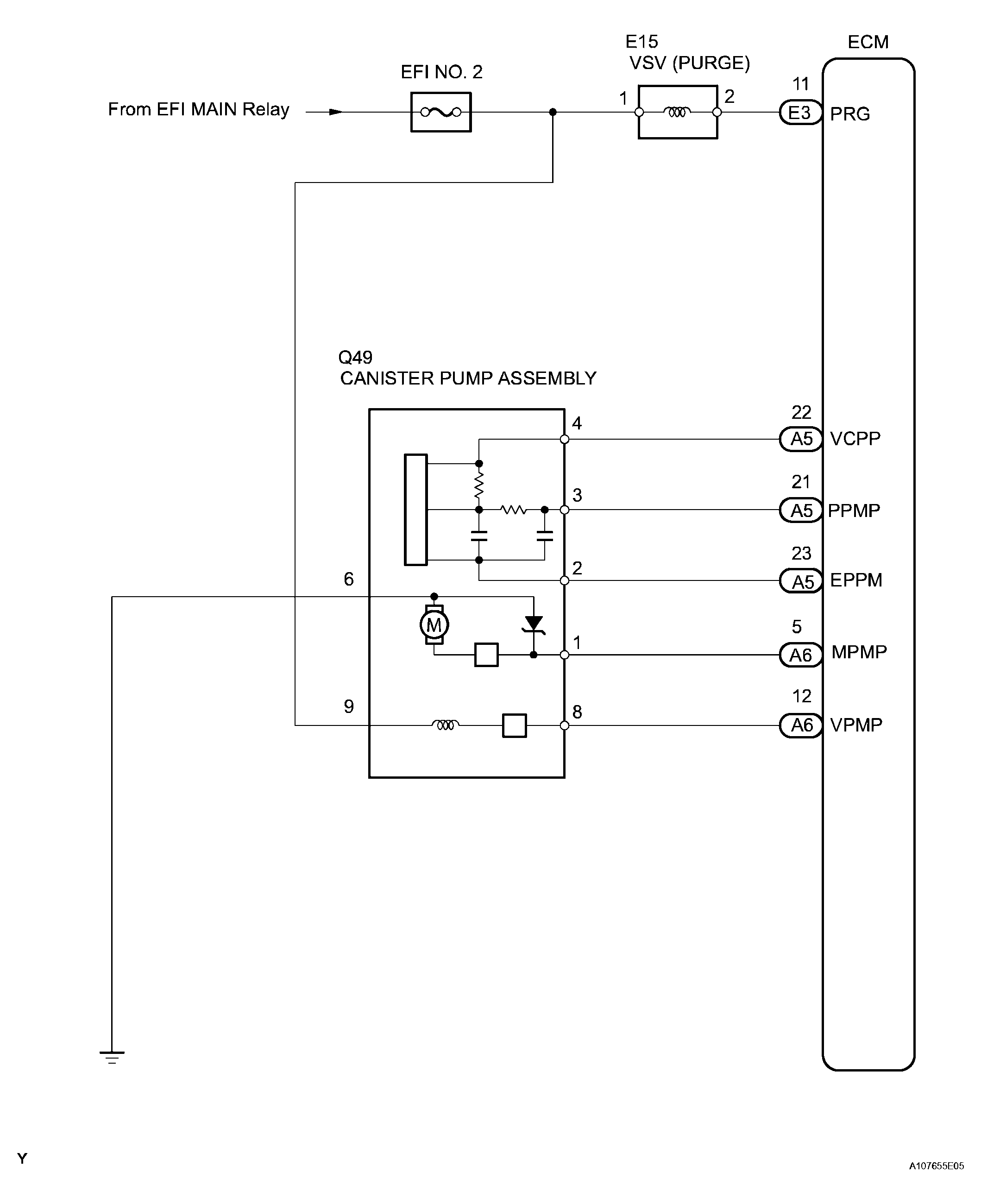

  3. EVAP SYSTEM WIRING DIAGRAM
    Fig 3: EVAP System Wiring Diagram
    G04057691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

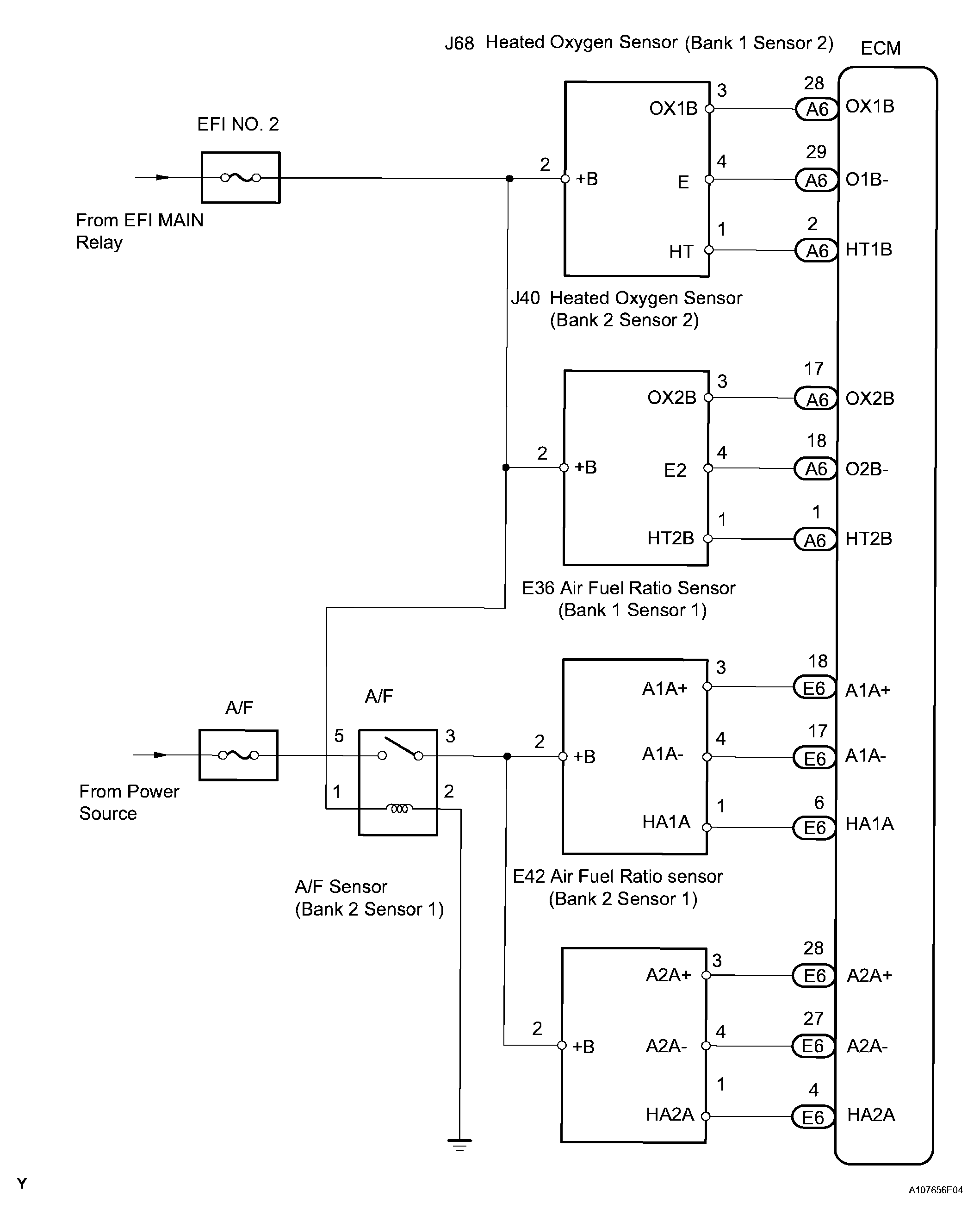

  4. EMISSION CONTROL SYSTEM WIRING DIAGRAM
    Fig 4: Wiring Diagram - Emission Control System
    G04057692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
