SKID CONTROL ECU (w/ VDIM): Installation

INSTALL SKID CONTROL ECU
1. Install the skid control ECU with the 3 screws.
  Torque: 4.8 N*m (49 kgf*cm, 42 in/lbf)

  HINT:
  - Align positioning boss (A) of the blower assembly with the hole of the skid control ECU.
  - Securely engage the hook (B) of the skid control ECU with the blower assembly.

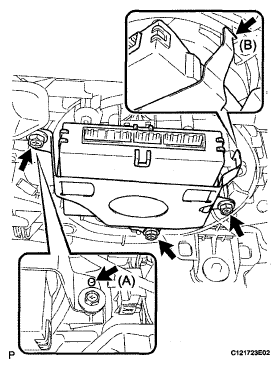

    Fig 1: Identifying Skid Control ECU Screws With Boss And Hook
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 3 connectors to the skid control ECU.

  Fig 2: Identifying Skid Control ECU Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See INSTALLATION )
CHECK AND CLEAR DTC
HINT:

(See DTC CHECK/CLEAR )
