Transmission Control Switch: Components

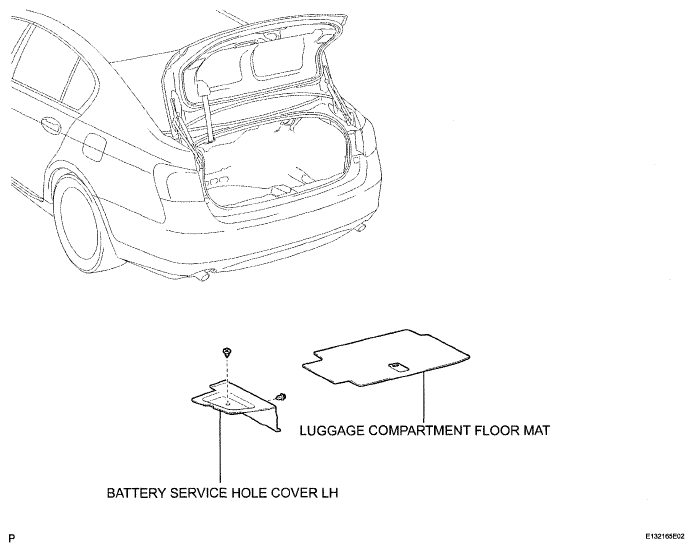

Fig 1: Identifying Transmission Control Switch Components (1 Of 4)
G05305170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Transmission Control Switch Components (2 Of 4)
G05305125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

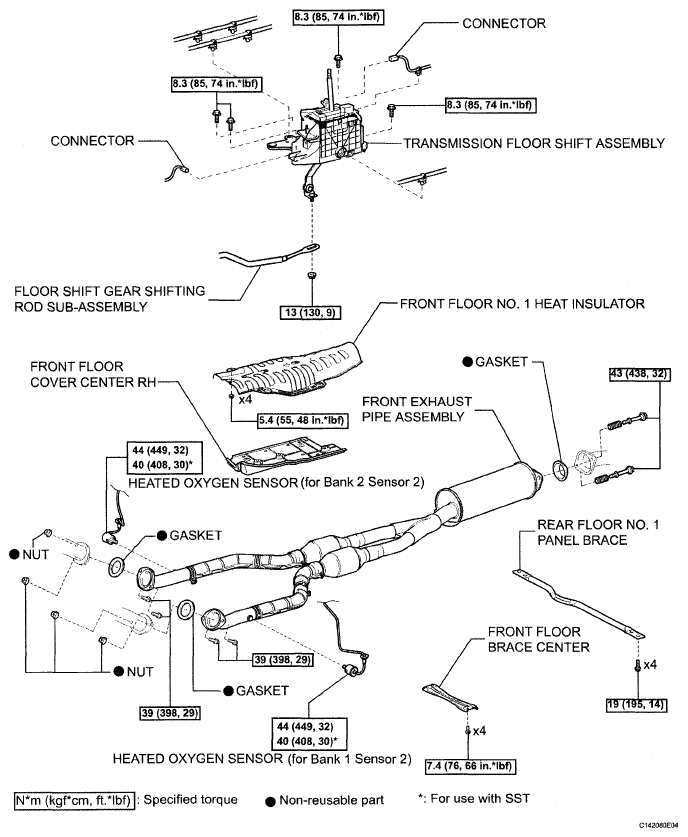

Fig 3: Transmission Control Switch Replacement Components With Torque Specifications (3 Of 4)
G05305126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

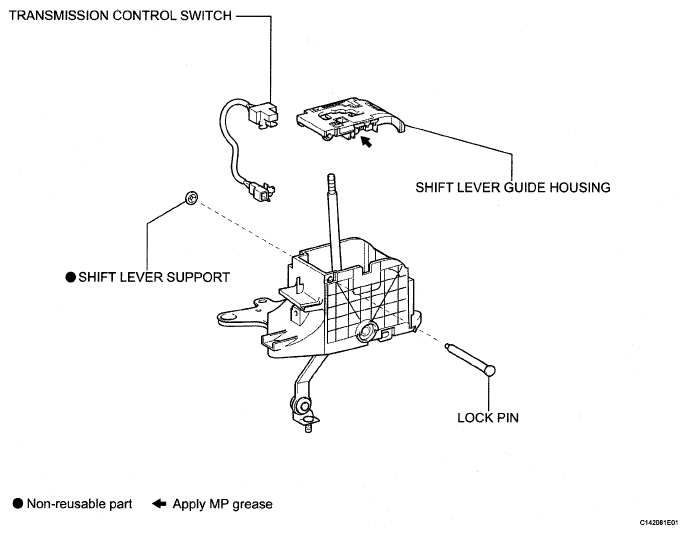

Fig 4: Identifying Transmission Control Switch Components (4 Of 4)
G05305173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
