Shift Lever: Components

Fig 1: Identifying Shift Lever Components (1 Of 4)
G05305015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Shift Lever Components (2 Of 4)
G05305125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Transmission Control Switch Replacement Components With Torque Specifications (3 Of 4)
G05305126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

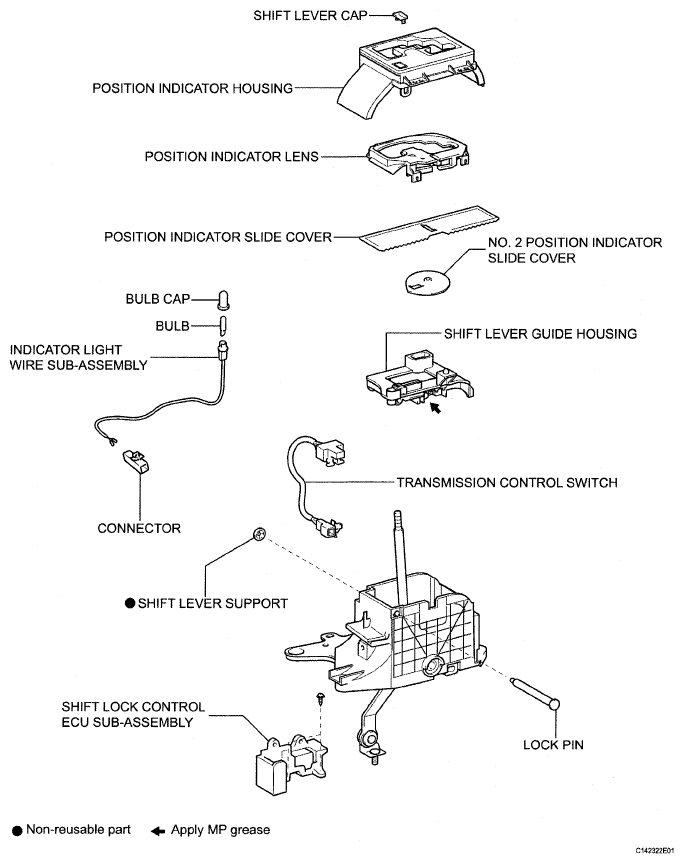

Fig 4: Identifying Shift Lever Components (4 Of 4)
G05305127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
