Steering Gear: Components

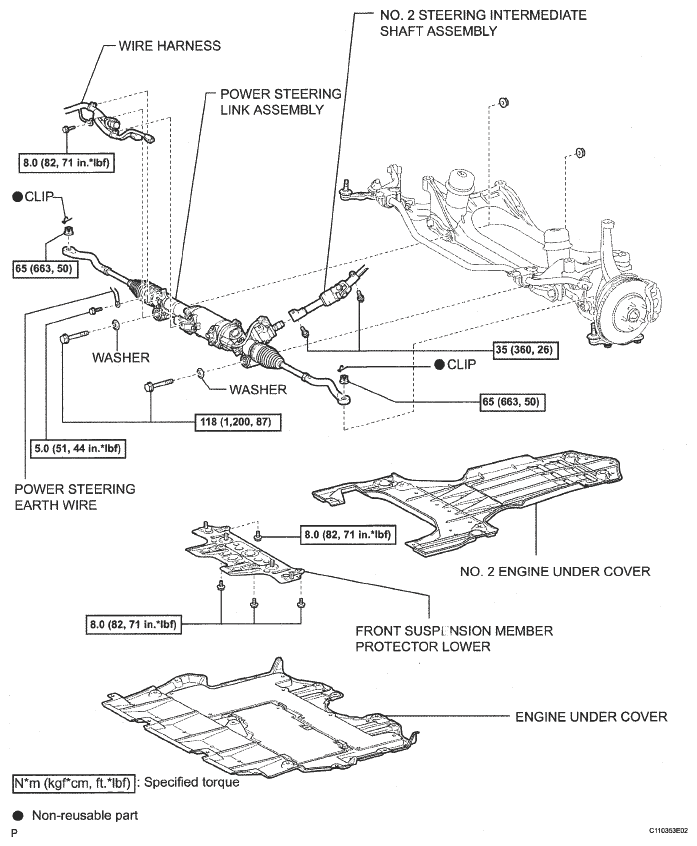

Fig 1: Steering Gear Replacement Components With Torque Specifications (1 Of 2)
G05306431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

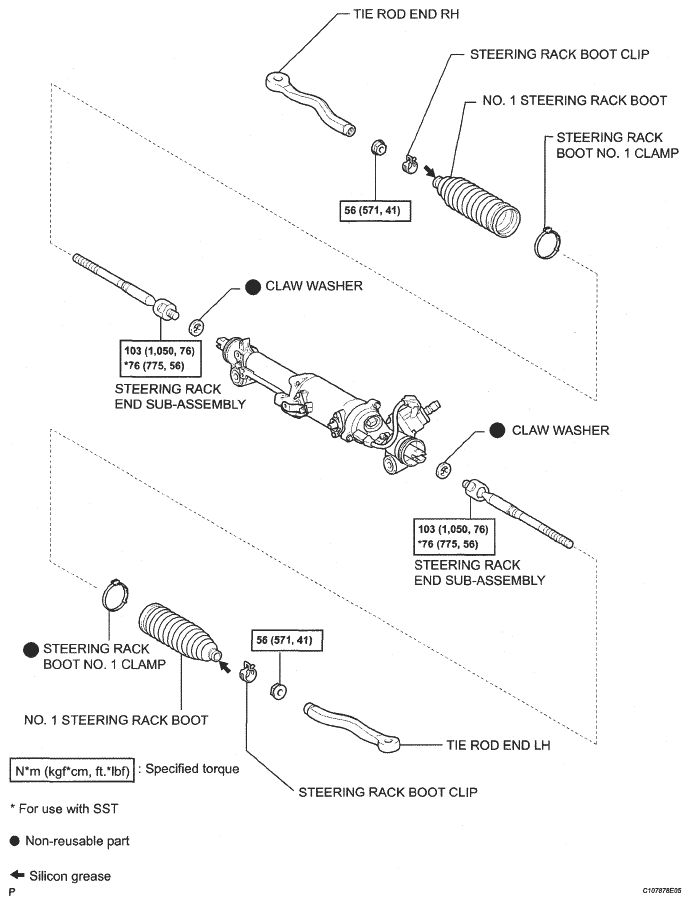

Fig 2: Steering Gear Replacement Components With Torque Specifications (2 Of 2)
G05306432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
