HV Converter: Components

Fig 1: Identifying HV Converter Components (1 Of 2)
G05304955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

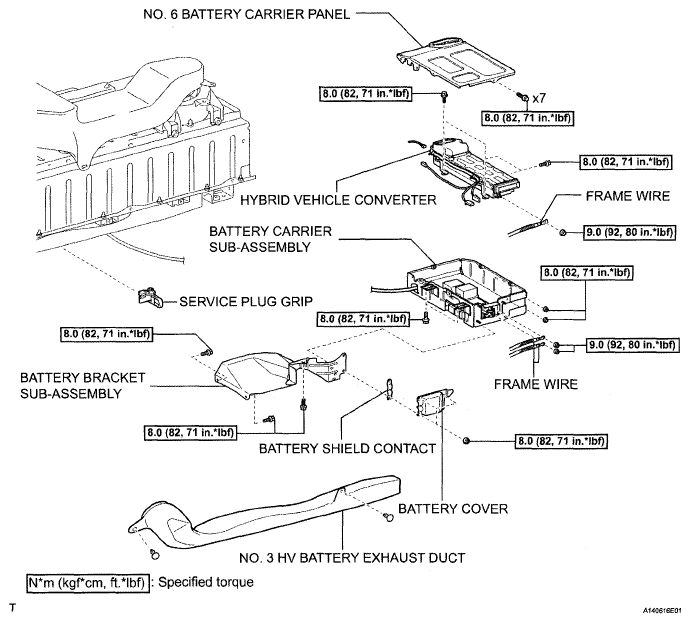

Fig 2: HV Converter Replacement Components With Torque Specifications (2 Of 2)
G05304997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
