HV Battery: Components

Fig 1: HV Battery Components With Torque Specification (1 Of 3)
G05304888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: HV Battery Components With Torque Specification (2 Of 3)
G05304889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

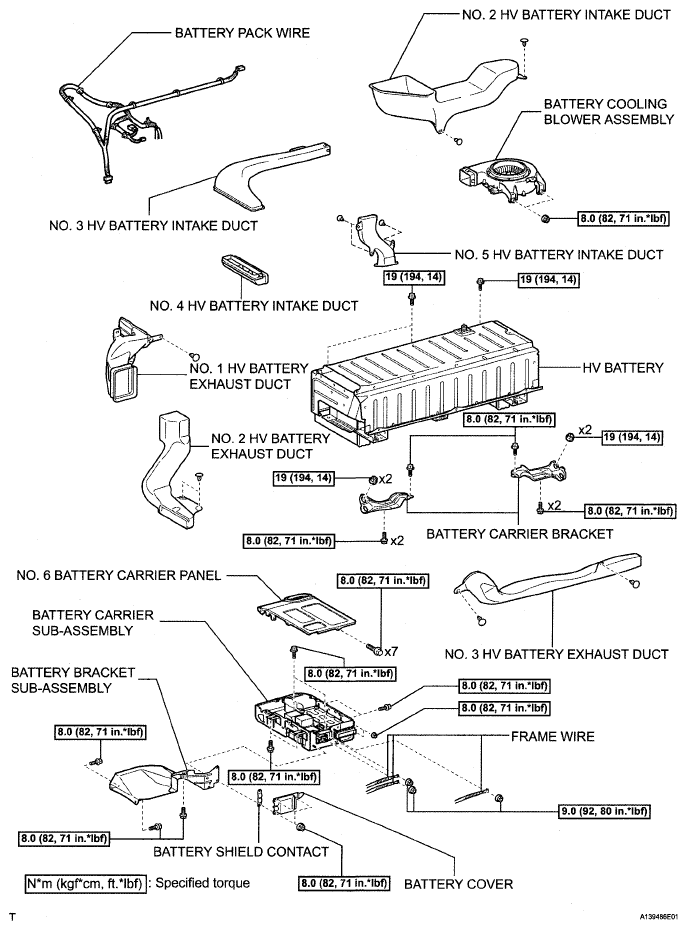

Fig 3: HV Battery Components With Torque Specification (3 Of 3)
G05304890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
