Water Pump: Components

Fig 1: Water Pump Replacement Components With Torque Specifications (1 Of 3)
G05303456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Water Pump Replacement Components With Torque Specifications (2 Of 3)
G05303457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

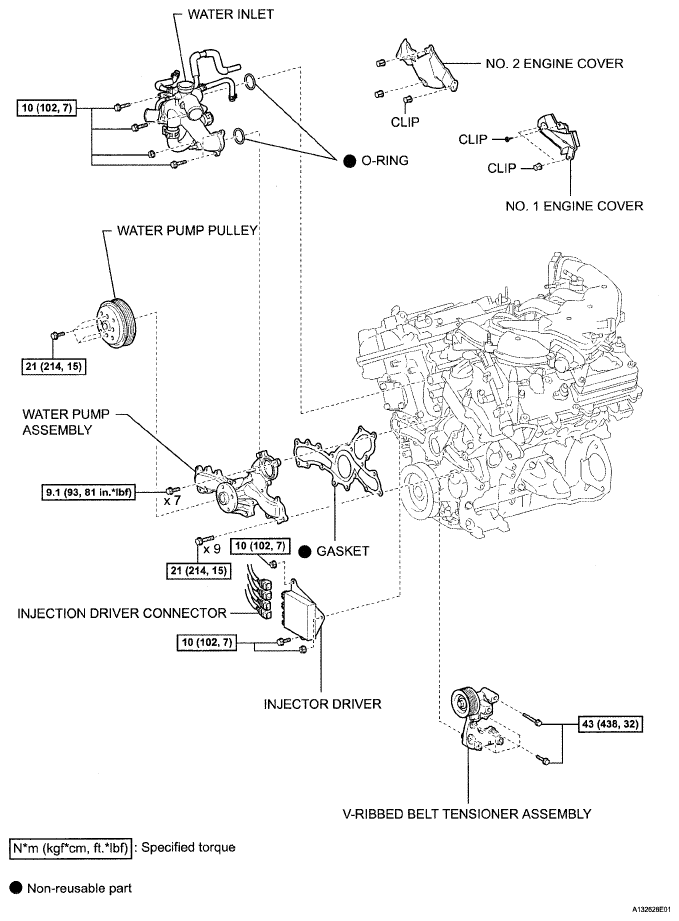

Fig 3: Water Pump Replacement Components With Torque Specifications (3 Of 3)
G05303458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
