Home >> Lexus >> 2007 >> GS 450h >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> Emission Control >> Fuel Vapor Containment Valve >> Components

Fuel Vapor Containment Valve: Components

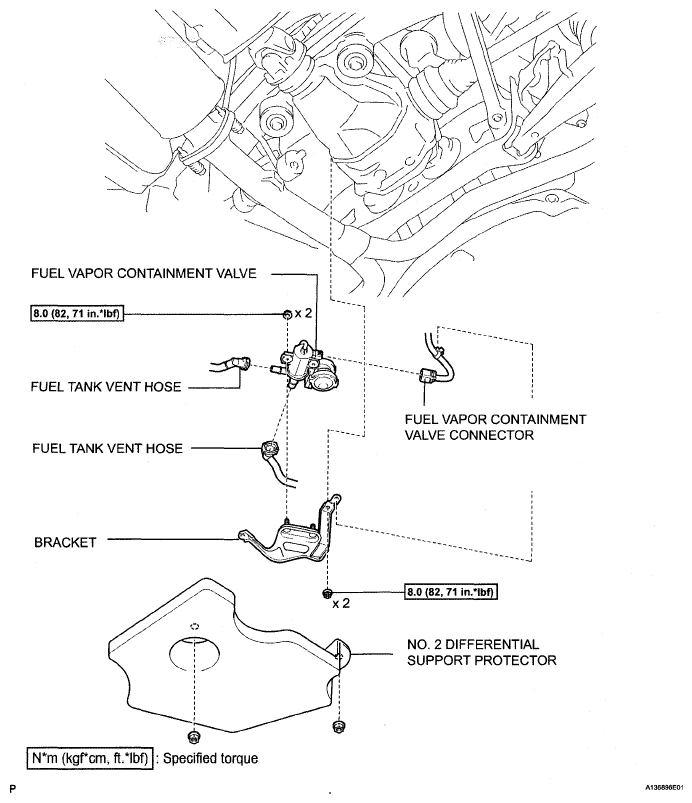

Fig 1: Fuel Vapor Containment Valve Replacement Components With Torque Specifications

G05303419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
