Room Oscillator does not Recognize Key: Wiring Diagram

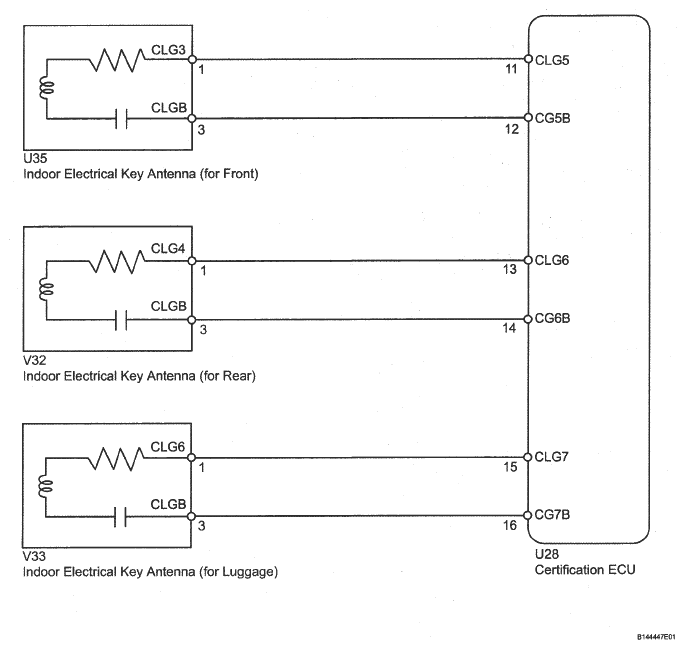

Fig 1: Room Oscillator Does Not Recognize Key - Wiring Diagram

G05311054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
