Navigation Antenna: Components

Fig 1: Navigation Antenna Replacement Components With Torque Specifications (1 Of 5)
G05314714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

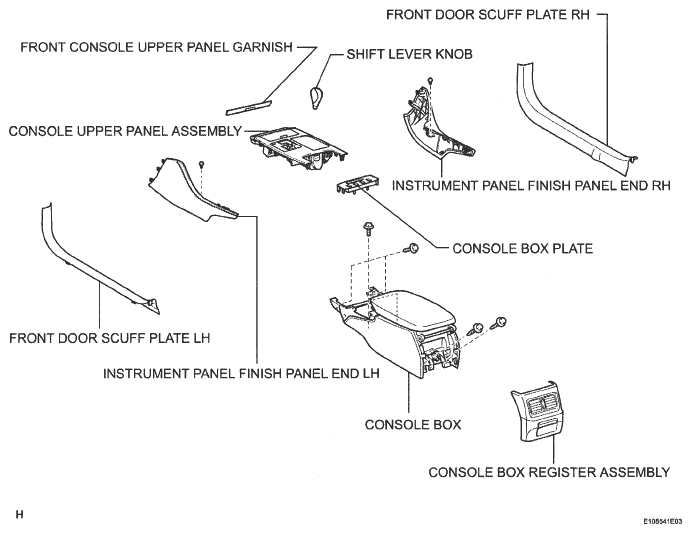

Fig 2: Identifying Navigation Antenna Components (2 Of 5)
G05314715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

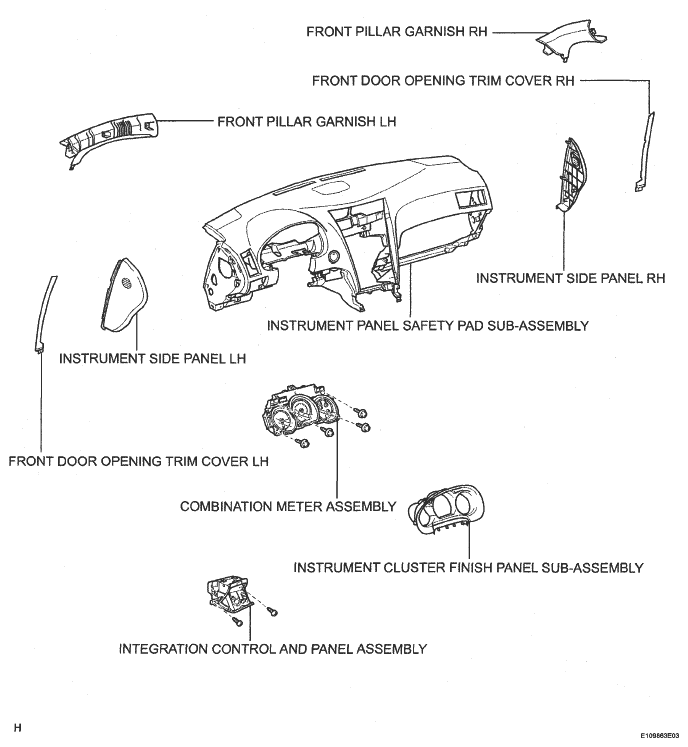

Fig 3: Identifying Navigation Antenna Components (3 Of 5)
G05314716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

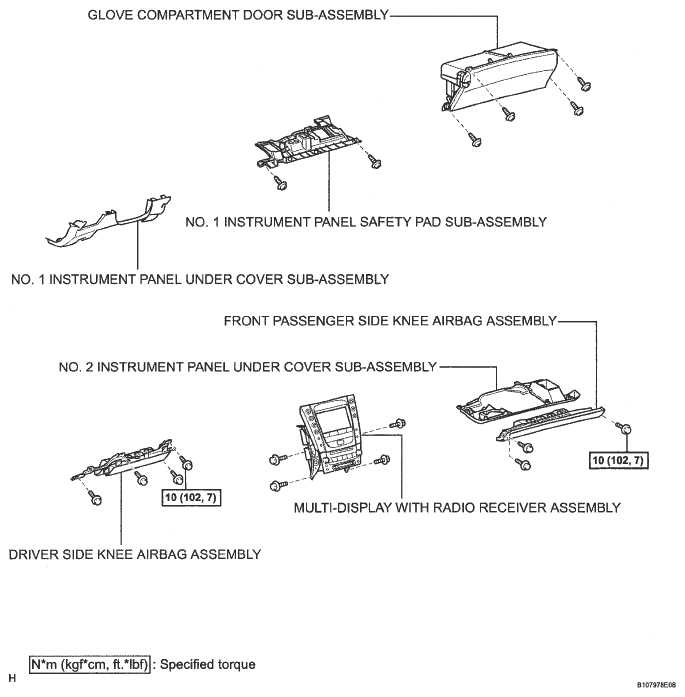

Fig 4: Navigation Antenna Replacement Components With Torque Specifications (4 Of 5)
G05314717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

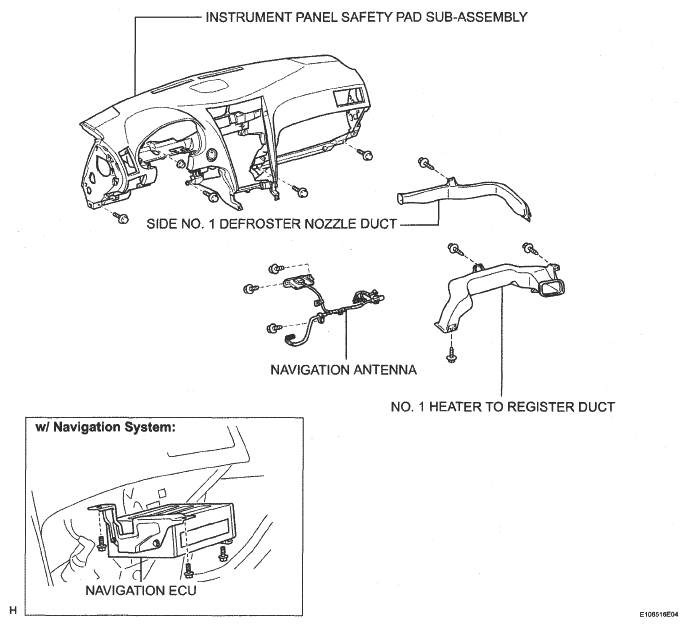

Fig 5: Identifying Navigation Antenna Components (5 Of 5)
G05314718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
