System Diagram

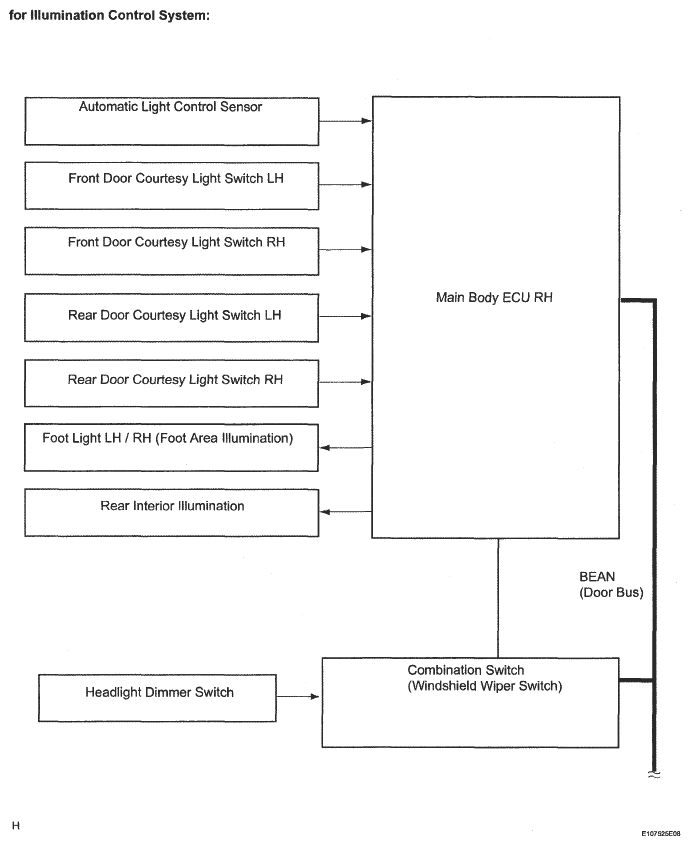

Fig 1: Lighting System Diagram (1 Of 4)
G05315520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

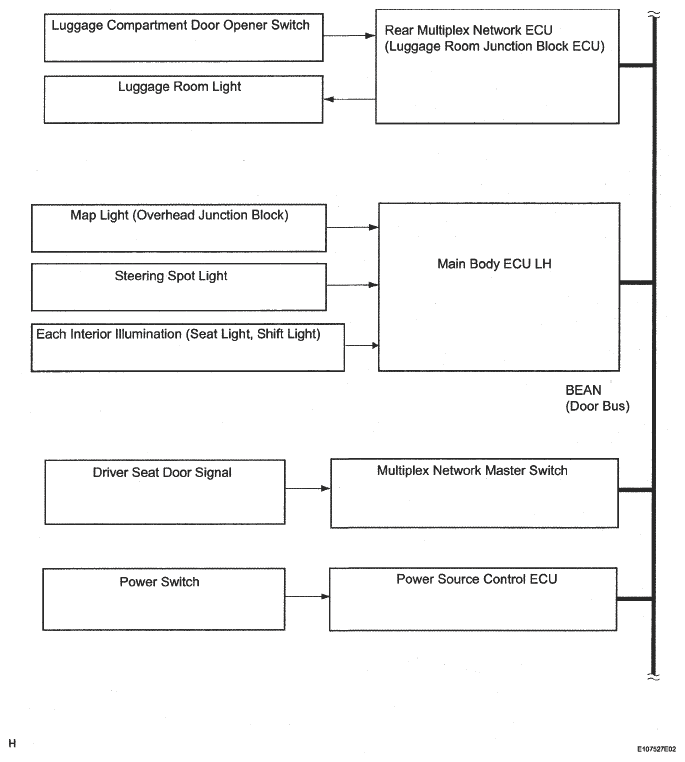

Fig 2: Lighting System Diagram (2 Of 4)
G05315521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

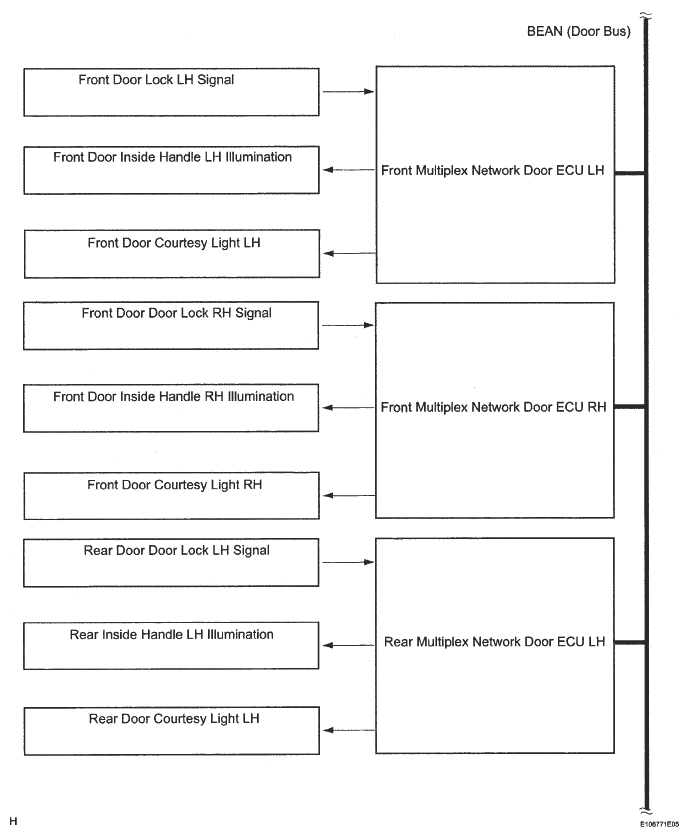

Fig 3: Lighting System Diagram (3 Of 4)
G05315522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

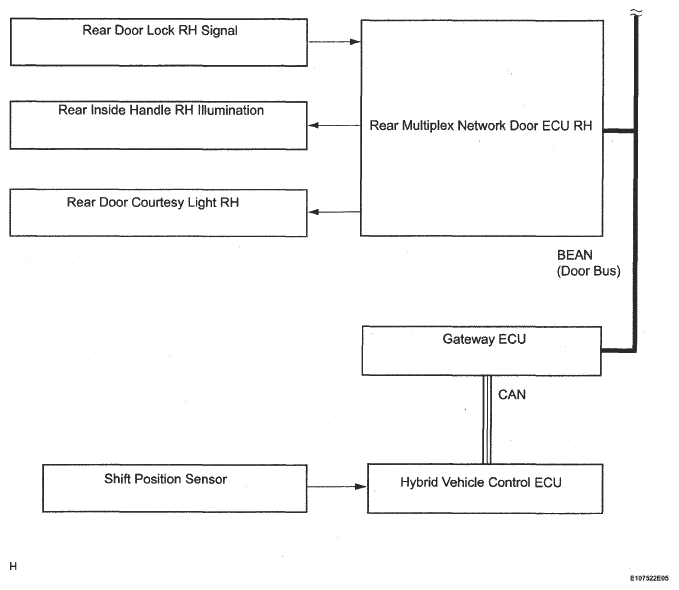

Fig 4: Lighting System Diagram (4 Of 4)
G05315523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

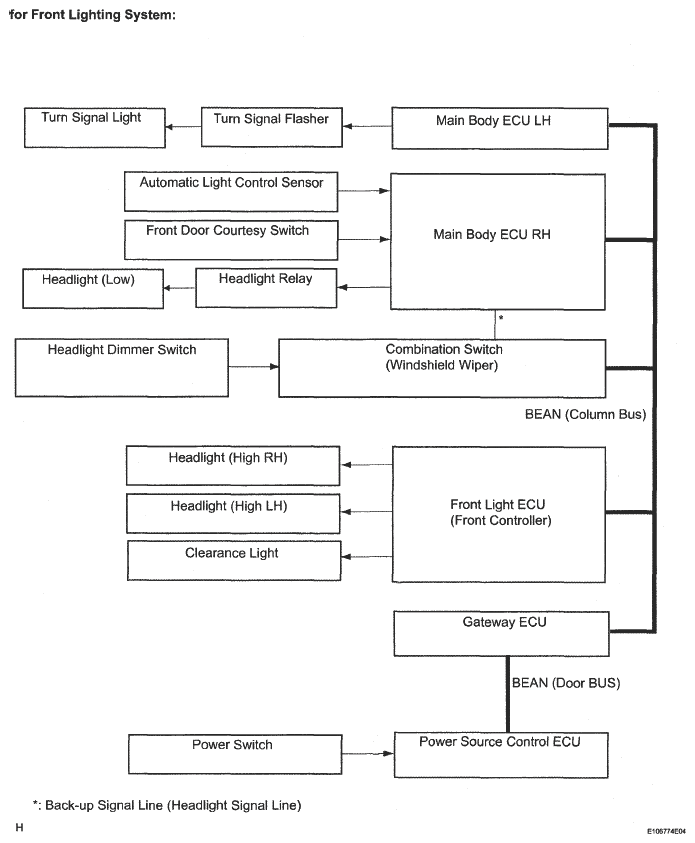

Fig 5: Front Lighting System Diagram
G05315524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

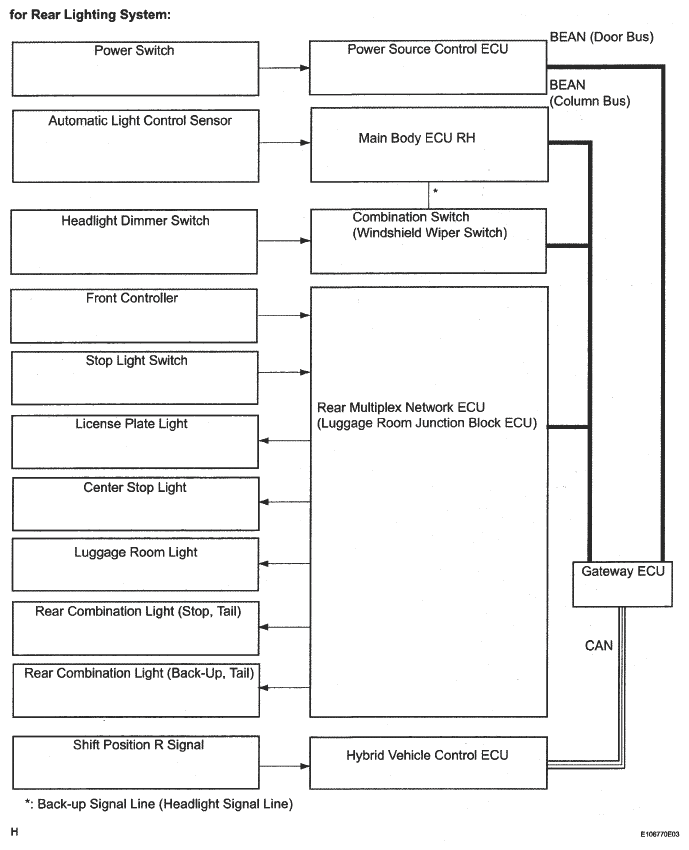

Fig 6: Rear Lighting System Diagram
G05315525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

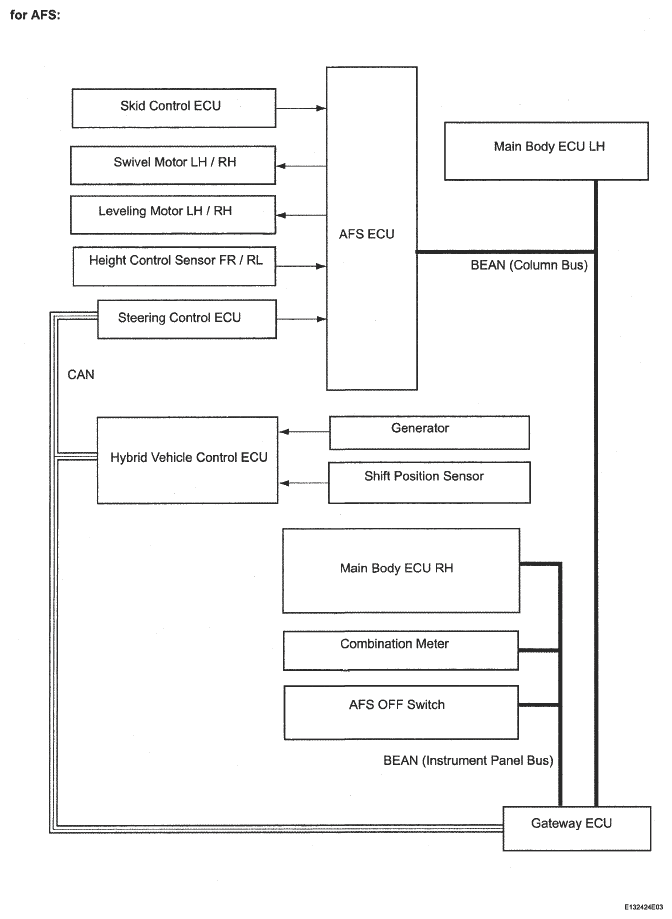

Fig 7: Lighting System Diagram For AFS
G05315526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
