Height Control Sensor Circuit: Wiring Diagram

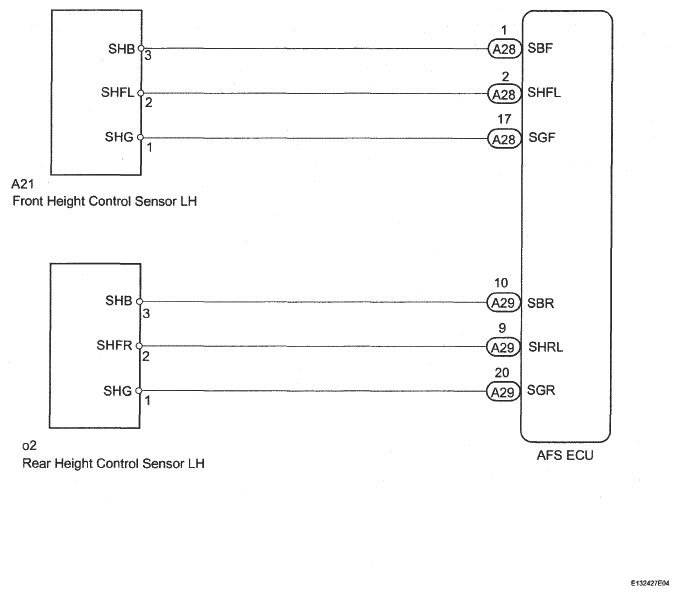

Fig 1: Height Control Sensor - Wiring Diagram

G05315664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
