Fog Light Assembly: Components

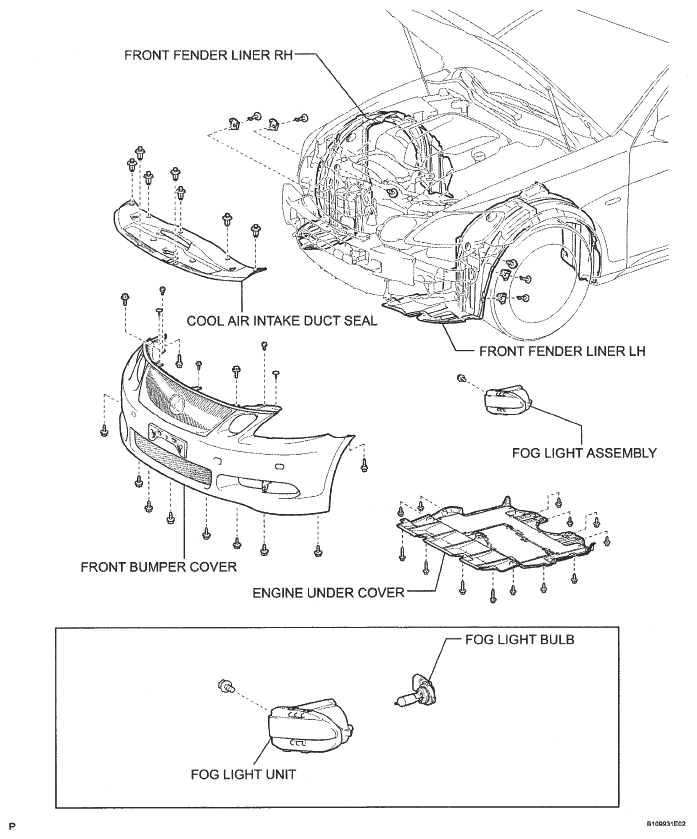

Fig 1: Identifying Fog Light Assembly Components

G05315710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
