Rear Speaker: Components

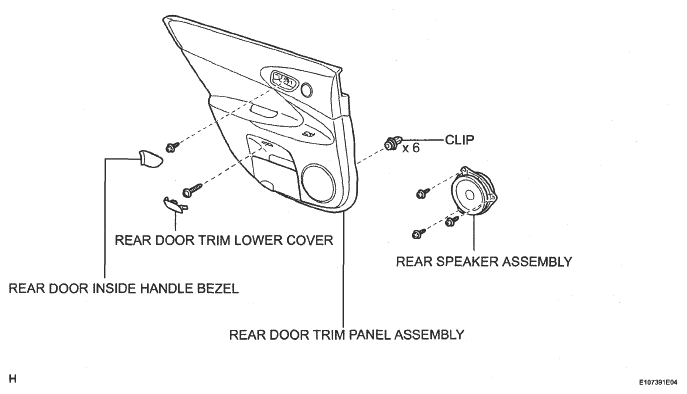

Fig 1: Identifying Rear Speaker Components

G05311555

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
