Extension Housing Rear Oil Seal: Components

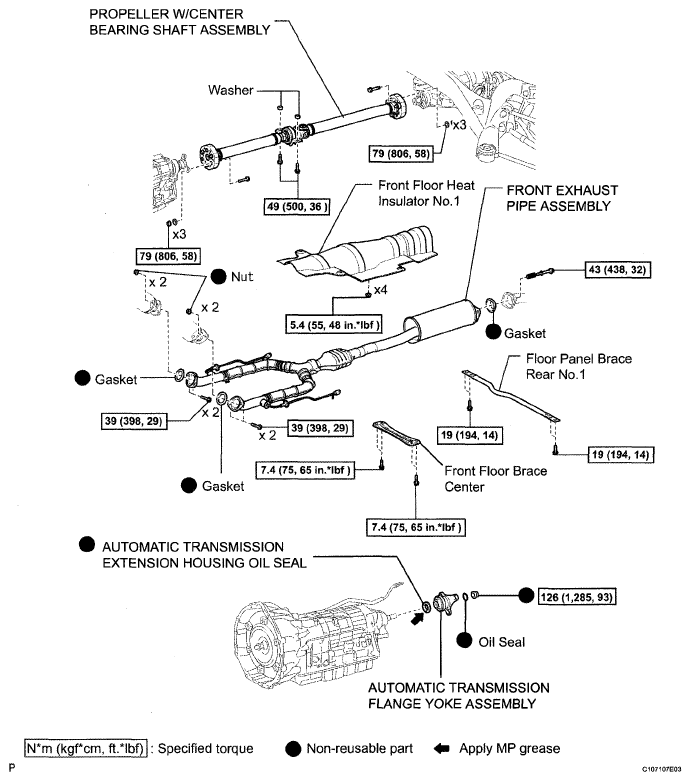

Fig 1: Extension Housing Rear Oil Seal Related Replacement Components With Torque Specifications

G05295310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
