Refrigerant Line: Components

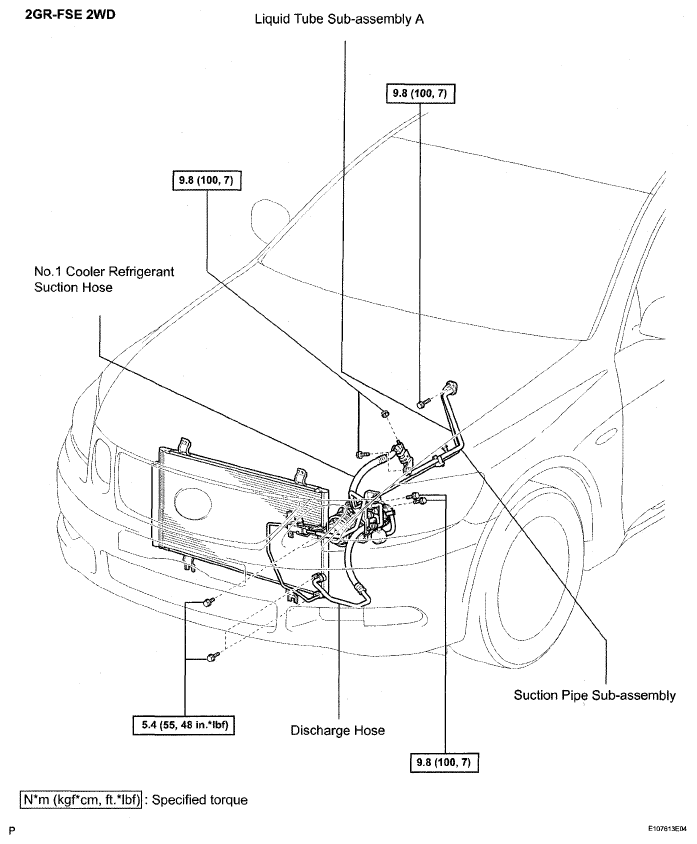

Fig 1: Refrigerant Line Replacement Components With Torque Specifications (1 Of 3)
G05297821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

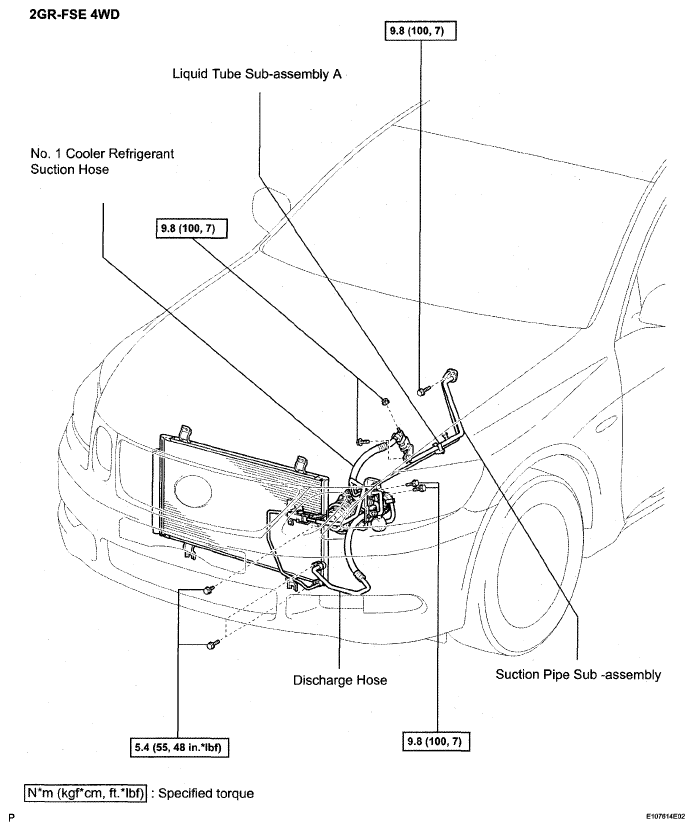

Fig 2: Refrigerant Line Replacement Components With Torque Specifications (2 Of 3)
G05297822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

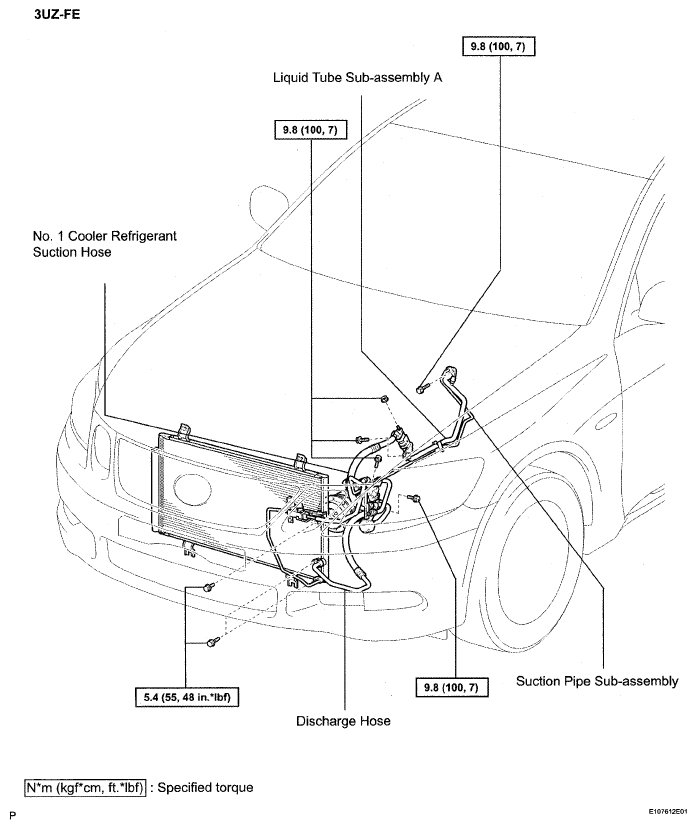

Fig 3: Refrigerant Line Replacement Components With Torque Specifications (3 Of 3)
G05297823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
