Section 12 (Starting (2GR-FSE)): Starter: Components

WARNING: This page is about a different car, the 2007 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

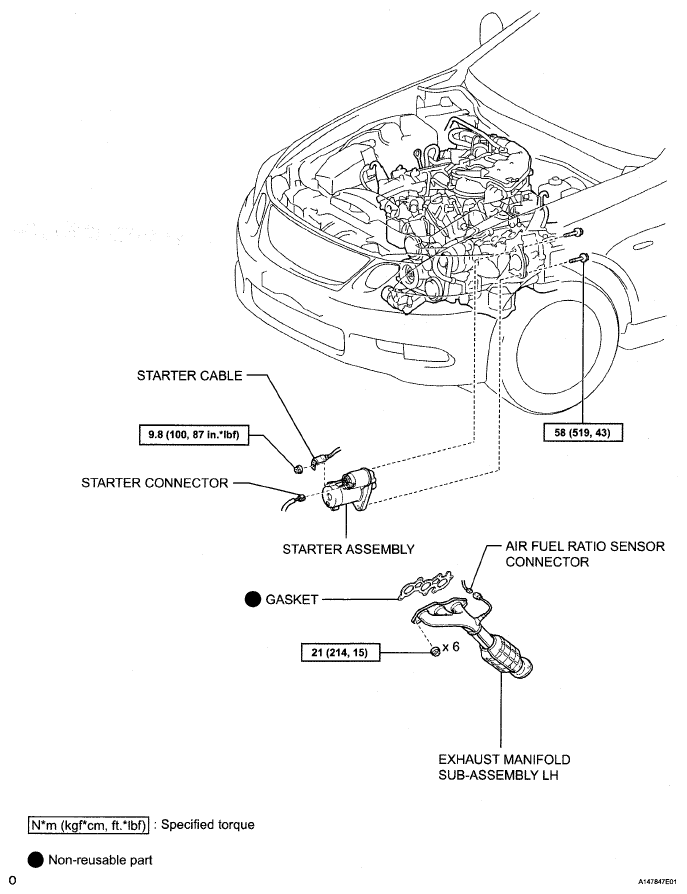

Fig 1: Starter Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

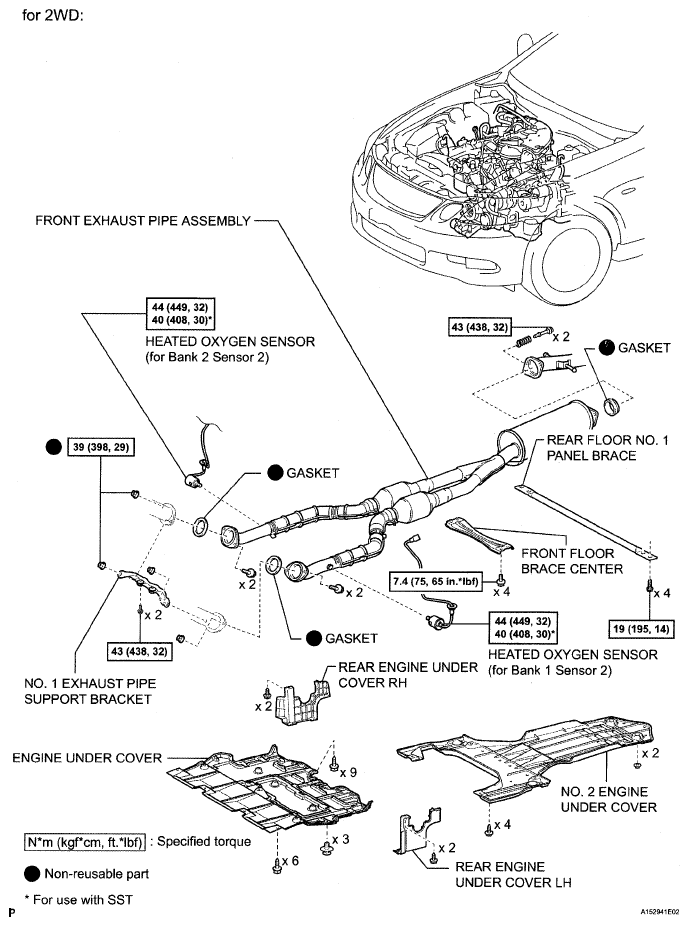

Fig 2: Identifying Starter Components - For 2WD (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Starter Components - For 4WD (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

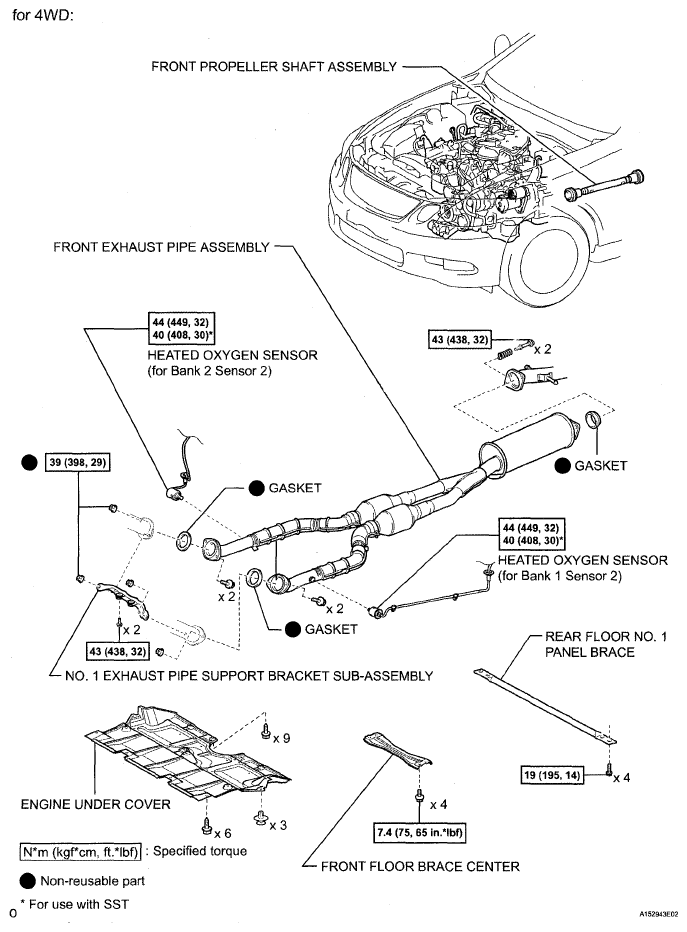

Fig 4: Starter Replacement Components With Torque Specifications - For 4WD (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Starter Replacement Components With Torque Specifications - For 2WD (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Starter Replacement Components With Torque Specifications - For 4WD (6 Of 8)

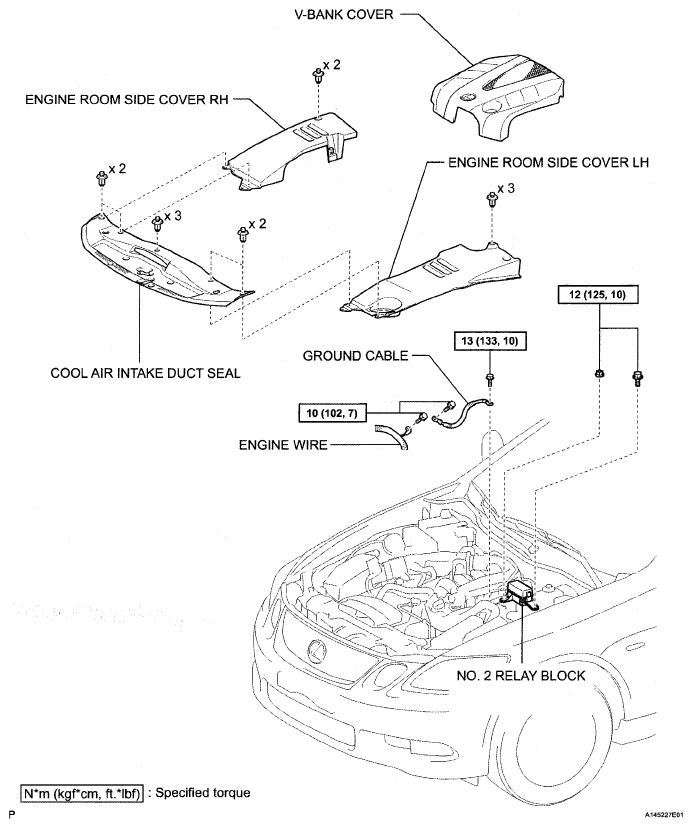

Fig 7: Starter Replacement Components With Torque Specifications (7 Of 8)

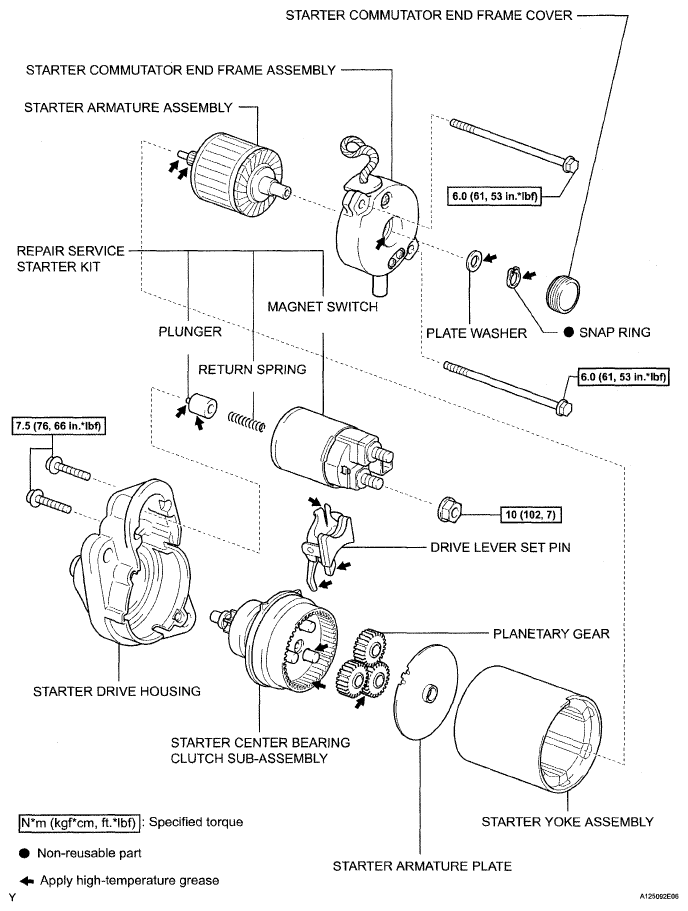

Fig 8: Starter Replacement Components With Torque Specifications (8 Of 8)
