Parts Location

WARNING: This page is about a different car, the 2007 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

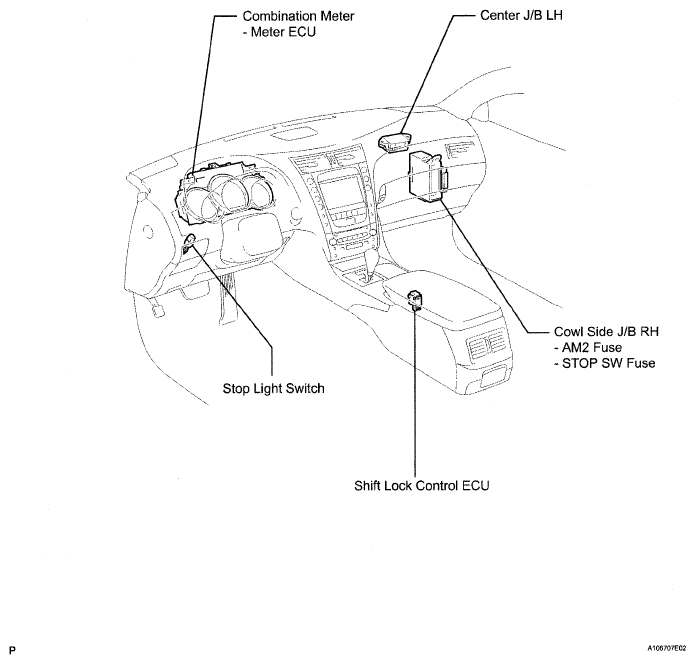

Fig 1: Identifying Smart Access System With Push Button Start Parts Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Smart Access System With Push Button Start Parts Location (2 Of 3)

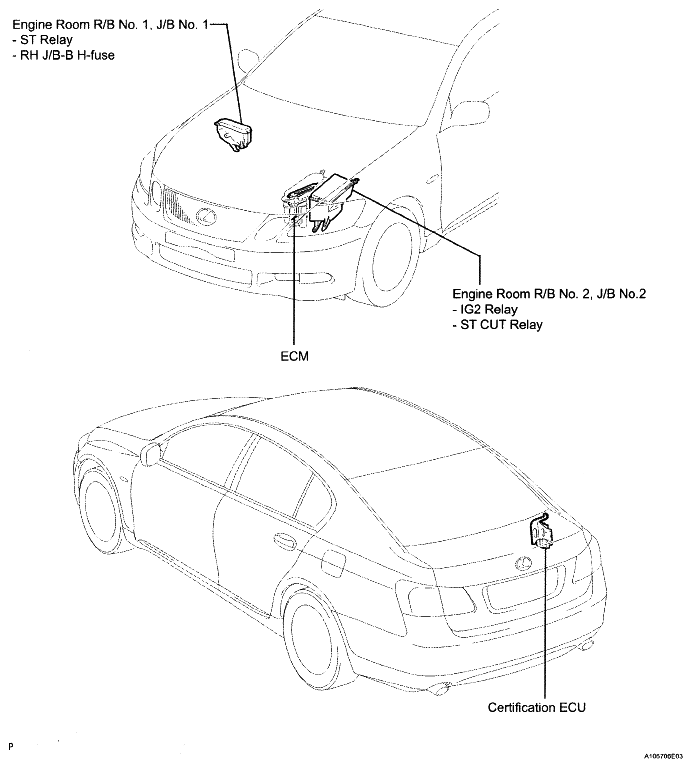

Fig 3: Identifying Smart Access System With Push Button Start Parts Location (3 Of 3)
