Engine Switch: Components

WARNING: This page is about a different car, the 2007 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

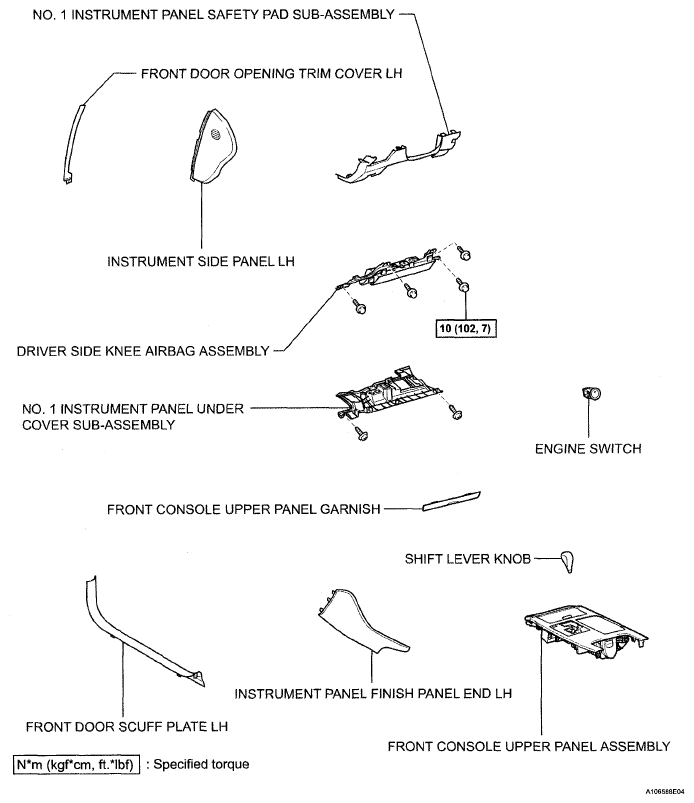

Fig 1: Engine Switch Replacement Components With Torque Specifications
G05287835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
