Home >> Lexus >> 2007 >> GS 430 >> Repair and Diagnosis >> Accessories & Equipment >> Warning Systems >> Park Assist/Monitoring >> Clearance Warning Ecu >> Components

Clearance Warning Ecu: Components

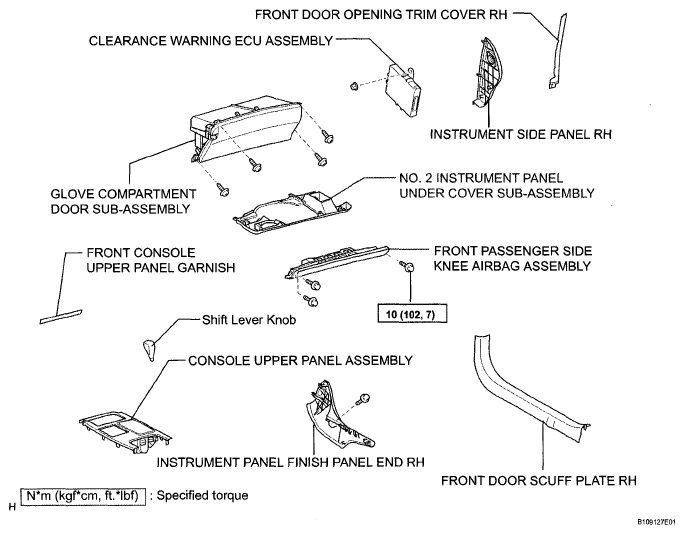

Fig 1: Clearance Warning ECU Replacement Components With Torque Specifications

G05299995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
