Inspection Procedure

1. Disconnect the W4 sensor connector.
2. Disconnect the W8 junction block connector.
3. Measure the resistance of the wire harness side connectors.

   Standard Resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   W4-1 (SIG) - W8-10 (IG2)	Below 1 Ω
   W4-2 (MPX) - W8-9 (MPX1)	Below 1 Ω
   W4-3 (ES) - W8-17 (GND2)	Below 1 Ω

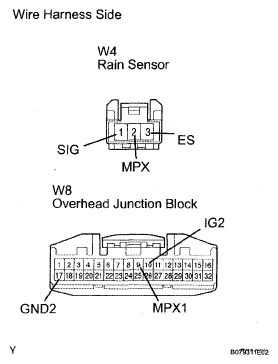

Fig 1: Identifying Rain Sensor And Overhead Junction Block Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE RAIN SENSOR
