DTC B2273 Ignition 2 Monitor Malfunction: Wiring Diagram

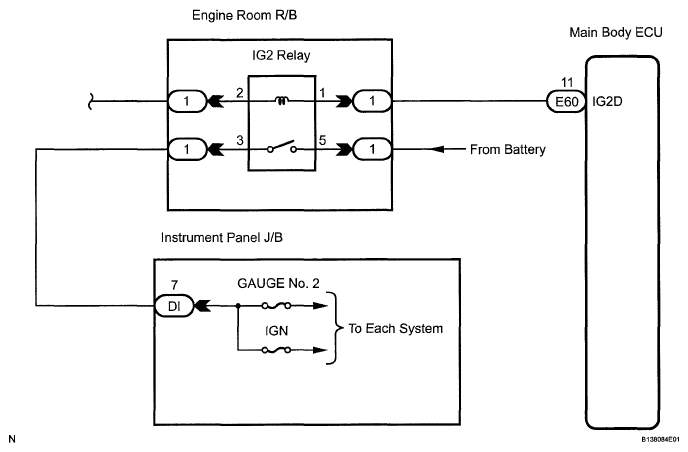

Fig 1: Ignition 2 Relay - Wiring Diagram

G05248825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
