3MZ-FE Cooling: SST
SPECIAL TOOL SPECIFICATION
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09213-54015 |
Crankshaft Pulley Holding Tool |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

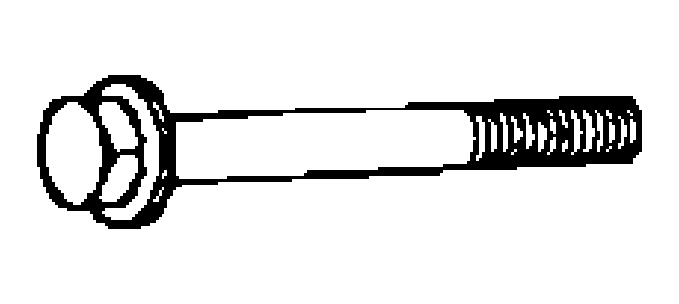

(91651-60855) |

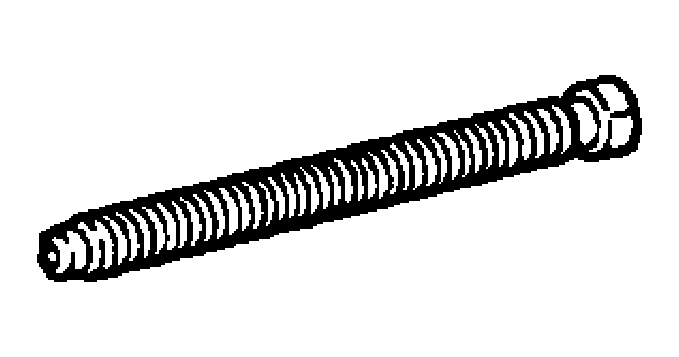

Bolt |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09249-63010 |
Torque Wrench Adaptor |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09330-00021 |
Companion Flange Holding Tool |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09950-50013 |

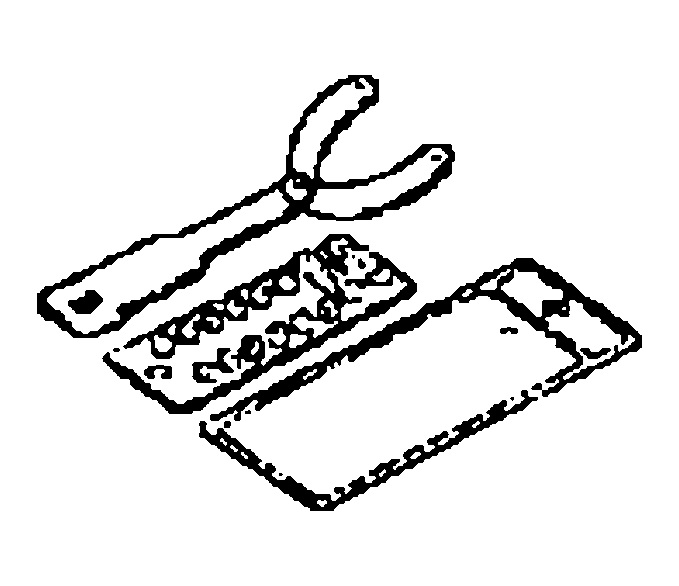

Puller C Set |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

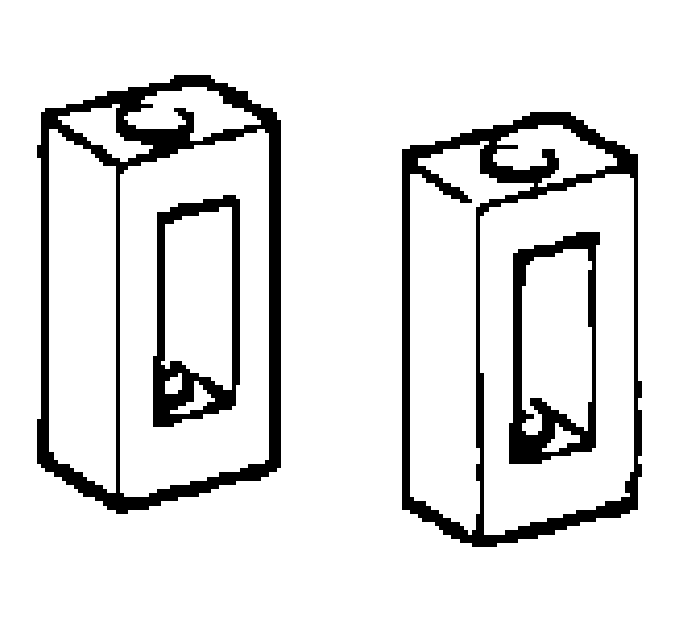

(09951-05010) |
Hanger 150 |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

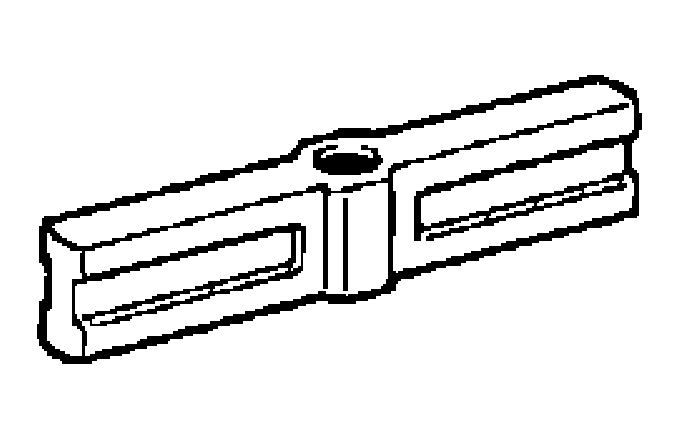

(09952-05010) |
Slide Arm |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

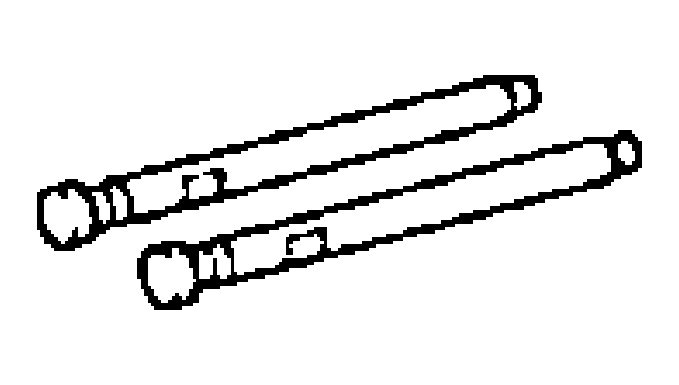

(09953-05020) |
Center Bolt 150 |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09954-05031) |
Claw No.3 |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09960-10010 |
Variable Pin Wrench Set |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09962-01000) |

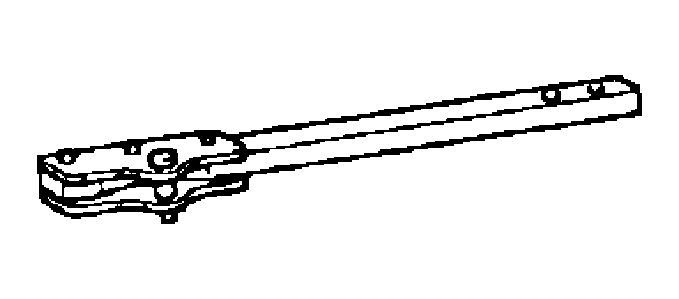

Variable Pin Wrench Arm Assembly |
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

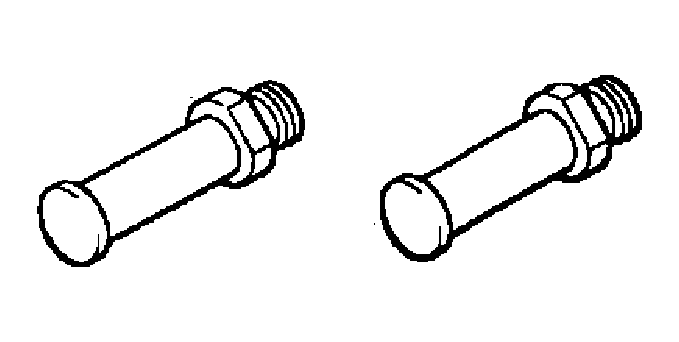

(09963-01000) |
Pin 10 |
|
