Terminals Of Ecu
WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
- RADIO RECEIVER (10 SPEAKER SYSTEM)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

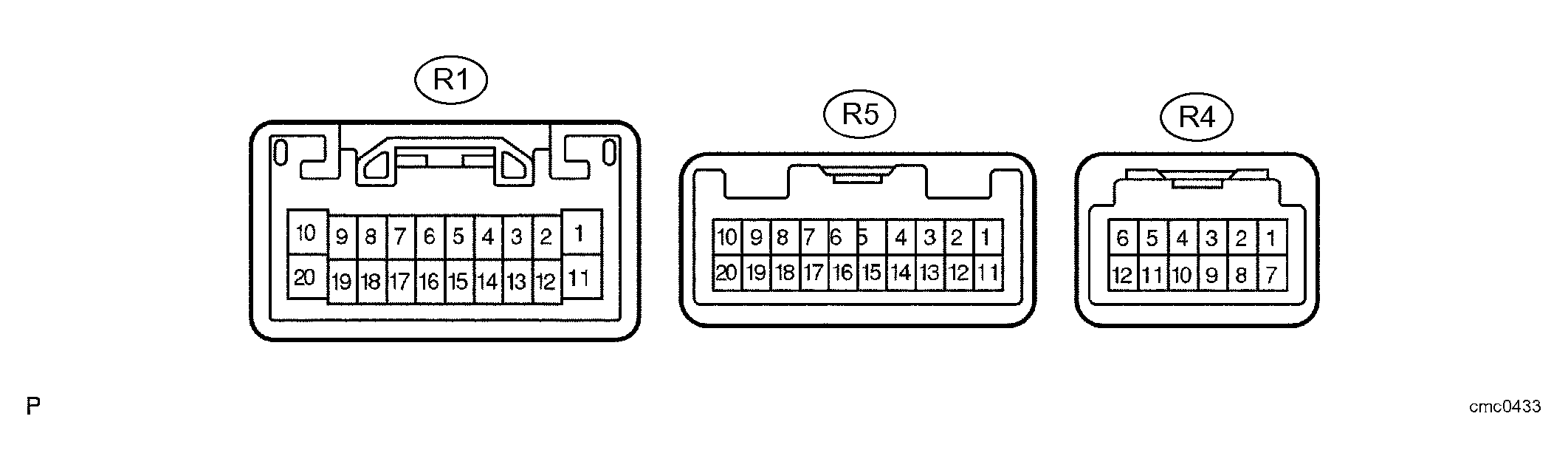

TERMINAL DESCRIPTION AND SPECIFICATIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specification B (R1-1) - GND (R1-20) L-Y - BR Battery Always 10 to 14 V ILL+ (R1-2) - GND (R1-20) G - BR Illumination signal Light control switch OFF --> TAIL Below 1 V --> 10 to 14 V ATX+ (R1-5) - GND (R1-20) B - BR AVC-LAN communication signal Turn ignition switch to ACC 2 to 3 V MUTE (R1-7) - GND (R1-20) W-R - BR MUTE signal Audio system is playing --> Changing Above 3.5 V --> Below 1 V R+ (R1-8) - GND (R1-20) B - BR Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output L+ (R1-9) - GND (R1-20) R - BR Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output SLD (R1-10) - Body ground Shielded - Body ground Shield ground Always Below 1 V ACC (R1-11) - GND (R1-20) GR - BR Accessory (ON) Turn ignition switch to ACC 10 to 14 V ILL- (R1-12) - GND (R1-20) W-G - BR Illumination (rheostat) signal Light control switch OFF --> TAIL Below 1 V --> Pulse generation ANT (R1-13) - GND (R1-20) B - BR Power source of antenna Radio switch ON and AM or FM 10 to 14 V ATX- (R1-15) - GND (R1-20) W - BR AVC-LAN communication signal Turn ignition switch to ACC 2 to 3 V R- (R1-18) - GND (R1-20) W - BR Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output L- (R1-19) - GND (R1-20) G - BR Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output GND (R1-20) - Body ground BR - Body ground Ground Always Below 1 V SWG (R5-6) - GND (R1-20) W-R - BR Steering pad switch ground Always Below 1 V SW1 (R5-7) - GND (R1-20) V-W - BR Steering pad switch signal Steering pad switch not operated
--> SEEK+ switch pushed
--> SEEK- switch pushed
--> VOL+ switch pushed
--> VOL-switch pushed4 V or more
--> Approx. 0.5 V
--> Approx. 0.9 V
--> Approx. 2.0 V
--> Approx. 3.4 VSW2 (R5-8) - GND (R1-20) Y-B - BR Steering pad switch signal Steering pad switch not operated --> MODE switch pushed 4V or more --> Below 2.5 V AR1 (R5-15) - GND (R1-20) G - BR Sound signal (Right) External device is playing (When stereo jack is used) A waveform synchronized with sounds is output ASGN (R5-16) - GND (R1-20) Shielded - BR Shield ground Always Below 1 V AL1 (R5-17) - GND (R1-20) R - BR Sound signal (Left) External device is playing (When stereo jack is used) A waveform synchronized with sounds is output AUX1 (R5-19) - GND (R1-20) L - BR External device connection detection signal External device is connected Below 1 V CSLD (R4-1) - Body ground Shielded - Body ground Shielded ground Always Below 1 V CDR+ (R4-2) - GND (R1-20) ((1)) B - BR Sound signal from RSE RSE system is playing A waveform synchronized with sounds is output CDR- (R4-3) - GND (R1-20) ((1)) W - BR Sound signal from RSE RSE system is playing A waveform synchronized with sounds is output CDL+ (R4-4) - GND (R1-20) ((1)) R - BR Sound signal from RSE RSE system is playing A waveform synchronized with sounds is output CDL- (R4-5) - GND (R1-20) ((1)) G - BR Sound signal from RSE RSE system is playing A waveform synchronized with sounds is output MUTE (R4-6) - GND (R1-20) ((1)) V - BR MUTE signal from RSE RSE system is playing --> changing Above 3.5 V --> Below 1 V TXM+ (R4-9) - GND (R1-20) ((1)) R - BR AVC-LAN communication signal Turn ignition switch to ACC 2 to 3 V TXM- (R4-10) - GND (R1-20) ((1)) G - BR AVC-LAN communication signal Turn ignition switch to ACC 2 to 3 V (1) With Rear Seat Entertainment System - RADIO RECEIVER (6 SPEAKER SYSTEM)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

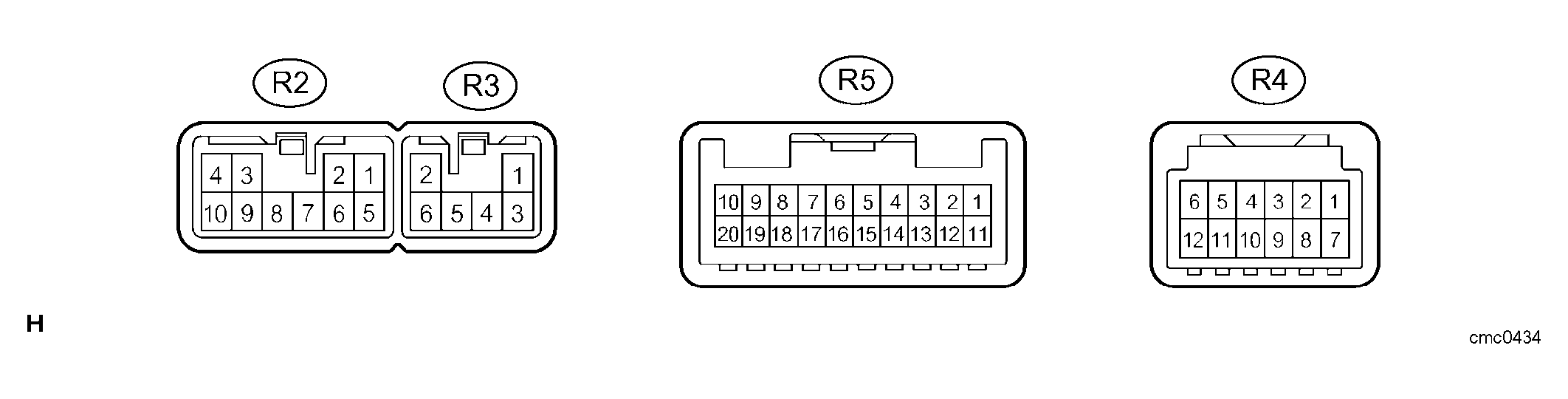

TERMINAL DESCRIPTION AND SPECIFICATIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specification FR+ (R2-1) - GND (R2-7) LG - BR Sound signal (Front Right) Audio system is playing A waveform synchronized with sounds is output FL+ (R2-2) - GND (R2-7) P - BR Sound signal (Front Left) Audio system is playing A waveform synchronized with sounds is output ACC (R2-3) - GND (R2-7) GR - BR Accessory (ON) Turn ignition switch OFF --> ACC Below 1 V --> 10 to 14 V +B (R2-4) - GND (R2-7) L-Y - BR Battery Always 10 to 14 V FR- (R2-5) - GND (R2-7) L - BR Sound signal (Front Right) Audio system is playing A waveform synchronized with sounds is output FL- (R2-6) - GND (R2-7) V - BR Sound signal (Front Left) Audio system is playing A waveform synchronized with sounds is output GND (R2-7) - Body ground BR - Body ground Ground Always Below 1 V ANT (R2-6) - GND (R2-7) B - BR Power source of antenna Radio switch ON and AM or FM 10 to 14 V ILL+ (R2-10) - GND (R2-7) G - BR Illumination signal Light control switch OFF --> TAIL or HEAD Below 1 V --> 10 to 14 V RR+ (R3-1) - GND (R2-7) R - BR Sound signal (Rear Right) Audio system is playing A waveform synchronized with sounds is output RL+ (R3-2) - GND (R2-7) B - BR Sound signal (Rear Left) Audio system is playing A waveform synchronized with sounds is output RR- (R3-3) - GND (R2-7) W - BR Sound signal (Rear Right) Audio system is playing A waveform synchronized with sounds is output ILL- (R3-5) - GND (R2-7) W-G - BR Illumination (rheostat) signal Light control switch OFF --> TAIL or HEAD Below 1 V --> Pulse generation RL- (R3-6) - GND (R2-7) Y - BR Sound signal (Rear Left) Audio system is playing A waveform synchronized with sounds is output SPD (R5-3) - GND (R2-7) V-R - BR Speed signal from combination meter Turn ignition switch to ON.
Turn drive wheels slowly.Pulse generation SWG (R5-6) - GND (R2-7) W-R - BR Steering pad switch ground Always Below 1 V SW1 (R5-7) - GND (R2-7) V-W - BR Steering pad switch signal Steering pad switch not operated
--> SEEK+ switch pushed
--> SEEK- switch pushed
--> VOL+ switch pushed
--> VOL-switch pushed4 V or more
--> Approx. 0.5 V
--> Approx. 0.9 V
--> Approx. 2.0 V
--> Approx. 3.4 VSW2 (R5-8) - GND (R2-7) Y-B - BR Steering pad switch signal Steering pad switch not operated --> MODE switch pushed 4V or more --> Below 2.5 V AR1 (R5-15) - GND (R2-7) G - BR Sound signal (Right) External device is playing (When stereo jack is used) A waveform synchronized with sounds is output ASGN (R5-16) - GND (R2-7) Shielded - BR Shield ground Always Below 1 V AL1 (R5-17) - GND (R2-7) R - BR Sound signal (Left) External device is playing (When stereo jack is used) A waveform synchronized with sounds is output AUX1 (R5-19) - GND (R2-7) L - BR External device connection detection signal External device is connected Below 1 V CSLD (R4-1) - Body ground Shielded - Body ground Shield ground Always Below 1 V CDR+ (R4-2) - GND (R2-7) ((1)) B - BR Sound signal from RSE RSE system is playing A waveform synchronized with sounds is output CDR- (R4-3) - GND (R2-7) ((1)) W - BR Sound signal from RSE RSE system is playing A waveform synchronized with sounds is output CDL+ (R4-4) - GND (R2-7) ((1)) R - BR Sound signal from RSE RSE system is playing A waveform synchronized with sounds is output CDL- (R4-5) - GND (R2-7) ((1)) G - BR Sound signal from RSE RSE system is playing A waveform synchronized with sounds is output MUTE (R4-6) - GND (R2-7) ((1)) V - BR MUTE signal from RSE RSE system is playing --> changing Above 3.5 V --> Below 1 V TXM+ (R4-9) - GND (R2-7) ((1)) R - BR AVC-LAN communication signal Turn ignition switch to ACC 2 to 3 V TXM- (R4-10) - GND (R2-7) ((1)) G - BR AVC-LAN communication signal Turn ignition switch to ACC 2 to 3 V (1) With Rear Seat Entertainment System - STEREO COMPONENT AMPLIFIER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

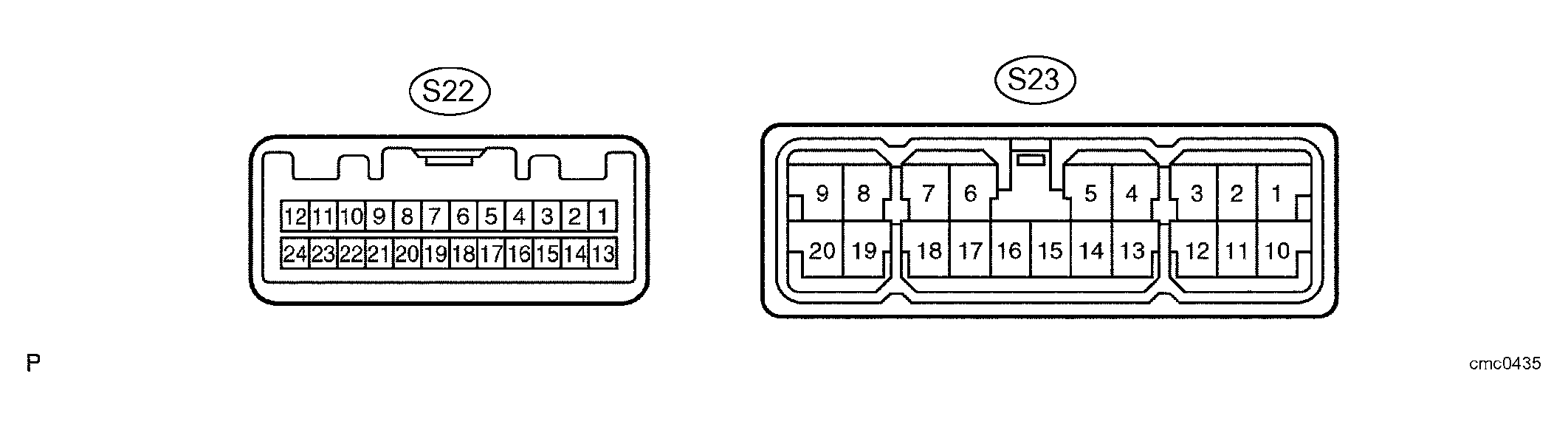

TERMINAL DESCRIPTION AND SPECIFICATIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specification MUTE (S22-1) - GND2 (S23-15) W-R - BR Mute signal from radio receiver Audio system is playing --> Changing Above 3.5 V --> Below 1 V L- (S22-2) - GND2 (S23-15) G - BR Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output L+ (S22-3) - GND2 (S23-15) R - BR Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output R- (S22-4) - GND2 (S23-15) W - BR Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output R+ (S22-5) - GND2 (S23-15) B - BR Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output SLD (S22-6) - Body ground Shielded - Body ground Shielded ground Always Below 1 V TX- (S22-7) - GND2 (S23-15) W - BR AVC-LAN communication signal Turn ignition switch to ACC 2 to 3 V TX+ (S22-8) - GND2 (S23-15) B - BR AVC-LAN communication signal Turn ignition switch to ACC 2 to 3 V SPD (S22-11) - GND2 (S23-15) V-R - BR Speed signal from combination meter Turn ignition switch to ON.
Turn drive wheels slowly.Pulse generation ACC (S22-12) - GND2 (S23-15) GR - BR Accessory (ON) Turn ignition switch OFF --> ACC Below 1 V --> 10 to 14 V +B (S23-1) - GND2 (S23-15) W-L - BR Battery Always 10 to 14 V DRS+ (S23-2) - GND2 (S23-15) G-W - BR Sound signal (Rear No. 2 Speaker) Audio system is playing A waveform synchronized with sounds is output CTR+ (S23-3) - GND2 (S23-15) G - BR Sound signal (Front Center) Audio system is playing A waveform synchronized with sounds is output RL+ (S23-4) - GND2 (S23-15) B - BR Sound signal (Rear Left) Audio system is playing A waveform synchronized with sounds is output RR+ (S23-5) - GND2 (S23-15) R - BR Sound signal (Rear Right) Audio system is playing A waveform synchronized with sounds is output FL+ (S23-6) - GND2 (S23-15) P - BR Sound signal (Front Left) Audio system is playing A waveform synchronized with sounds is output FR+ (S23-7) - GND2 (S23-15) LG - BR Sound signal (Front Right) Audio system is playing A waveform synchronized with sounds is output WFL+ (S23-8) - GND2 (S23-15) BR - BR Sound signal (Woofer Box) Audio system is playing A waveform synchronized with sounds is output WFR+ (S23-9) - GND2 (S23-15) L-B - BR Sound signal (Woofer Box) Audio system is playing A waveform synchronized with sounds is output +B2 (S23-10) - GND2 (S23-15) W-L - BR Battery Always 10 to 14 V DRS- (S23-11) - GND2 (S23-15) BR - BR Sound signal (Rear No. 2 Speaker) Audio system is playing A waveform synchronized with sounds is output CTR- (S23-12) - GND2 (S23-15) G-B - BR Sound signal (Front Center) Audio system is playing A waveform synchronized with sounds is output RL- (S23-13) - GND2 (S23-15) Y - BR Sound signal (Rear Left) Audio system is playing A waveform synchronized with sounds is output RR- (S23-14) - GND2 (S23-15) W - BR Sound signal (Rear Right) Audio system is playing A waveform synchronized with sounds is output GND2 (S23-15) - Body ground BR - Body ground Ground Always Below 1 V GND (S23-16) - Body ground BR - Body ground Ground Always Below 1 V FL- (S23-17) - GND2 (S23-15) V - BR Sound signal (Front Left) Audio system is playing A waveform synchronized with sounds is output FR- (S23-18) - GND2 (S23-15) L - BR Sound signal (Front Right) Audio system is playing A waveform synchronized with sounds is output WFL- (S23-19) - GND2 (S23-15) G-W - BR Sound signal (Woofer Box) Audio system is playing A waveform synchronized with sounds is output WFR- (S23-20) - GND2 (S23-15) L-R - BR Sound signal (Woofer Box) Audio system is playing A waveform synchronized with sounds is output - TELEVISION DISPLAY ASSEMBLY (SEE TELEVISION DISPLAY ASSEMBLY COMMUNICATION ERROR )
