VSC Warning Light Remains ON: Wiring Diagram

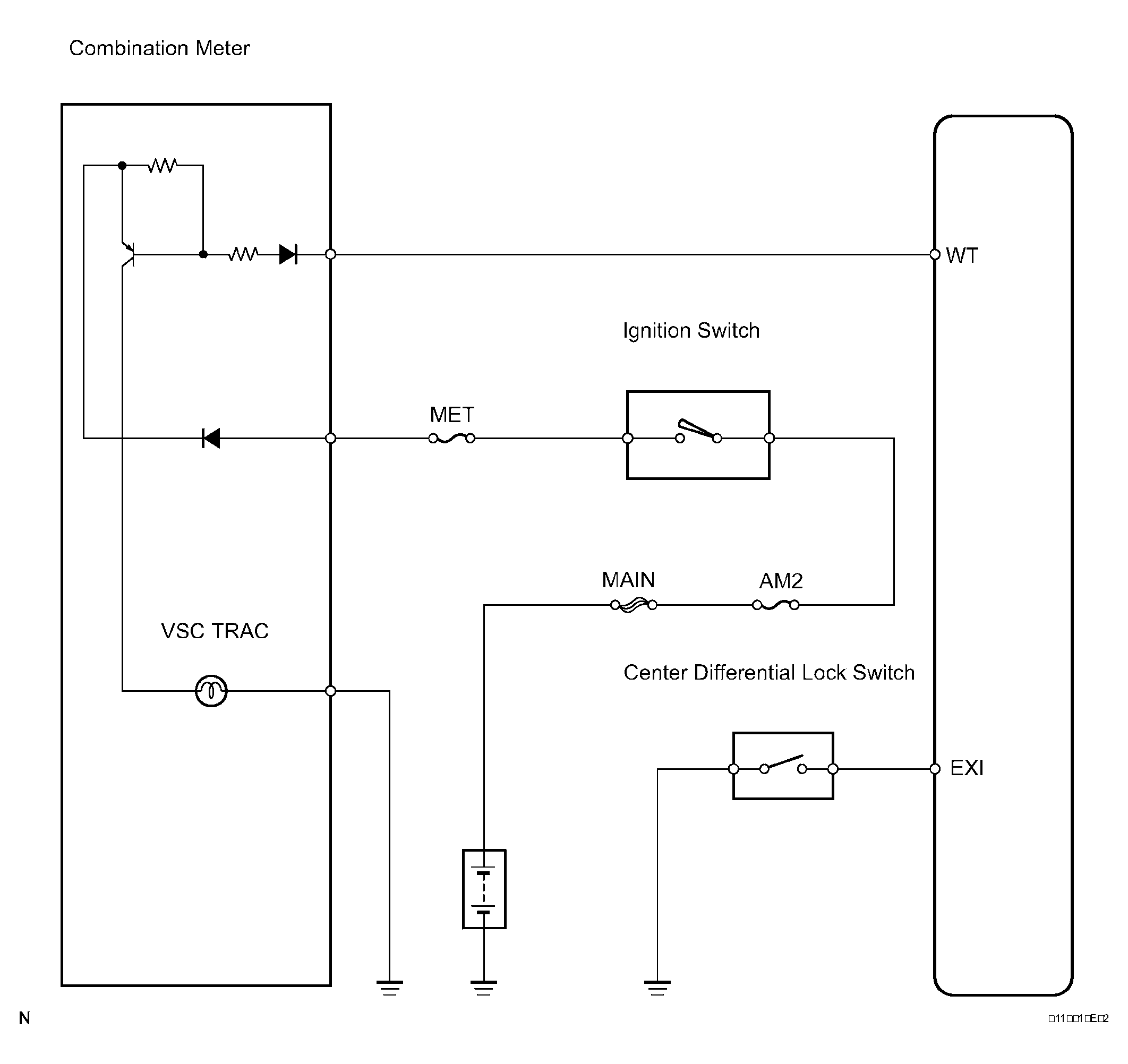

Fig 1: VSC Warning Light Remains On Wiring Diagram
G04063919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSPECT SKID CONTROL ECU CONNECTOR
    1. Check that each ECU connector is properly installed.

    OK : Each ECU connector is properly installed.

    NG : CONNECT CONNECTOR TO ECU CORRECTLY

    OK : Go To Next Step

  2. CHECK FOR DTC
    1. Turn the ignition switch ON.
    2. Check that the VSC TRAC warning light illuminates.
    3. Check if the same DTCs are recorded.

    Result:

    RESULT REFERENCE

    Result Proceed to
    DTC is not output A
    DTC is output B

    B : REPAIR CIRCUIT INDICATED BY OUTPUT DTC

    A : Go To Next Step

  3. CHECK VSC TRAC WARNING LIGHT REMAIN ON

    NG : END

    OK : Go To Next Step

  4. INSPECT BATTERY

    Result:

    RESULT REFERENCE

    Result Proceed to
    Battery voltage is OK (when using intelligent tester) A
    Battery voltage is OK (when not using intelligent tester) B
    Battery voltage is NG C

    B : Go to step  6

    C : RECHARGE OR REPLACE BATTERY

    A : Go To Next Step

  5. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (VSC TRAC WARNING LIGHT)
    1. Select the ACTIVE TEST, generate a control command, and then check that the VSC TRAC warning light operates.

    Skid control ECU assembly

    ACTIVE TEST REFERENCE CHART

    Item Vehicle Condition / Test Details Diagnostic Note
    VSC WARN LIGHT Turn VSC warning light ON / OFF Observe combination meter

    OK : VSC TRAC warning light on or off.

    OK : REPLACE SKID CONTROL ECU ASSEMBLY

    NG : Go To Next Step

  6. CHECK VSC TRAC WARNING LIGHT
    1. Disconnect the A40 ECU connector.
    2. Turn the ignition switch ON.
    3. Using a service wire, connect terminal WA to GND3 or GND4 of the A40 ECU connector. Check the VSC TRAC warning light.

      OK : VSC TRAC warning light turns off.

    4. Turn the ignition switch OFF.
    5. Remove the service wire.
    6. Turn the ignition switch ON. Check the VSC TRAC warning light.

    OK : VSC TRAC warning light illuminates.

    OK : REPLACE SKID CONTROL ECU ASSEMBLY

    NG : Go To Next Step

  7. CHECK WIRE HARNESS (SKID CONTROL ECU ASSEMBLY - COMBINATION METER)

    OK : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : REPLACE COMBINATION METER
