Power Seat Switch: Inspection

  1. INSPECT FRONT POWER SEAT SWITCH LH
    1. Measure the resistance between the specified terminals when each switch is operated.

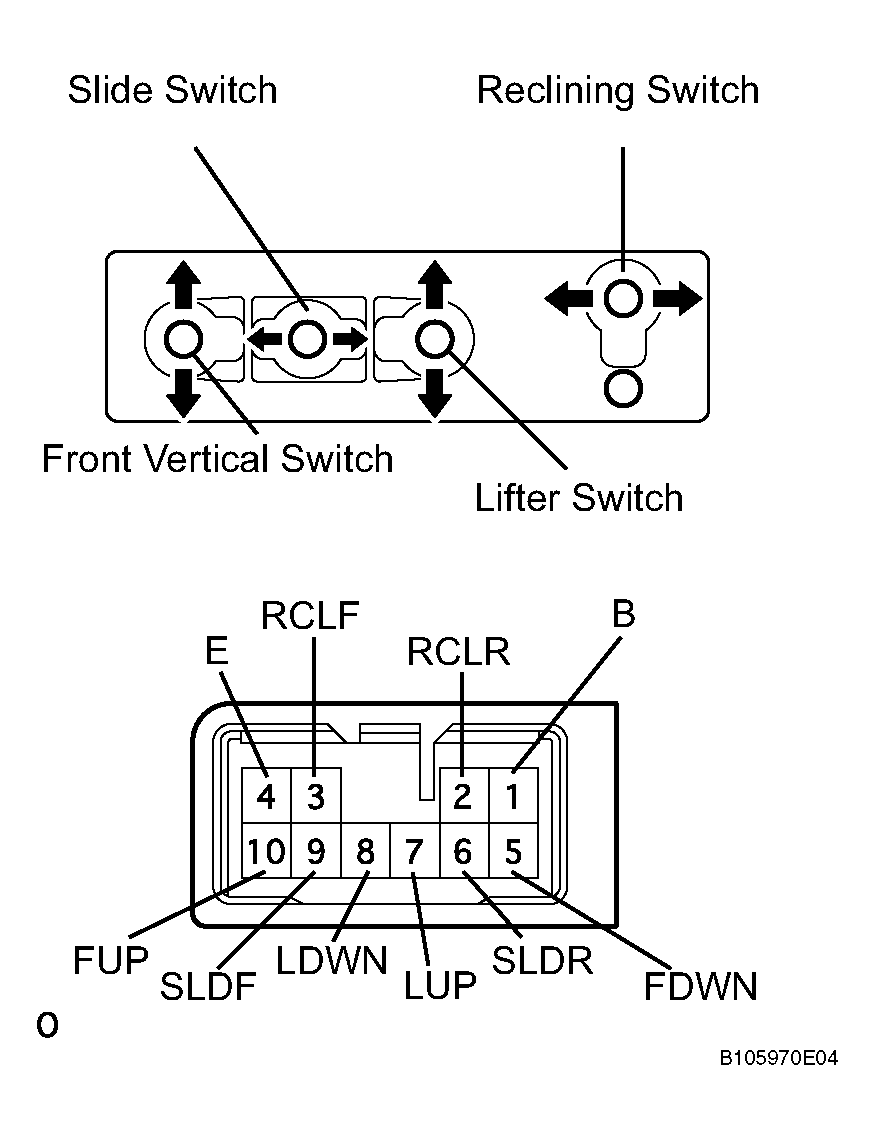

    Fig 1: Identifying Front Power Seat Switch LH Connector Terminals
    G04051233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard resistance (Slide switch)

    TESTER CONDITION SPECIFIED CONDITION CHART

    Tester Connection Switch Condition Specified Condition
    1 (B) - 9 (SLDF) FRONT Below 1 Ω
    4 (E) - 6 (SLDR) FRONT Below 1 Ω
    1 (B) - 6 (SLDR) FRONT 10 kΩ or higher
    4 (E) - 9 (SLDF) FRONT 10 kΩ or higher
    4 (E) - 6 (SLDR) OFF Below 1 Ω
    4 (E) - 9 (SLDF) OFF Below 1 Ω
    1 (B) - 6 (SLDR) OFF 10 kΩ or higher
    1 (B) - 9 (SLDF) OFF 10 kΩ or higher
    1 (B) - 6 (SLDR) REAR Below 1 Ω
    4 (E) - 9 (SLDF) REAR Below 1 Ω
    1 (B) - 9 (SLDF) REAR 10 kΩ or higher
    4 (E) - 6 (SLDR) REAR 10 kΩ or higher

    Standard resistance (Front vertical switch)

    TESTER CONDITION SPECIFIED CONDITION CHART

    Tester Connection Switch Condition Specified Condition
    1 (B) - 10 (FUP) UP Below 1 Ω
    4 (E) - 5 (FDWN) UP Below 1 Ω
    1 (B) - 5 (FDWN) UP 10 kΩ or higher
    4 (E) - 10 (FUP) UP 10 kΩ or higher
    4 (E) - 5 (FDWN) OFF Below 1 Ω
    4 (E) - 10 (FUP) OFF Below 1 Ω
    1 (B) - 5 (FDWN) OFF 10 kΩ or higher
    1 (B) - 10 (FUP) OFF 10 kΩ or higher
    1 (B) - 5 (FDWN) DOWN Below 1 Ω
    4 (E) - 10 (FUP) DOWN Below 1 Ω
    1 (B) - 10 (FUP) DOWN 10 kΩ or higher
    Tester Connection Switch Condition Specified Condition
    4 (E) - 5 (FDWN) DOWN 10 kΩ or higher

    Standard resistance (Lifter switch)

    TESTER CONDITION SPECIFIED CONDITION CHART

    Tester Connection Switch Condition Specified Condition
    1 (B) - 7 (LUP) UP Below 1 Ω
    4 (E) - 8 (LDWN) UP Below 1 Ω
    1 (B) - 8 (LDWN) UP 10 kΩ or higher
    4 (E) - 7 (LUP) UP 10 kΩ or higher
    4 (E) - 7 (LUP) OFF Below 1 Ω
    4 (E) - 8 (LDWN) OFF Below 1 Ω
    1 (B) - 7 (LUP) OFF 10 kΩ or higher
    1 (B) - 8 (LDWN) OFF 10 kΩ or higher
    1 (B) - 8 (LDWN) DOWN Below 1 Ω
    4 (E) - 7 (LUP) DOWN Below 1 Ω
    1 (B) - 7 (LUP) DOWN 10 kΩ or higher
    4 (E) - 8 (LDWN) DOWN 10 kΩ or higher

    Standard resistance (Reclining switch)

    TESTER CONDITION SPECIFIED CONDITION CHART

    Tester Connection Switch Condition Specified Condition
    1 (B) - 3 (RCLF) FRONT Below 1 Ω
    4 (E) - 2 (RCLR) FRONT Below 1 Ω
    1 (B) - 2 (RCLR) FRONT 10 kΩ or higher
    4 (E) - 3 (RCLF) FRONT 10 kΩ or higher
    4 (E) - 2 (RCLR) OFF Below 1 Ω
    4 (E) - 3 (RCLF) OFF Below 1 Ω
    1 (B) - 3 (RCLF) OFF 10 kΩ or higher
    1 (B) - 2 (RCLR) OFF 10 kΩ or higher
    1 (B) - 2 (RCLR) REAR Below 1 Ω
    4 (E) - 3 (RCLF) REAR Below 1 Ω
    1 (B) - 3 (RCLF) REAR 10 kΩ or higher
    4 (E) - 2 (RCLR) REAR 10 kΩ or higher

    If the result is not as specified, replace switch.

  2. INSPECT FRONT POWER SEAT SWITCH RH
    1. Measure the resistance between the specified terminals when each switch is operated.

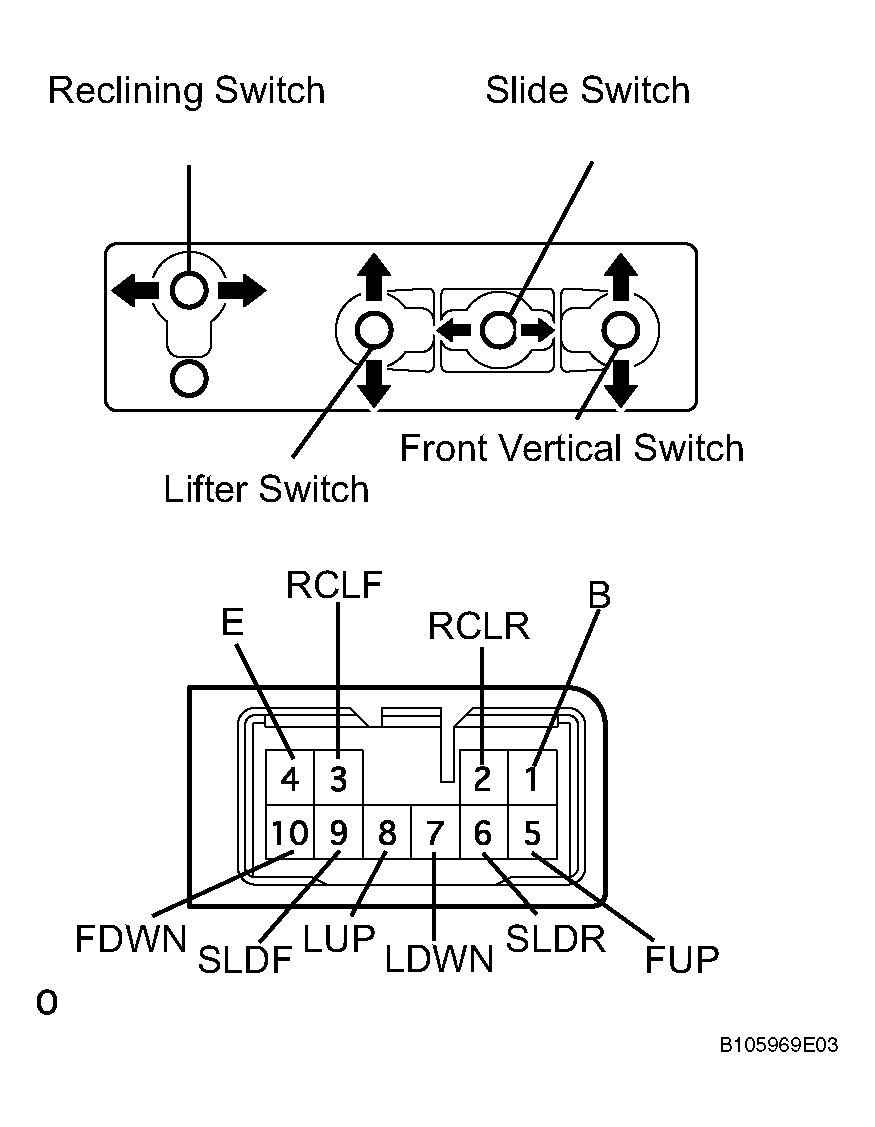

    Fig 2: Identifying Front Power Seat Switch RH Connector Terminals
    G04051234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard resistance (Slide switch)

    TESTER CONDITION SPECIFIED CONDITION CHART

    Tester Connection Switch Condition Specified Condition
    1 (B) - 9 (SLDF) FRONT Below 1 Ω
    4 (E) - 6 (SLDR) FRONT Below 1 Ω
    1 (B) - 6 (SLDR) FRONT 10 kΩ or higher
    4 (E) - 9 (SLDF) FRONT 10 kΩ or higher
    4 (E) - 6 (SLDR) OFF Below 1 Ω
    4 (E) - 9 (SLDF) OFF Below 1 Ω
    1 (B) - 6 (SLDR) OFF 10 kΩ or higher
    1 (B) - 9 (SLDF) OFF 10 kΩ or higher
    1 (B) - 6 (SLDR) REAR Below 1 Ω
    4 (E) - 9 (SLDF) REAR Below 1 Ω
    1 (B) - 9 (SLDF) REAR 10 kΩ or higher
    4 (E) - 6 (SLDR) REAR 10 kΩ or higher

    Standard resistance (Front vertical switch)

    TESTER CONDITION SPECIFIED CONDITION CHART

    Tester Connection Switch Condition Specified Condition
    1 (B) - 10 (FUP) UP Below 1 Ω
    4 (E) - 5 (FDWN) UP Below 1 Ω
    1 (B) - 5 (FDWN) UP 10 kΩ or higher
    4 (E) - 10 (FUP) UP 10 kΩ or higher
    4 (E) - 5 (FDWN) OFF Below 1 Ω
    4 (E) - 10 (FUP) OFF Below 1 Ω
    1 (B) - 5 (FDWN) OFF 10 kΩ or higher
    1 (B) - 10 (FUP) OFF 10 kΩ or higher
    1 (B) - 5 (FDWN) DOWN Below 1 Ω
    4 (E) - 10 (FUP) DOWN Below 1 Ω
    1 (B) - 10 (FUP) DOWN 10 kΩ or higher
    4 (E) - 5 (FDWN) DOWN 10 kΩ or higher

    Standard resistance (Lifter switch)

    TESTER CONDITION SPECIFIED CONDITION CHART

    Tester Connection Switch Condition Specified Condition
    1 (B) - 7 (LUP) UP Below 1 Ω
    4 (E) - 8 (LDWN) UP Below 1 Ω
    1 (B) - 8 (LDWN) UP 10 kΩ or higher
    4 (E) - 7 (LUP) UP 10 kΩ or higher
    4 (E) - 7 (LUP) OFF Below 1 Ω
    4 (E) - 8 (LDWN) OFF Below 1 Ω
    1 (B) - 7 (LUP) OFF 10 kΩ or higher
    1 (B) - 8 (LDWN) OFF 10 kΩ or higher
    1 (B) - 8 (LDWN) DOWN Below 1 Ω
    4 (E) - 7 (LUP) DOWN Below 1 Ω
    1 (B) - 7 (LUP) DOWN 10 kΩ or higher
    4 (E) - 8 (LDWN) DOWN 10 kΩ or higher

    Standard resistance (Reclining switch)

    TESTER CONDITION SPECIFIED CONDITION CHART

    Tester Connection Switch Condition Specified Condition
    1 (B) - 3 (RCLF) FRONT Below 1 Ω
    Tester Connection Switch Condition Specified Condition
    4 (E) - 2 (RCLR) FRONT Below 1 Ω
    1 (B) - 2 (RCLR) FRONT 10 kΩ or higher
    4 (E) - 3 (RCLF) FRONT 10 kΩ or higher
    4 (E) - 2 (RCLR) OFF Below 1 Ω
    4 (E) - 3 (RCLF) OFF Below 1 Ω
    1 (B) - 3 (RCLF) OFF 10 kΩ or higher
    1 (B) - 2 (RCLR) OFF 10 kΩ or higher
    1 (B) - 2 (RCLR) REAR Below 1 Ω
    4 (E) - 3 (RCLF) REAR Below 1 Ω
    1 (B) - 3 (RCLF) REAR 10 kΩ or higher
    4 (E) - 2 (RCLR) REAR 10 kΩ or higher

    If the result is not as specified, replace switch.
