Steering Pad Switch: Installation

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STEERING PAD SWITCH LH
    1. Hold the connector cover and connect the switch to the steering pad switch cable.

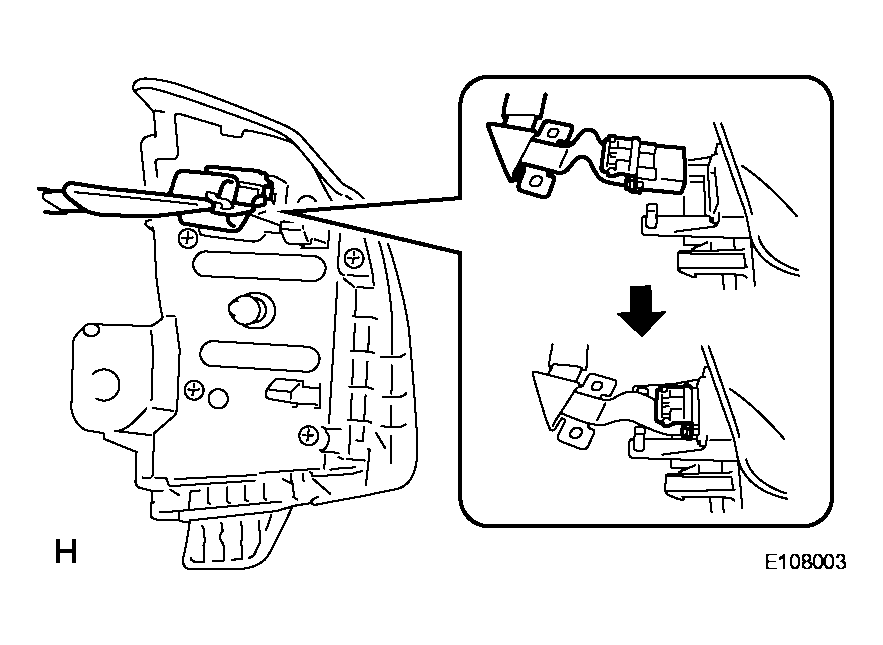

      Fig 1: Identifying Switch To Steering Pad Switch Cable
      G04022270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 claws and close the connector cover.

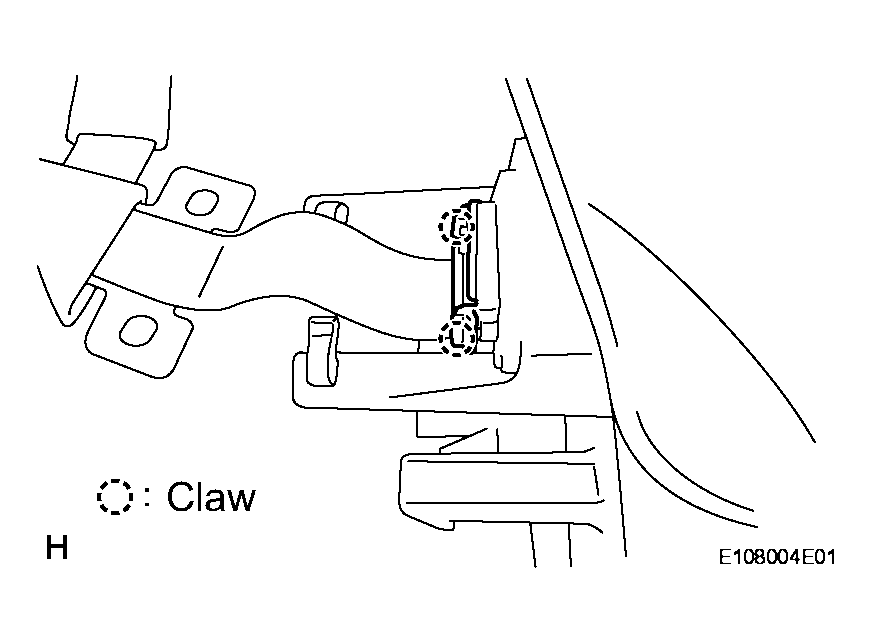

      Fig 2: Attaching 2 Claws And Close Connector Cover
      G04022271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the steering pad switch cable's tab to the switch, as shown in the illustration.

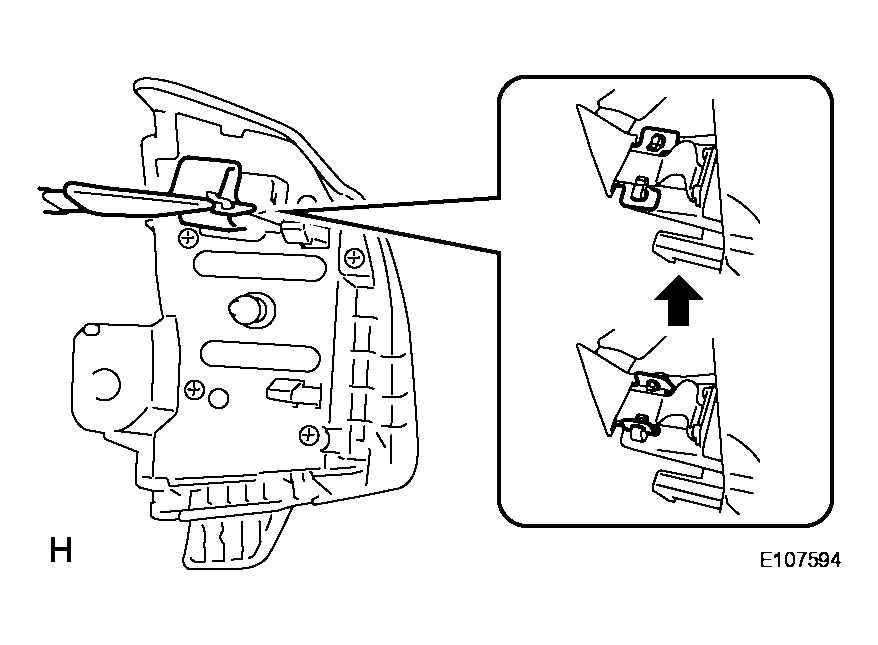

      Fig 3: Identifying Steering Pad Switch Cable'S Tab To Switch
      G04022272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the clip and 2 claws to install the switch.
    5. Install the screw.
    6. Connect the connectors.

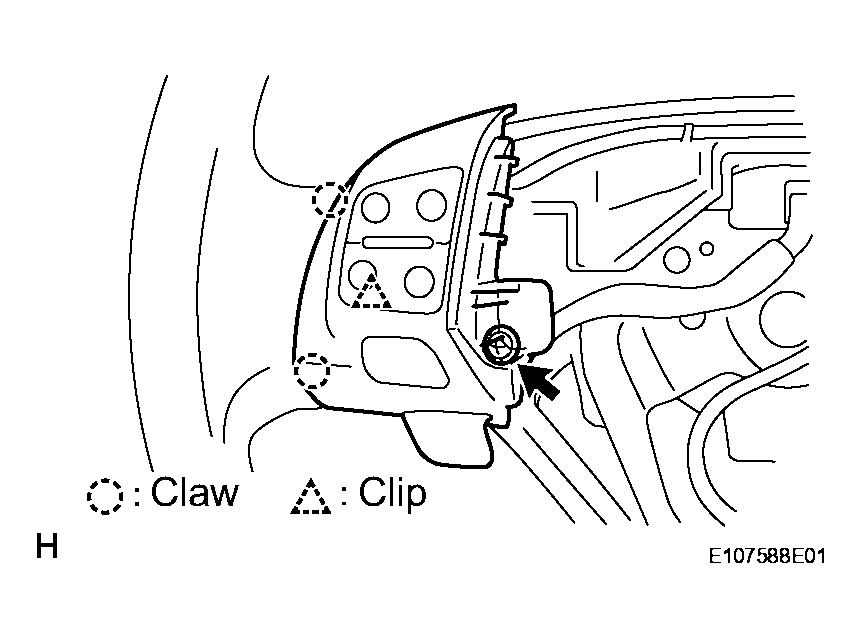

      Fig 4: Attaching Clip And 2 Claws To Install Switch
      G04022273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL STEERING PAD SWITCH RH
    1. Hold the connector cover and connect the switch to the steering pad switch cable.

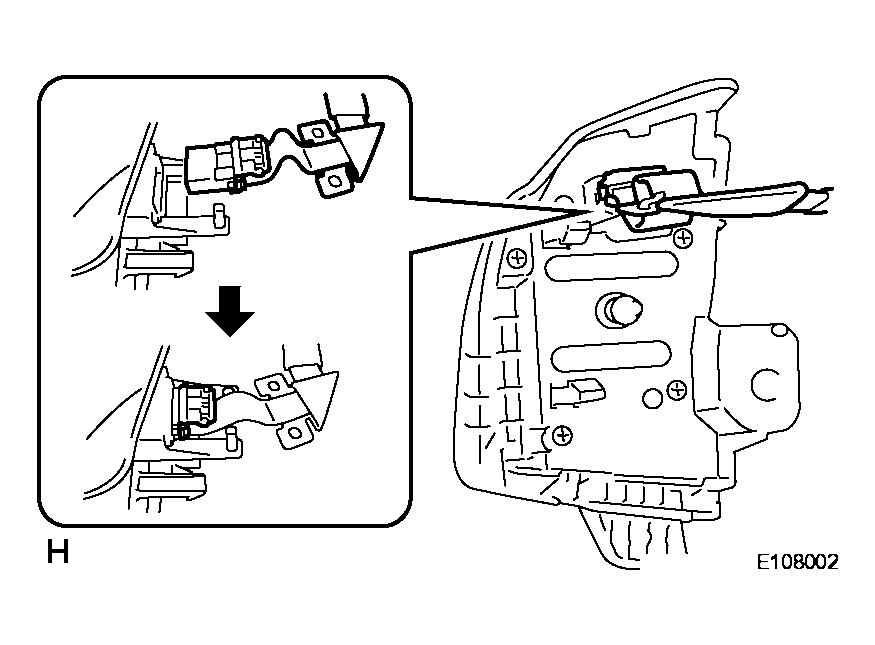

      Fig 5: Identifying Switch To Steering Pad Switch Cable
      G04022274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 claws and close the connector cover.

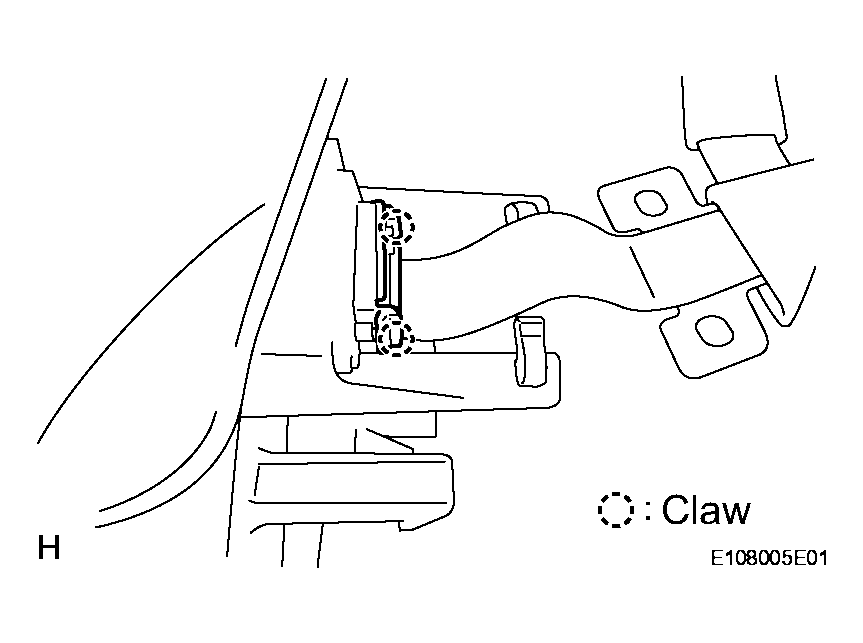

      Fig 6: Attaching 2 Claws And Close Connector Cover
      G04022275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the steering pad switch cable's tab to the switch, as shown in the illustration.

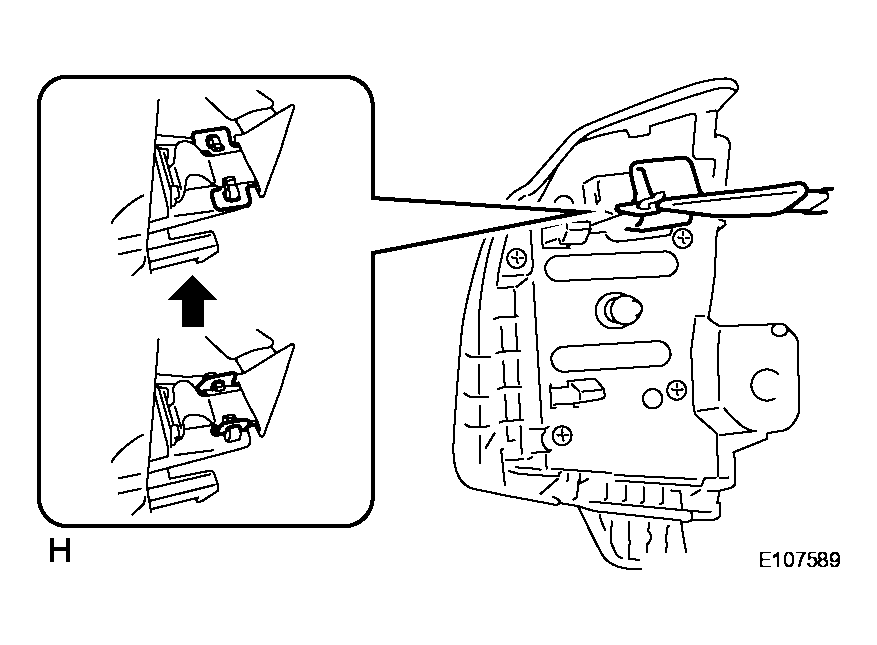

      Fig 7: Attaching Steering Pad Switch Cable'S Tab To Switch
      G04022276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the clip and 2 claws to install the switch.
    5. Install the screw.
  3. INSTALL STEERING WHEEL PAD (See  INSTALLATION  )
  4. INSTALL NO. 2 STEERING WHEEL COVER LOWER
  5. INSTALL NO. 3 STEERING WHEEL COVER LOWER
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  8. CHECK SRS WARNING LIGHT
    1. Check SRS warning light (See PRECAUTION ).
      Fig 8: Identifying SRS Warning Light
      G04022277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
