Network Gateway Ecu: Installation

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NETWORK GATEWAY ECU
    1. Install the ECU.
    2. Attach the 2 claws to install the cover.
    3. Connect the connector.
  2. INSTALL GLOVE COMPARTMENT DOOR SUBASSEMBLY (See  INSTALLATION  )
  3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )

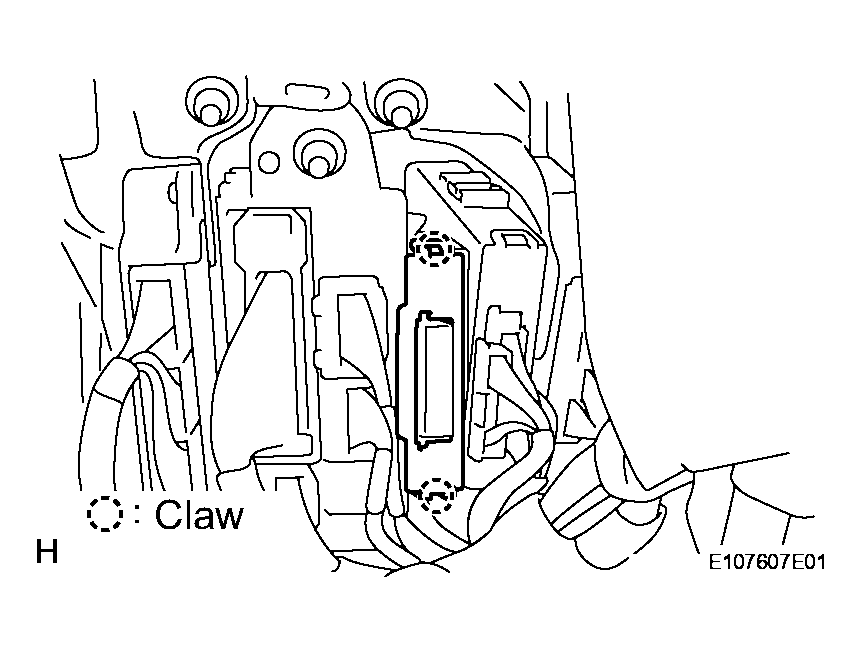

    Fig 1: Identifying Network Gateway ECU
    G04022258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL INSTRUMENT SIDE PANEL RH (See  INSTALLATION  )
  6. INSTALL FRONT DOOR OPENING TRIM COVER RH (See  INSTALLATION  )
  7. INSTALL FRONT DOOR SCUFF PLATE RH (See  INSTALLATION  )
  8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See  INSTALLATION  )
  9. INSTALL CONSOLE UPPER PANEL ASSEMBLY (See  INSTALLATION  )
  10. INSTALL FRONT CONSOLE UPPER PANEL GARNISH (See  INSTALLATION  )
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  13. CHECK SRS WARNING LIGHT
    1. Check SRS warning light (See PRECAUTION ).
