Speed Sensor: Installation

  1. INSTALL TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
    1. Coat a new O-ring with ATF WS and install it to the transmission revolution sensor.
    2. Install the transmission revolution sensor with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the transmission revolution sensor connector.

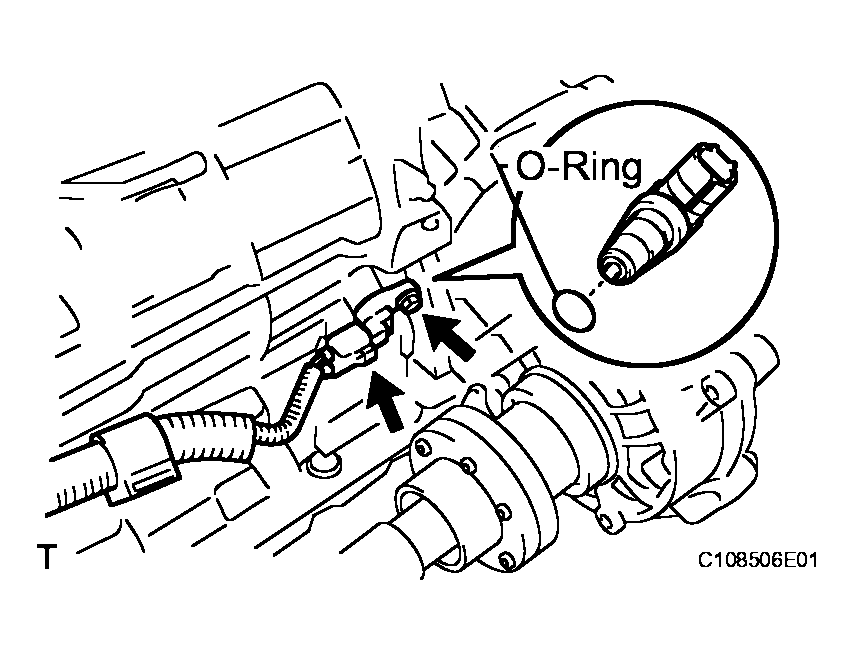

      Fig 1: Identifying Transmission Revolution Sensor (SP2 Sensor)
      G04019273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TRANSMISSION REVOLUTION SENSOR (NT SENSOR)
    1. Coat a new O-ring with ATF WS and install it to the transmission revolution sensor.
    2. Install the transmission revolution sensor with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the transmission revolution sensor connector.

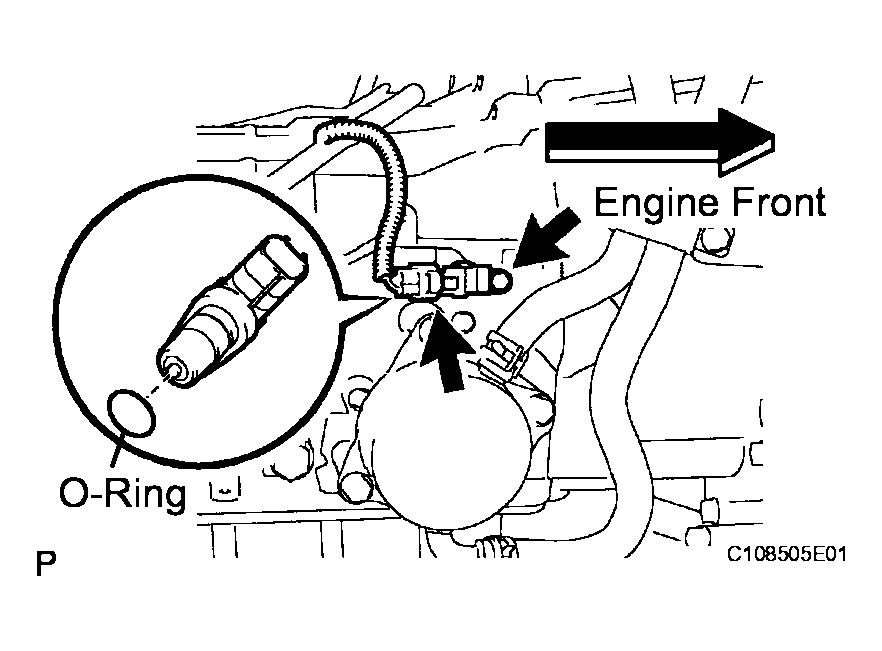

      Fig 2: Identifying Transmission Revolution Sensor (NT Sensor)
      G04019274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
